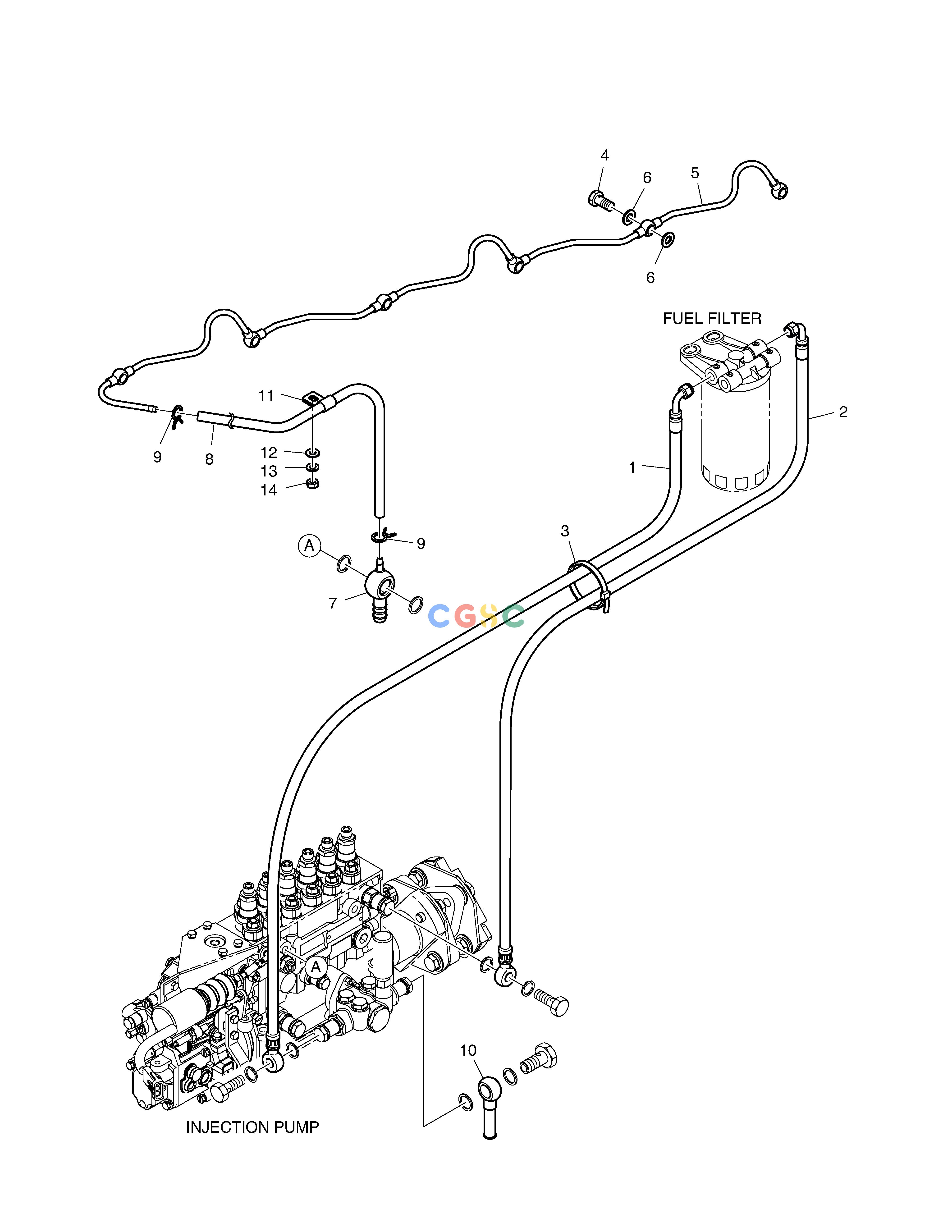

斗山零件查询FUEL PIPE SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
201 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
420103-00108
|
[1] |
HOSE ASSY,FUEL;DE08TIS
|
|
| 10. |
65.12301-5022
|
[1] |
PIPE;FUEL(RETURN)
|
|
| 11. |
65.97401-0205
|
[1] |
CLIP
|
|
| 12. |
06.15010-2311
|
[1] |
WASHER
|
|
| 13. |
06.16731-2107
|
[1] |
WASHER
|
|
| 14. |
06.11063-8214
|
[1] |
. NUT
|
|
| 2. |
420103-00109
|
[2] |
HOSE ASSY,FUEL;DE08TIS
|
|
| 3. |
65.97460-0001
|
[1] |
BAND;TENSION
|
|
| 4. |
120703-00016
|
[6] |
SCREW,HOLLOW
|
|
| 5. |
65.12301-5095D
|
[1] |
PIPE;FUEL
|
|
| 6. |
401109-00106
|
[12] |
SEALRING
|
|
| 7. |
430228-00022
|
[1] |
UNION,DOUBLE BANJO
|
|
| 8. |
420103-00212
|
[1] |
HOSE,FUEL
|
|
| 9. |
65.97401-0089
|
[2] |
CLIP
|
|
