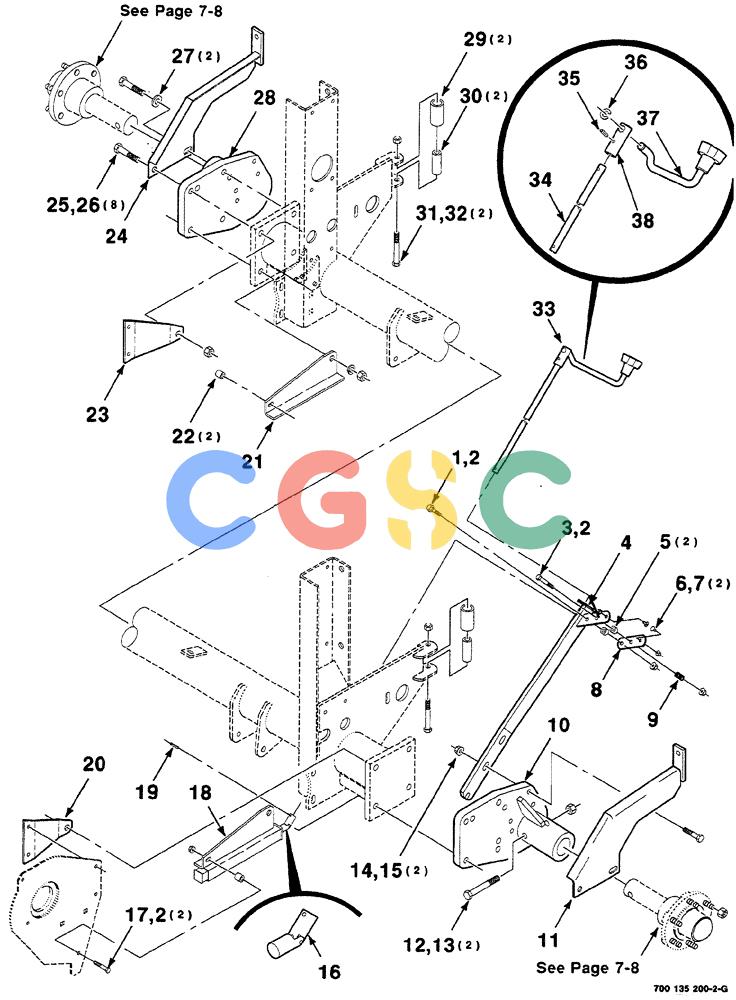

| 1. |
700711084
|
[1] |
BOLT
|
CAS
3/8"-16 x 1-1/2", hex. flange screw, GR8
|
| 2. |
232-5316
|
[4] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8"-16, hex. flange top lock, GR/G Superseded by part number: 86521609
|
| 3. |
413-636
|
[1] |
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
|
CAS
Superseded by part number: 88546, 72187212
|
| 4. |
700135372
|
[1] |
SUPPORT
|
HFI
WA
|
| 5. |
M42297
|
[2] |
SPACER
|
IH
|
| 6. |
412-48
|
[2] |
CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2
|
CAS
1/4"-20 x 1/2", round head square neck bolt Superseded by part number: 280700
|
| 7. |
1703354
|
[2] |
NUT
|
IH
1/4"-20, hex. flange top lock, GR/G
|
| 8. |
700150891
|
[1] |
PLATE
|
HFI
|
| 9. |
758342
|
[1] |
CABLE
|
CAS
compression Superseded by part number: CAS758342
|
| 10. |
700135840
|
[1] |
PLATE
|
HFI
WA, L.H., 16 inch
|
| 11. |
700150892
|
[1] |
SUPPORT
|
HFI
WA, L.H.
|
| 12. |
413-1072
|
[2] |
BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5
|
CAS
Superseded by part number: 280183
|
| 13. |
230-41110
|
[2] |
LOCK NUT,5/8"-11, GA
|
CAS
5/8"-11, hex. top lock, GR/B Superseded by part number: 85700693
|
| 14. |
700712882
|
[2] |
BOLT,Hex Flg, 1/2" - 13 x 2 1/4", Gr 8
|
CAS
1/2"-13 x 2-1/4", hex. flange screw, GR8
|
| 15. |
231-5348
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2"-13, hex. flange top lock, GR/G Superseded by part number: 86521610
|
| 16. |
700715754
|
[1] |
JOINT
|
CAS
universal Superseded by part number: 700728184
|
| 17. |
413-632
|
[2] |
BOLT,Hex, 3/8" - 16 x 2", Gr 5
|
CAS
Superseded by part number: 88436
|
| 18. |
700716093
|
[1] |
JACK
|
CAS
ASSY. includes: REF. 16 Superseded by part number: 87741929
|
| 19. |
38-11216
|
[1] |
LOCK PIN,3/16" x 1", Slotted
|
CAS
Superseded by part number: 118827
|
| 20. |
700135377
|
[1] |
SUPPORT
|
HFI
L.H. Superseded by part number: 700159597
|
| 21. |
700135374
|
[1] |
ANGLE
|
HFI
R.H.
|
| 22. |
6869382
|
[2] |
SPACER
|
HFI
|
| 23. |
700135378
|
[1] |
SUPPORT
|
HFI
R.H.
|
| 24. |
700135868
|
[1] |
SUPPORT
|
HFI
WA, R.H.
|
| 25. |
413-1048
|
[8] |
BOLT,Hex, 5/8" - 11 x 3", Gr 5
|
CAS
Superseded by part number: 87338
|
| 26. |
232-53110
|
[8] |
FLANGE NUT,Flg, 5/8"-11
|
CAS
5/8"-11, hex. flange top lock, GR/G Superseded by part number: 84180923
|
| 27. |
396-21066
|
[2] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
5/8" bolt size Superseded by part number: 87613283
|
| 28. |
700135841
|
[1] |
PLATE
|
HFI
WA, R.H., 16 inch
|
| 29. |
700132293
|
[2] |
TUBE,38.1 mm OD, 66 mm Length
|
HFI
roller Superseded by part number: 700155971
|
| 30. |
6250351
|
[2] |
SPACER
|
HFI
|
| 31. |
413-864
|
[2] |
BOLT,Hex, 1/2" - 13 x 4", Gr 5
|
CAS
1/2"-13 x 4", hex. cap screw Superseded by part number: 86505993
|
| 32. |
230-4118
|
[2] |
LOCK NUT,1/2"-13, GA
|
CAS
1/2"-13, hex. top lock, GR/B
|
| 33. |
700715760
|
[1] |
CRANK
|
CAS
ASSY. includes: REF. 34, 35, 36, 37 & 38
|
| 34. |
700132317
|
[1] |
CRANK
|
CAS
rod Superseded by part number: 700715760
|
| 35. |
435-7614
|
[1] |
GROOVED PIN,3/16" x 7/8", Type G
|
CAS
3/16" x 7/8", Type G
|
| 36. |
51200194
|
[1] |
RETAINER
|
CAS
RING
|
| 37. |
700715780
|
[1] |
HANDLE
|
CAS
Superseded by part number: 700715760
|
| 38. |
700132516
|
[1] |
TUBE
|
HFI
Superseded by part number: 700715760
|
