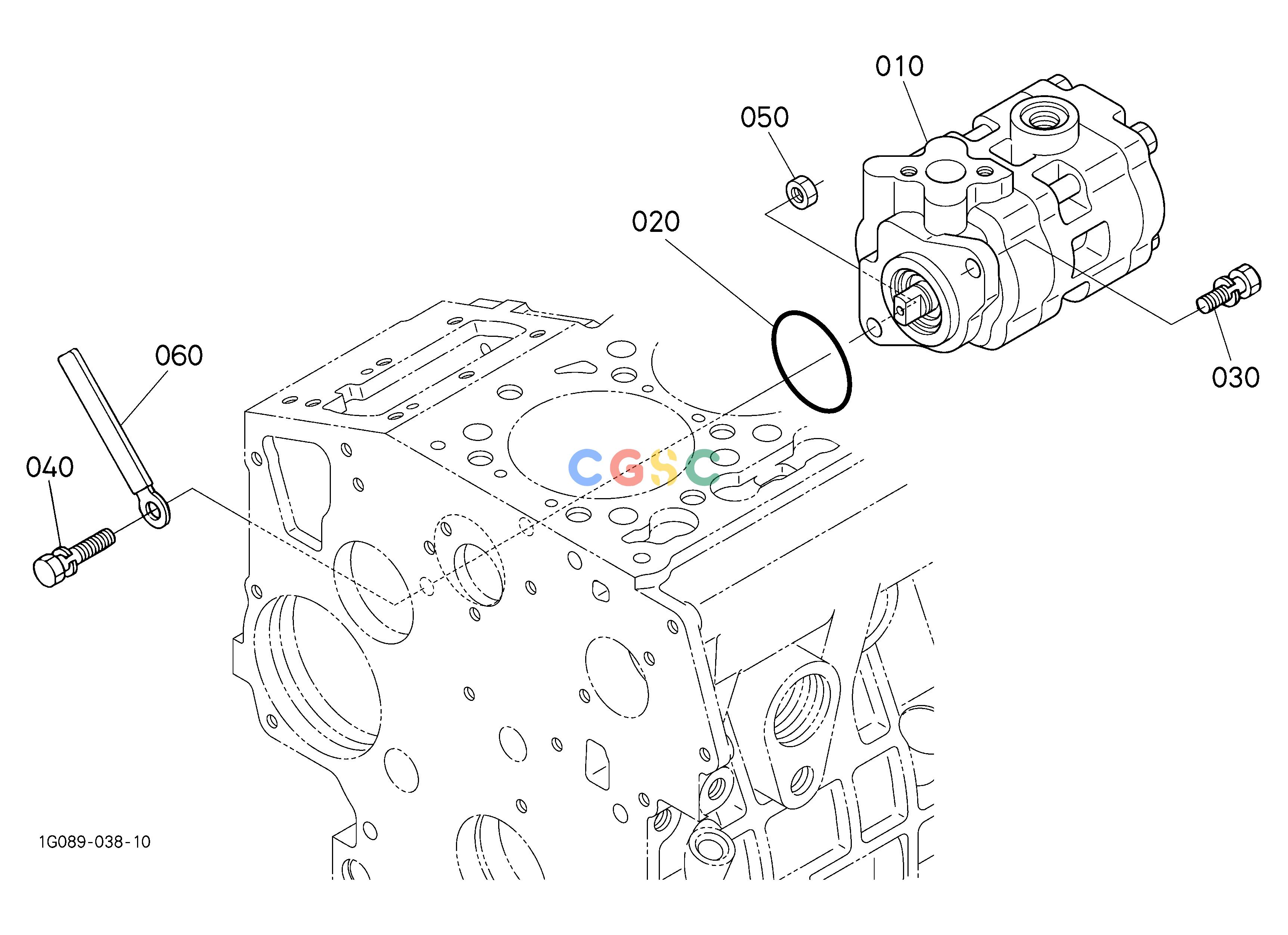

久保田零件查询070000 HYDRAULIC PUMP ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
227 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20037300
|
[1] |
PUMP,ASSY(HYDRAULIC)
|
4.9060(lbs); 2.230
|
| 010. |
6C20037303
|
[1] |
PUMP,ASSY(HYDRAULIC)
|
4.9060(lbs); 2.230
|
| 010. |
6C20037305
|
[1] |
PUMP,ASSY(HYDRAULIC)
|
4.9720(lbs); 2.260
|
| 020. |
0481110460
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 030. |
0112350825
|
[1] |
BOLT,SEMS
|
0.0286(lbs); 0.013
|
| 040. |
0112350835
|
[1] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 050. |
0205650080
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 060. |
1382467590
|
[1] |
CLAMP,CORD (8.5-73)
|
0.0044(lbs); 0.002
|
