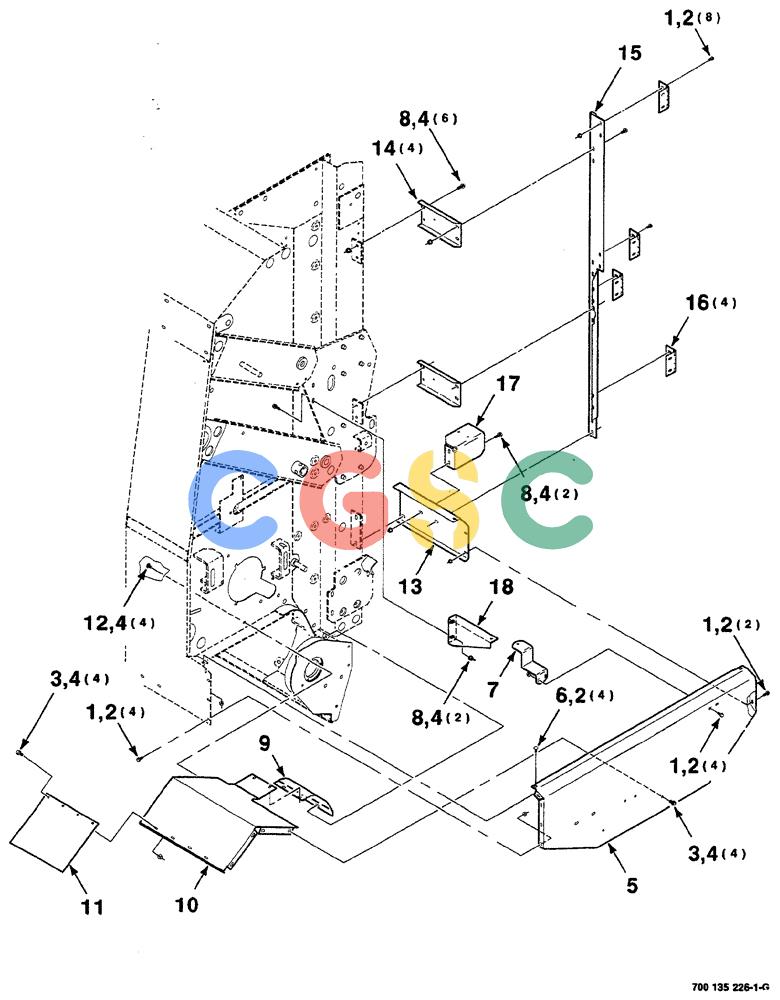

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (7-012) - SHIELD SUPPORT AND HINGE ASSEMBLIES, LEFT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
268 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
121-115
|
[18] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 2. |
231-5145
|
[22] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
Superseded by part number: 72187067, 145458
|
| 3. |
409-7612
|
[8] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 4. |
232-5316
|
[22] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8"-16, hex. flange top lock, GR/G Superseded by part number: 86521609
|
| 5. |
700135635
|
[1] |
SHIELD
|
HFI
L.H.
|
| 6. |
434-512
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280497, 87779118
|
| 7. |
700135634
|
[1] |
SUPPORT
|
HFI
|
| 8. |
121-226
|
[10] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 9. |
700150883
|
[1] |
SHIELD
|
HFI
lower, L.H.
|
| 10. |
700150824
|
[1] |
SHIELD
|
HFI
L.H. Superseded by part number: 700155631
|
| 11. |
700718401
|
[1] |
SHIELD
|
CAS
rubber
|
| 12. |
433-612
|
[4] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 13. |
700135629
|
[1] |
SUPPORT
|
HFI
L.H.
|
| 14. |
700135628
|
[4] |
SUPPORT
|
HFI
|
| 15. |
700135626
|
[1] |
SUPPORT
|
HFI
L.H.
|
| 16. |
700707701
|
[4] |
HINGE
|
CAS
butt
|
| 17. |
700132505
|
[1] |
SUPPORT
|
HFI
valve, mount
|
| 18. |
700132896
|
[1] |
SUPPORT
|
HFI
L.H.
|
