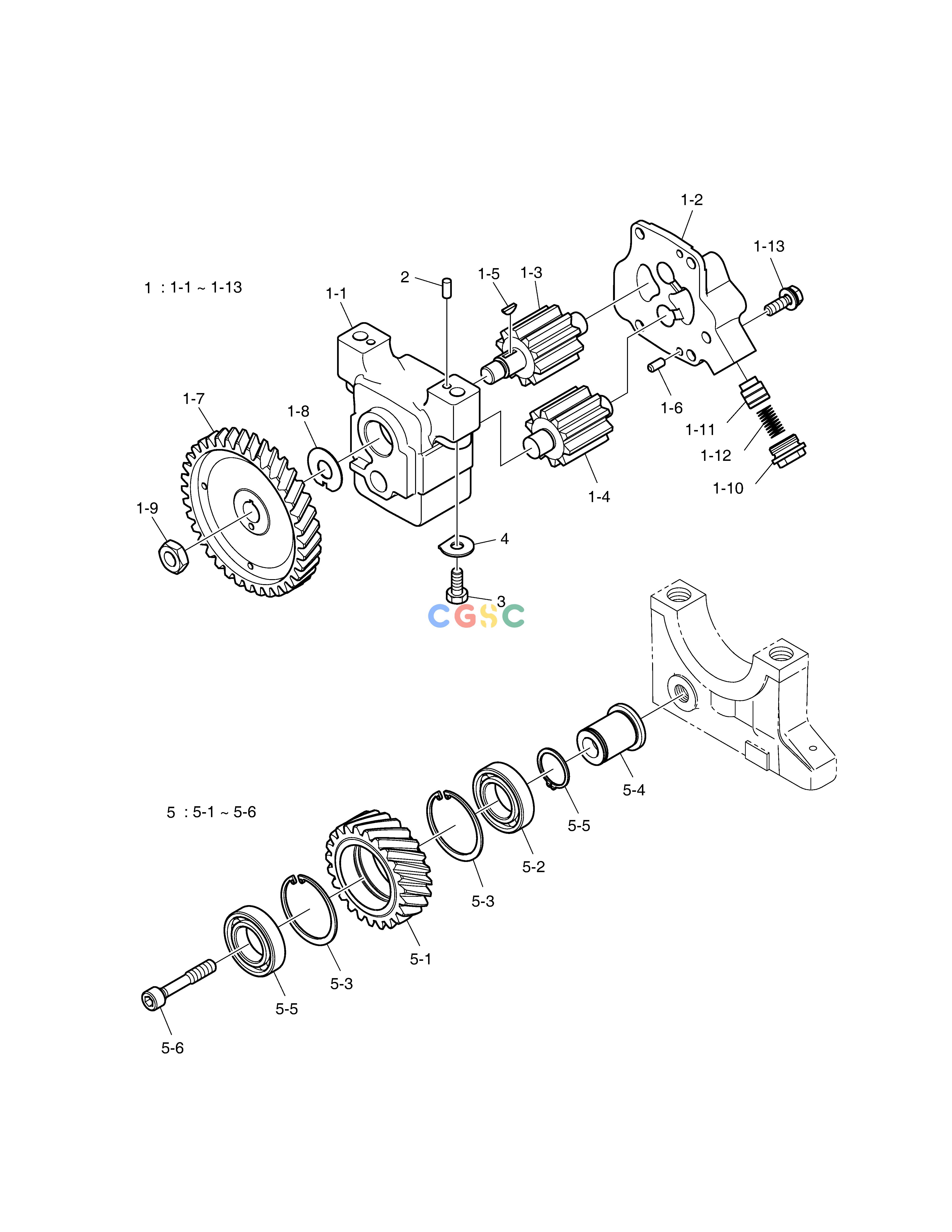

斗山零件查询OIL PUMP SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
239 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
400915-00022A
|
[1] |
PUMP ASSY,OIL
|
|
| 1-1. |
400923-00016A
|
[1] |
HOUSING,OIL PUMP
|
|
| 1-10. |
65.90310-0104
|
[1] |
SCREW;PLUG
|
|
| 1-11. |
65.05410-0007
|
[1] |
PLUNGER;VALVE
|
|
| 1-12. |
65.97601-0105
|
[1] |
SPRING;COMP.
|
|
| 1-13. |
06.01923-3115
|
[4] |
BOLT ASS`Y M8X25
|
|
| 1-2. |
110508-00293
|
[1] |
OIL PUMP COVER(REAR)
|
|
| 1-3. |
65.05104-5004
|
[1] |
GEAR;PUMP
|
|
| 1-4. |
65.05104-5005
|
[1] |
GEAR;PUMP
|
|
| 1-5. |
06.29141-0207
|
[1] |
KEY;WOODRUFF
|
|
| 1-6. |
06.22022-0909
|
[2] |
PIN;DOWEL 6M6X14
|
|
| 1-7. |
65.05201-0037
|
[1] |
GEAR;OIL PUMP DRIVE
|
|
| 1-8. |
06.16050-0311
|
[1] |
WASHER;LOCK
|
|
| 1-9. |
06.11053-9217
|
[1] |
NUT;HEX.
|
|
| 2. |
06.22022-0907
|
[2] |
. PIN;DOWEL
|
|
| 3. |
06.01013-9218
|
[2] |
BOLT;HEX. M10X65
|
|
| 4. |
65.90801-0018
|
[2] |
WASHER;LOCK
|
|
| 5. |
65.05200-6034
|
[1] |
IDLE GEAR ASS`Y
|
|
| 5-1. |
65.05204-0036
|
[1] |
GEAR;IDLE
|
|
| 5-2. |
06.31420-0314
|
[2] |
BEARING;BALL
|
|
| 5-3. |
06.29020-0132
|
[2] |
. SNAP RING
|
|
| 5-4. |
65.05205-0018
|
[1] |
PIN;IDLE GEAR
|
|
| 5-5. |
06.29010-0125
|
[1] |
RING;SNAP 30X2
|
|
| 5-6. |
65.90030-0009
|
[1] |
BOLT;SOCKET HEAD M10X60
|
|
