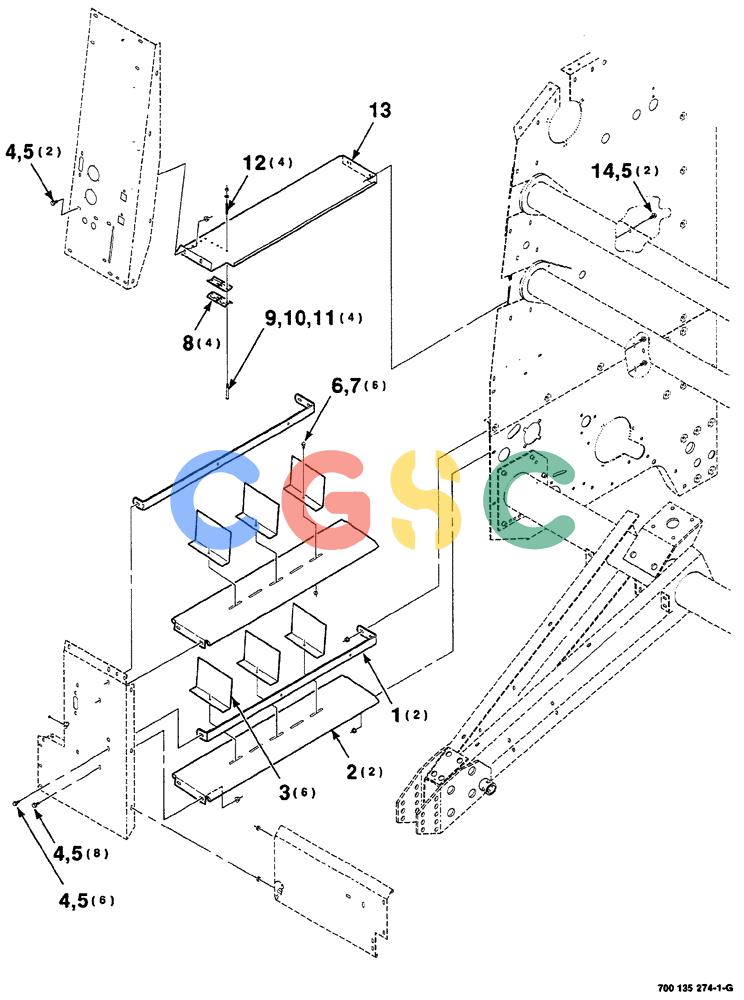

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (7-026) - TWINE BOX ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
300 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700135612
|
[2] |
GUARD
|
HFI
twine
|
| 2. |
700135596
|
[2] |
SUPPORT
|
HFI
twine
|
| 3. |
6868459
|
[6] |
DIVIDER
|
HFI
|
| 4. |
409-7612
|
[16] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 5. |
232-5316
|
[18] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8"-16, hex. flange top lock, GR/G Superseded by part number: 86521609
|
| 6. |
121-115
|
[6] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 7. |
232-5315
|
[6] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16"-18, hex. flange top lock, GR/G
|
| 8. |
6549869
|
[4] |
SUPPORT
|
L
BRACKET tension
|
| 9. |
413-444
|
[4] |
BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5
|
CAS
1/4"-20 x 2-3/4", hex. cap screw Superseded by part number: 72187194, 280566
|
| 10. |
496-11028
|
[4] |
WASHER,9/32" x 5/8" x .065, HDN
|
CAS
1/4", hardened, plain Superseded by part number: 86632587
|
| 11. |
232-4114
|
[4] |
LOCK NUT,1/4"-20, GC
|
CAS
1/4"-20, hex. top, GR/B Superseded by part number: 280129
|
| 12. |
700707677
|
[4] |
SPRING
|
L
compression
|
| 13. |
700132898
|
[1] |
SUPPORT
|
HFI
WA, upper
|
| 14. |
121-226
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
