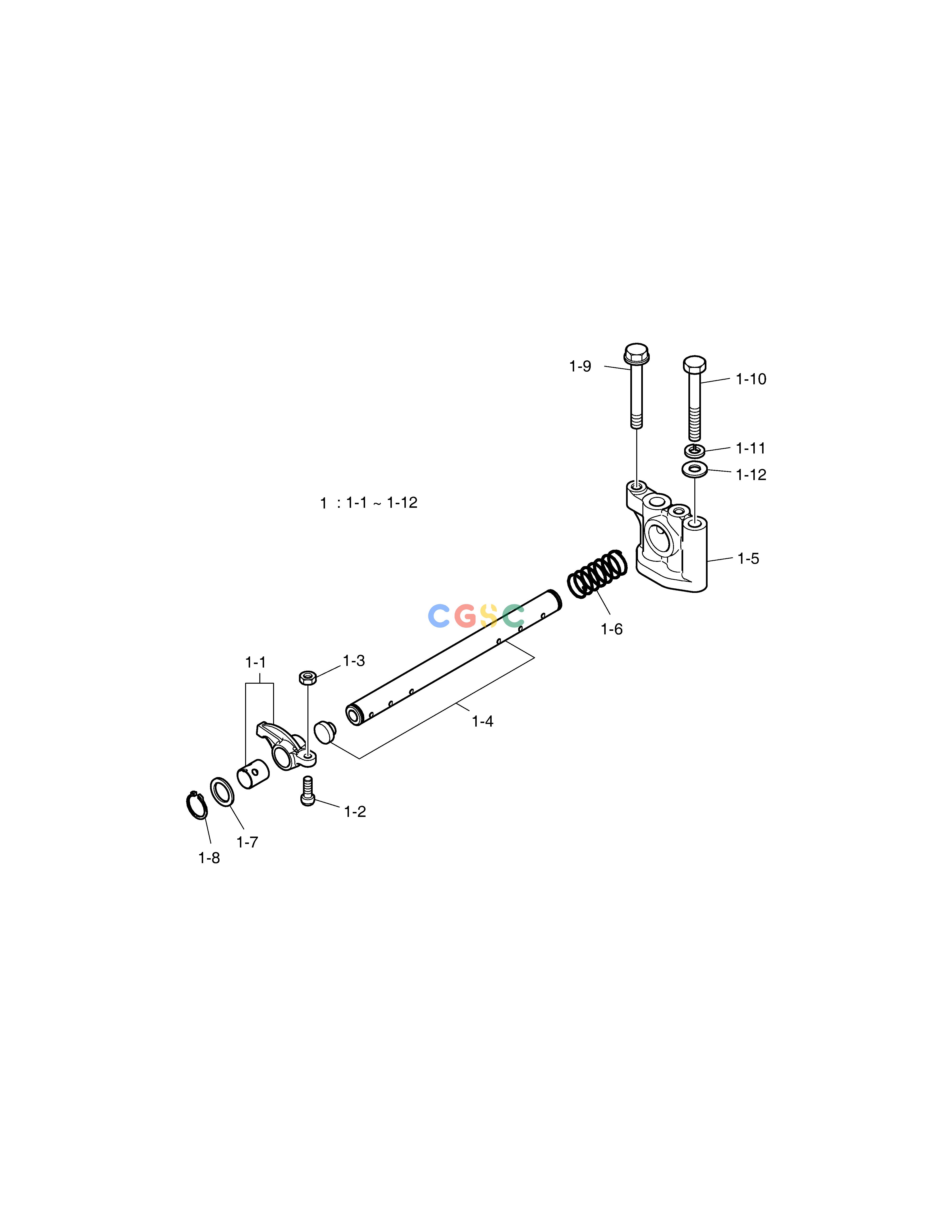

斗山零件查询ROCKER ARM SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
805 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.04200-6025E
|
[3] |
ROCKER ARM ASS'Y
|
|
| 1-1. |
65.04201-5013E
|
[4] |
ROCKER ARM
|
|
| 1-10. |
06.01013-9221
|
[2] |
BOLT;HEX. M10X80
|
|
| 1-11. |
06.16731-2108
|
[2] |
WASHER;SPRING
|
|
| 1-12. |
06.15030-0514
|
[2] |
WASHER;PLAIN
|
|
| 1-2. |
65.04205-0003A
|
[4] |
BOLT;ADJUSTING
|
|
| 1-3. |
65.90501-0003
|
[4] |
. NUT
|
|
| 1-4. |
65.04203-5009
|
[1] |
ROCKER ARM SHAFT ASS`Y
|
|
| 1-5. |
65.04202-0017A
|
[2] |
BRACKET;ROCKER ARM
|
|
| 1-6. |
65.97601-0055
|
[1] |
SPRING;ROCKER ARM SHAFT
|
|
| 1-7. |
65.90710-0039
|
[2] |
WASHER;ROCKER ARM
|
|
| 1-8. |
06.29010-0120
|
[2] |
. RING;SNAP
|
|
| 1-9. |
65.90020-0056
|
[2] |
BOLT;HEX. M12X1.5X80
|
|
