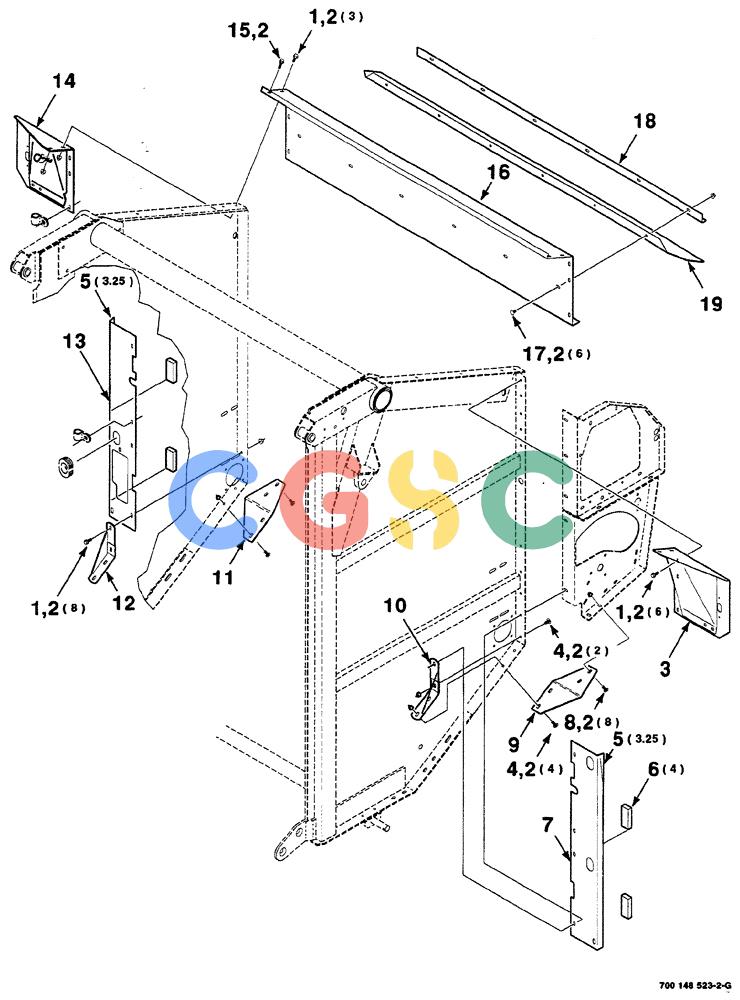

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (7-034) - TAILGATE SHIELDS, WITH MESH WRAP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
720 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
121-226
|
[17] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 2. |
232-5316
|
[38] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8"-16, hex. flange top lock, GR/G Superseded by part number: 86521609
|
| 3. |
700148766
|
[1] |
SUPPORT
|
HFI
WA, L.H.
|
| 4. |
433-620
|
[6] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 86508773
|
| 5. |
700717353
|
[6.5] |
TAPE
|
CAS
3 M, adhesive, ft., 108 ft. bulk
|
| 6. |
700717354
|
[4] |
PAD
|
CAS
foam rubber
|
| 7. |
700148773
|
[1] |
ANGLE
|
HFI
L.H.
|
| 8. |
434-616
|
[8] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 80280503
|
| 9. |
700148776
|
[1] |
SUPPORT
|
HFI
L.H.
|
| 10. |
700151511
|
[1] |
SUPPORT
|
HFI
WA, L.H.
|
| 11. |
700148777
|
[1] |
SUPPORT
|
HFI
R.H.
|
| 12. |
700151517
|
[1] |
SUPPORT
|
HFI
WA, R.H.
|
| 13. |
700148774
|
[1] |
ANGLE
|
HFI
R.H.
|
| 14. |
700148770
|
[1] |
SUPPORT
|
HFI
WA, R.H.
|
| 15. |
121-237
|
[1] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
3/8"-16 x 1-1/4", hex. flange, GR8 Superseded by part number: 87327172
|
| 16. |
700148765
|
[1] |
SUPPORT
|
HFI
upper
|
| 17. |
433-612
|
[6] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 18. |
700148790
|
[1] |
ANGLE
|
HFI
|
| 19. |
700717257
|
[1] |
SHIELD
|
CAS
rubber
|
