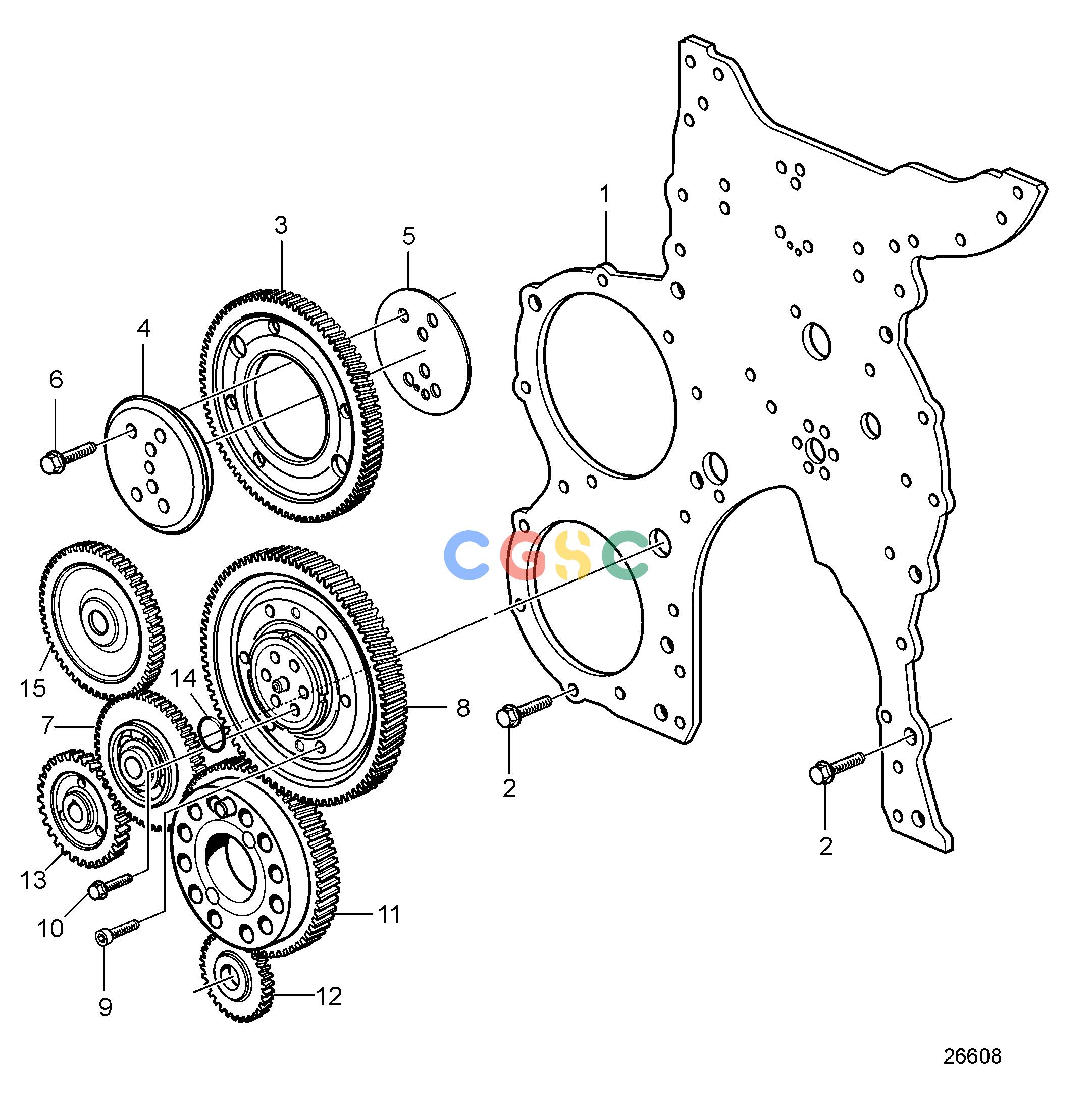

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9EngineTiming GearEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
907 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3886444
|
[1] |
Timing gear plate
|
|
| 2. |
966378
|
[23] |
Flange screw
|
|
| 3. |
8148100
|
[1] |
Idler gear, camshaft
|
|
| 4. |
20520535
|
[1] |
Hub
|
|
| 5. |
8131850
|
[1] |
Thrust washer
|
|
| 6. |
21015266
|
[5] |
Flange screw
|
|
| 7. |
20714549
|
[1] |
Idler gear, power steering pump
|
Replaced by next part number
|
| 7. |
22356360
|
[1] |
Idler gear, power steering pump
|
|
| 8. |
20480566
|
[1] |
Idler gear
|
|
| 9. |
20483919
|
[6] |
Hex. socket screw
|
|
| 10. |
471586
|
[6] |
Screw
|
|
| 11. |
8148111
|
[1] |
Gear
|
|
| 12. |
8148139
|
[1] |
Gear, oil pump
|
|
| 13. |
8148198
|
[1] |
Gear
|
|
| 14. |
949656
|
[1] |
O-ring
|
|
| 15. |
3161258
|
[1] |
Gear
|
|
