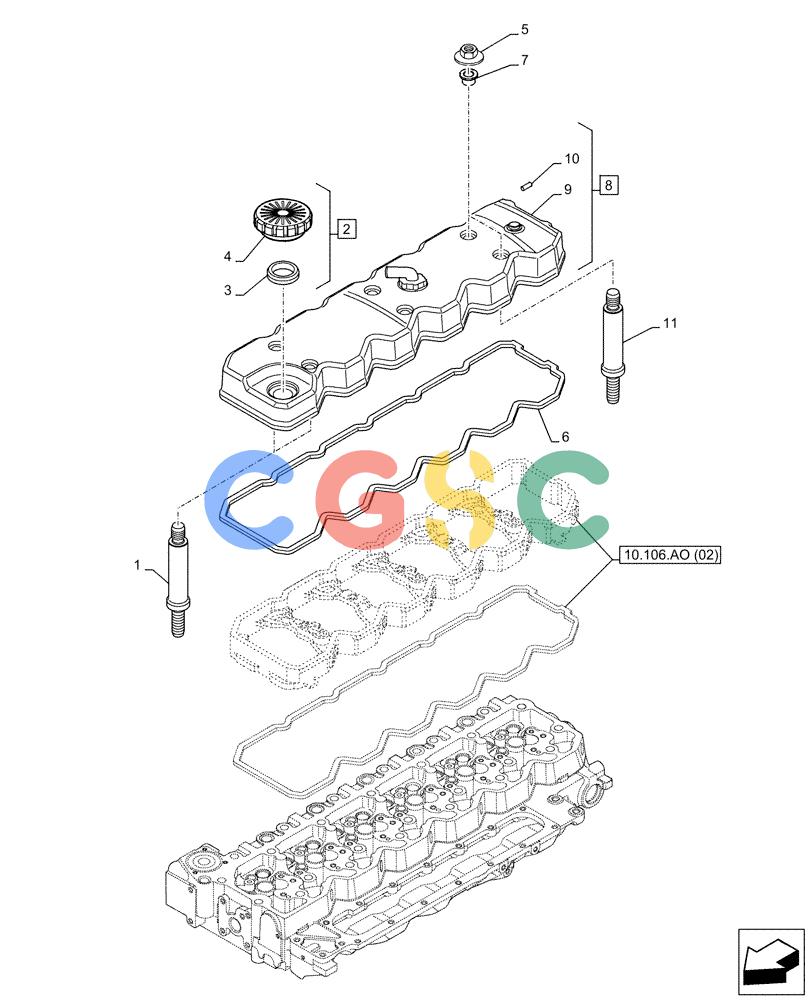

神钢零件查询(F4HFE6133 B003) - ENGINE 5801843802 - 47637346 TIER4 B (1/13-) (10.101.AB) - CYLINDER HEAD, COVER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
897 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854375 | [4] | STUD | TOR Superseded by part number: |
| 2. | 2856707 | [1] | FILLER CAP | TORASSY, Incl 3, 4 Superseded by part number: 504262827 |
| 3. | 2852774 | [1] | GASKET,38mm ID x 51mm OD x 8mm Thk | SM Superseded by part number: 98412146 |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 5. | 4893936 | [6] | FLANGE NUT,Hex, M13, RH Thd, Cl 9.8 | TORM8 x 1.25 |
| 6. | 2853784 | [1] | GASKET,10.5mm Thk | TOR Superseded by part number: 504070038 |
| 7. | 4899239 | [6] | ISOLATOR,29mm OD x 13mm L | TOR Superseded by part number: 504070041, 504075125 |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONValve cover, Incl in 8 |
| 10. | 4898283 | [1] | PLUG,Female | TOR |
