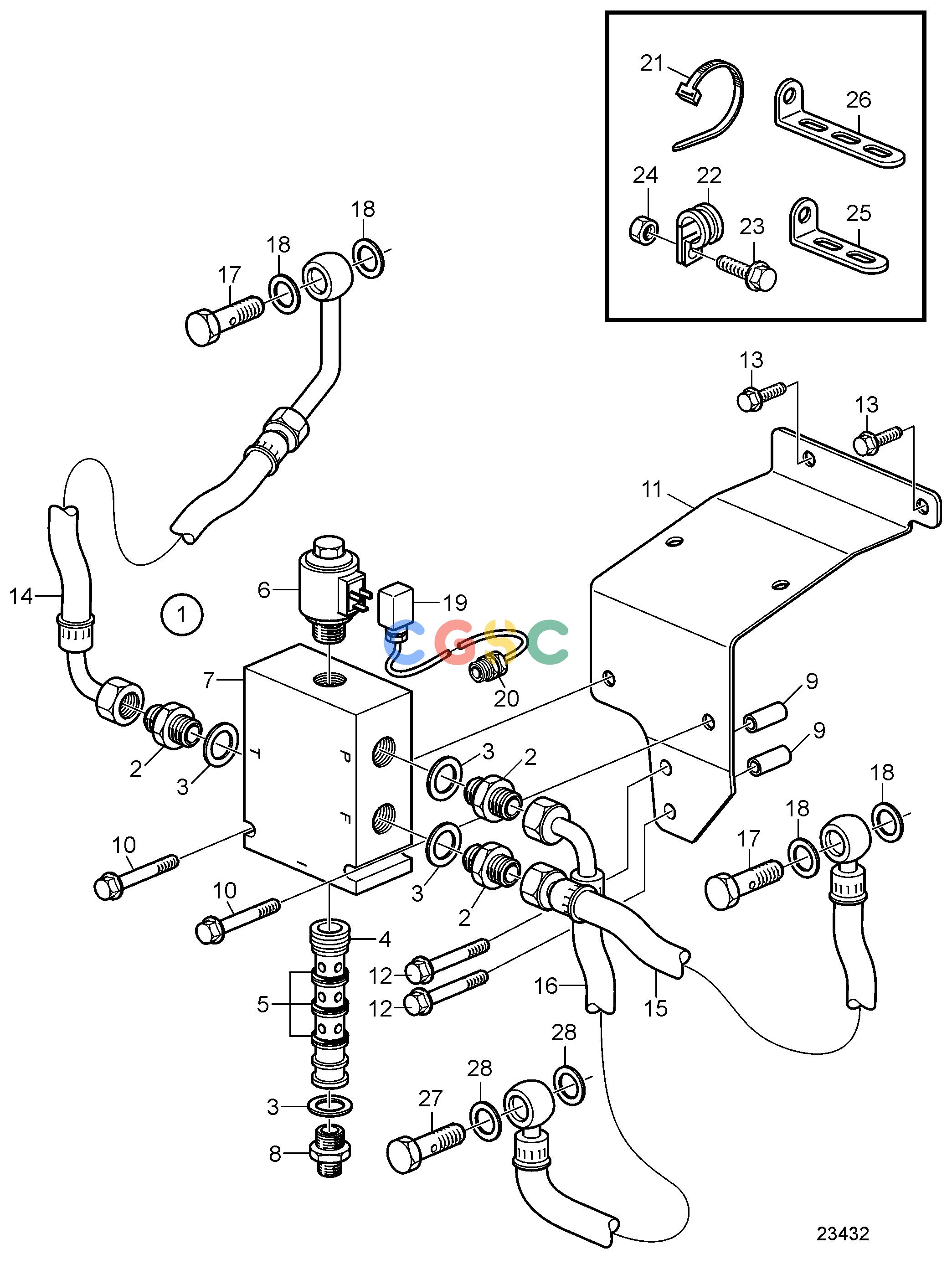

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Fuel SystemShut-off ValveEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
161 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3842766
|
[1] |
Fuel valve
|
|
| 2. |
983388
|
[3] |
Nipple
|
|
| 3. |
3889284
|
[4] |
Gasket
|
|
| 4. |
3835759
|
[1] |
Valve
|
|
| 5. |
3835803
|
[1] |
Gasket kit
|
|
| 6. |
3835762
|
[1] |
Magnet
|
|
| 7. |
3835761
|
[1] |
Manifold
|
|
| 8. |
|
|
|
3/4''- M16
|
| 9. |
807257
|
[2] |
Spacer sleeve
|
|
| 10. |
984741
|
[2] |
Flange screw
|
|
| 11. |
3818439
|
[1] |
Bracket
|
|
| 12. |
984741
|
[2] |
Flange screw
|
|
| 13. |
984733
|
[2] |
Flange screw
|
|
| 14. |
3883154
|
[1] |
Fuel hose
|
|
| 15. |
3883155
|
[1] |
Fuel hose
|
|
| 16. |
3883153
|
[1] |
Fuel hose
|
|
| 17. |
941686
|
[2] |
Hollow screw
|
|
| 18. |
982724
|
[2] |
Gasket
|
|
| 19. |
874934
|
[1] |
Cable kit
|
|
| 20. |
881190
|
[1] |
Grommet
|
|
| 21. |
948211
|
[2] |
Cable tie
|
|
| 22. |
949747
|
[5] |
Clamp
|
|
| 23. |
984733
|
[5] |
Flange screw
|
|
| 24. |
990940
|
[2] |
Flange nut
|
|
| 25. |
965559
|
[1] |
Bracket
|
|
| 26. |
965563
|
[1] |
Bracket
|
|
| 27. |
991048
|
[1] |
Hollow screw
|
|
| 28. |
982723
|
[2] |
Gasket
|
|
