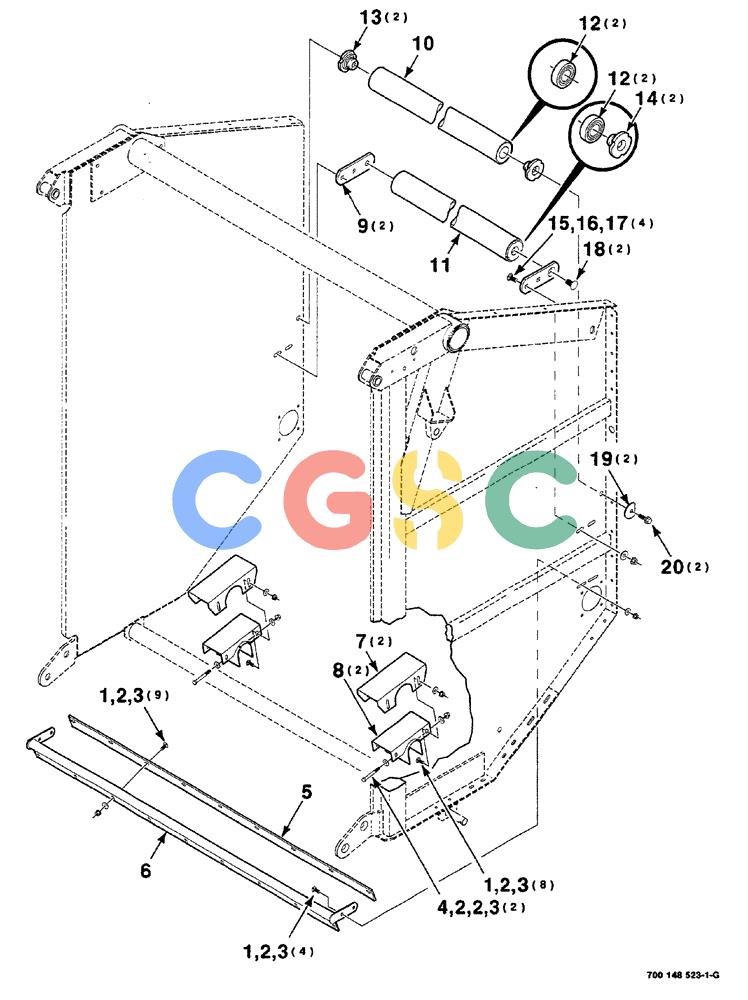

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (6-006) - TAILGATE SUPPORT ASSEMBLIES, MESH WRAP ONLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
252 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
434-616
|
[21] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 80280503
|
| 2. |
496-81010
|
[25] |
WASHER
|
CAS
3/8", hardened wide plain Superseded by part number: 86625244
|
| 3. |
232-5316
|
[23] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8"-16, hex. flange top lock, GR/G Superseded by part number: 86521609
|
| 4. |
413-652
|
[2] |
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
|
CAS
Superseded by part number: 9637240
|
| 5. |
700148781
|
[1] |
SCRAPER
|
HFI
|
| 6. |
700148778
|
[1] |
MOUNTING PARTS
|
HFI
WA
|
| 7. |
700148714
|
[2] |
SUPPORT
|
HFI
|
| 8. |
700148787
|
[2] |
SUPPORT
|
HFI
WA
|
| 9. |
700148683
|
[2] |
STRAP
|
HFI
|
| 10. |
700124612
|
[1] |
ROLLER
|
CAS
ASSY. includes: REF. 12
|
| 11. |
700148782
|
[1] |
ROLLER
|
HFI
ASSY. includes: REF. 12 & 14
|
| 12. |
8050825
|
[4] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
cylindrical Superseded by part number: F82059
|
| 13. |
700718217
|
[2] |
HUB
|
CAS
|
| 14. |
700100927
|
[2] |
HUB
|
L
|
| 15. |
433-820
|
[4] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 87868
|
| 16. |
700711557
|
[4] |
WASHER
|
CAS
1/2", hardened wide plain
|
| 17. |
231-5348
|
[4] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2"-13, hex. flange top lock, GR/G Superseded by part number: 86521610
|
| 18. |
700707981
|
[2] |
SCREW,FLAT, 3/4" - 10 x 1-3/4"
|
L
3/4"-10 x 1-3/4", hex. socket flat countersunk head cap, SPL
|
| 19. |
700151502
|
[2] |
WASHER
|
HFI
special
|
| 20. |
8701237
|
[2] |
BOLT
|
CAS
1/2"-13 x 1-1/2", hex. flange screw, GR8
|
