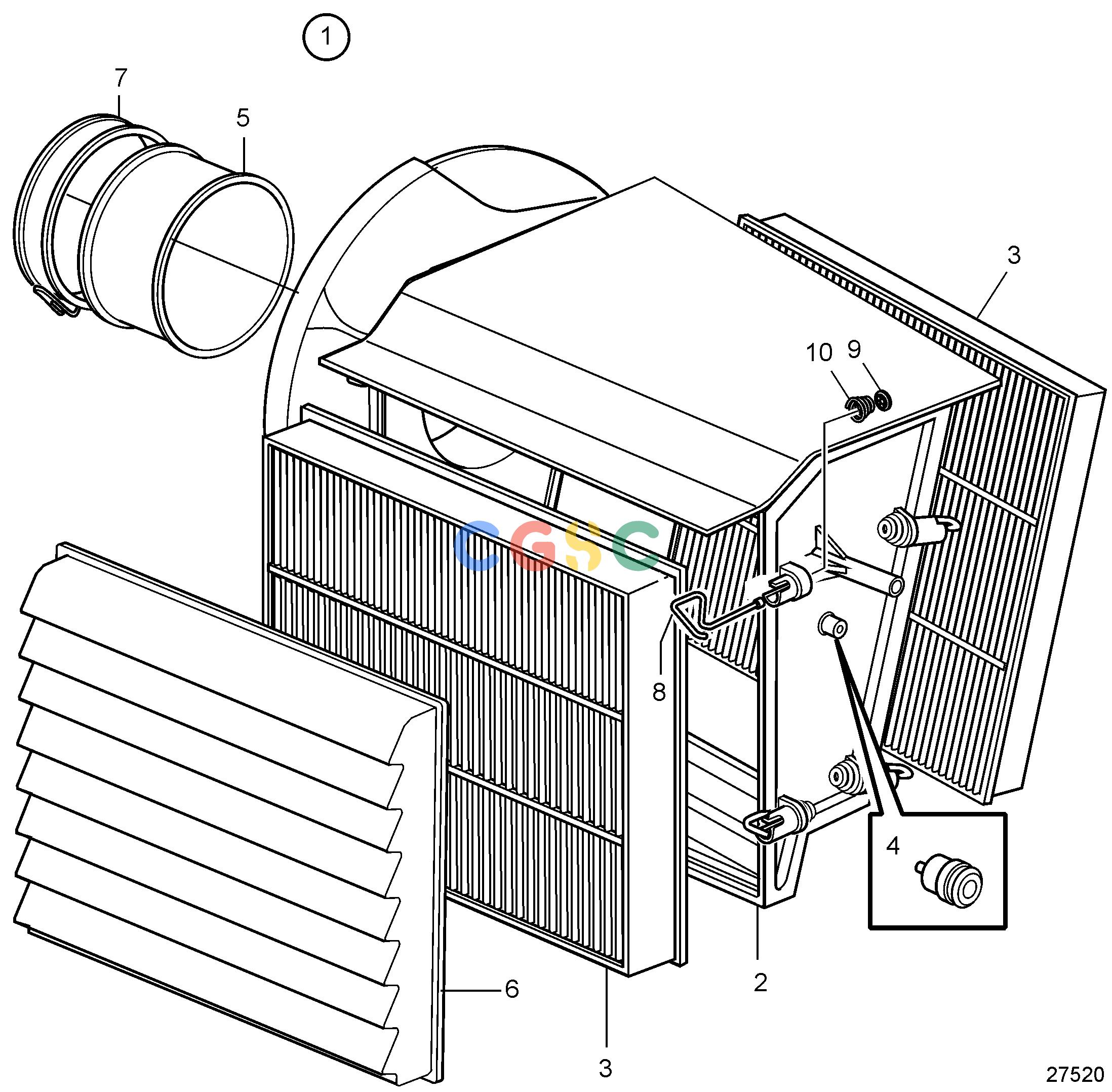

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Intake and Exhaust SystemAir Filter SN-1009117205EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
792 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3842879
|
[1] |
Air filter kit
|
|
| 2. |
3808327
|
[1] |
Housing
|
|
| 3. |
3818541
|
[2] |
Insert
|
|
| 4. |
3828765
|
[1] |
Pressure drop indica
|
|
| 5. |
3808001
|
[1] |
Gasket
|
|
| 6. |
3807825
|
[1] |
Cap
|
|
| 7. |
20435760
|
[1] |
Hose clamp
|
|
| 8. |
3843083
|
[8] |
Catch
|
|
| 9. |
996707
|
[8] |
Retainer
|
|
| 10. |
3809045
|
[8] |
Compression spring
|
|
