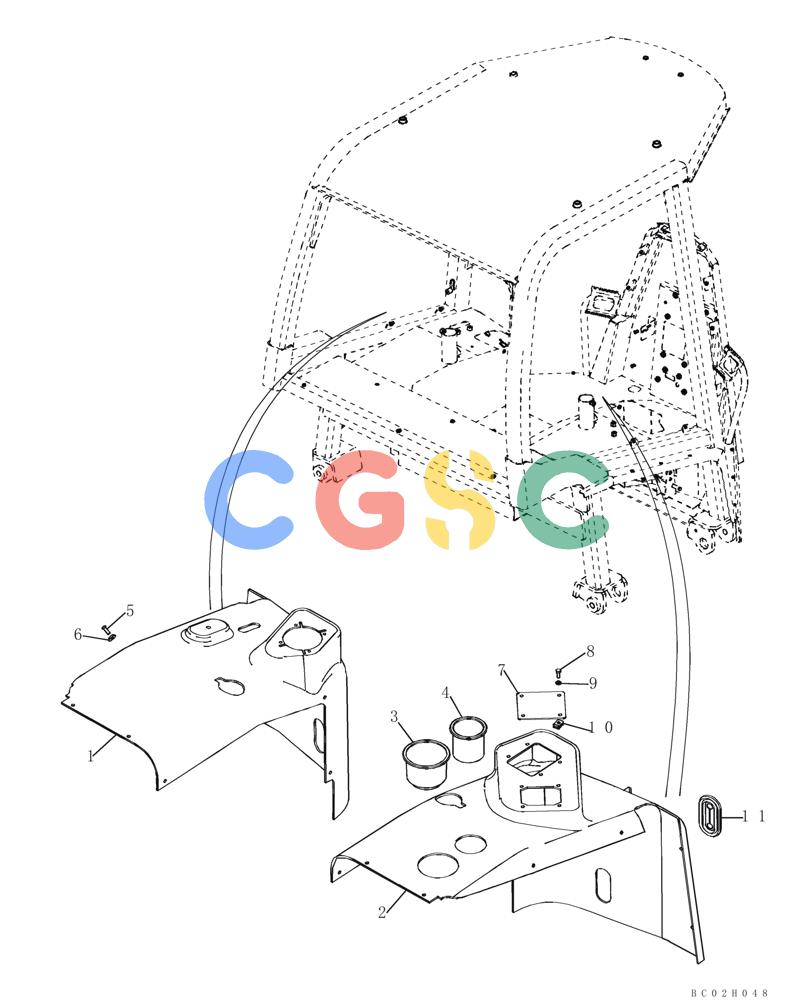

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87400831 | [1] | CONSOLE | BURLeft-Hand Side; Replaces 87437771 |
| 2. | 87400832 | [1] | CONSOLE | BURRight-Hand Side; Replaces 87437770 |
| 3. | 87403116 | [1] | TRAY | BURCup Holder; Large |
| 4. | 87403115 | [1] | TRAY | BURCup Holder; Deep |
| . . | 87311457 | [2] | Adhesive Tape; Used With Ref 3, 4; Not Illustrated | |
| 5. | 87341593 | [18] | SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8 | BURM6 x 20 Oval Countersunk, Phillips Head, Black; Replaces 79105220 Oval Head Self Tapping Screw Used On Some Models |
| 6. | 79076208 | [18] | WASHER | LECNylon |
| 7. | 87400833 | [1] | COVER | BURControl Cover; Auxiliary; 98 x 116 mm Square; Replaces 87435543 115 x 135 mm Square Cover Used On Some Models |
| 8. | 614-6025 | [8] | BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd | CAS Superseded by part number: 86977786 |
| 9. | 892-11006 | [8] | LOCK WASHER,M6 | CAS Superseded by part number: 86517328 |
| 10. | 76047274 | [8] | NUT,M6 x 1 | LEC |
| 11. | 76067249 | [2] | SHIELD | LECSeal, Lockout Lever |
