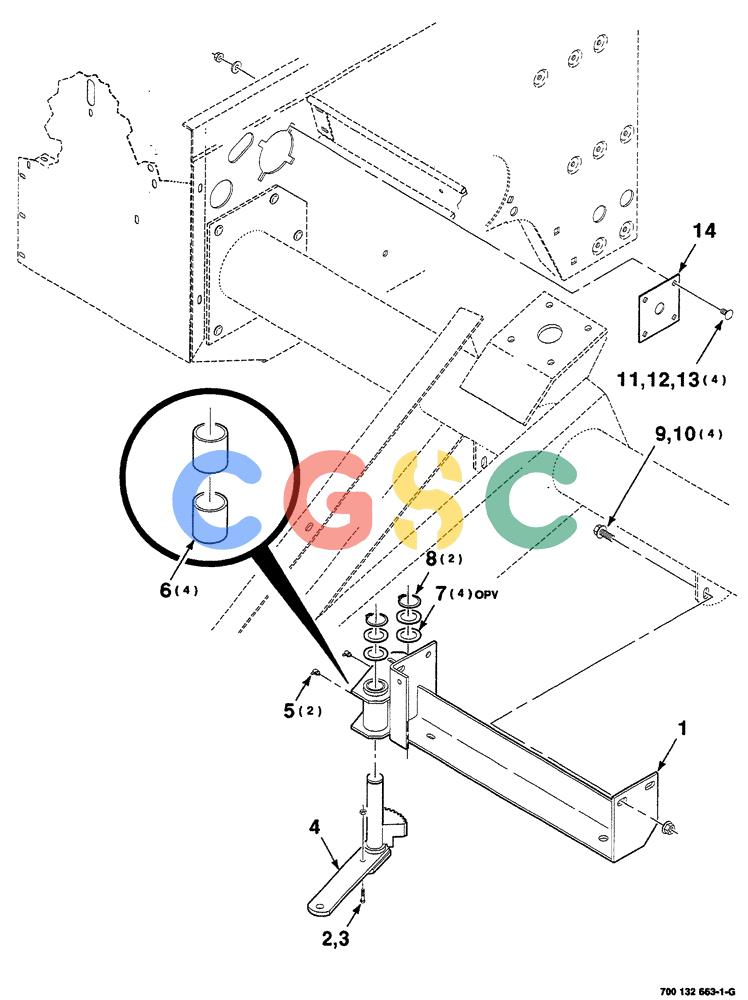

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (6-022) - TWINE THREADER ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
158 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700132687
|
[1] |
SUPPORT
|
HFI
WA, twine arm, includes: REF. 6
|
| 2. |
413-524
|
[1] |
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
|
IH
Superseded by part number: 88275, 72187199
|
| 3. |
230-4115
|
[1] |
LOCK NUT,5/16"-18, GA
|
CAS
5/16"-18, hex. top lock, GR/B Superseded by part number: 230-4145
|
| 4. |
700135662
|
[1] |
SHAFT
|
HFI
WA
|
| 5. |
219-93
|
[2] |
LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF
|
CAS
Superseded by part number: 87415
|
| 6. |
740514
|
[4] |
BUSHING,31.81mm ID x 38.2mm OD x 50.8mm L
|
L
BEARING bronze
|
| 7. |
495-81205
|
[4] |
WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk
|
CAS
GAUGE 1-1/4" x 14, narrow rim machinery bushing
|
| 8. |
103-11125
|
[2] |
SNAP RING,#125, Ext
|
CAS
|
| 9. |
700710984
|
[4] |
SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC
|
CAS
|
| 10. |
231-5348
|
[4] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2"-13, hex. flange top lock, GR/G Superseded by part number: 86521610
|
| 11. |
433-612
|
[4] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 12. |
496-81010
|
[4] |
WASHER
|
CAS
3/8", hardened, wide, plain Superseded by part number: 86625244
|
| 13. |
231-5146
|
[4] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 14. |
700135773
|
[1] |
PLATE
|
HFI
|
