纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (09-30) - CAB - CONSOLES, SIDE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
509 次

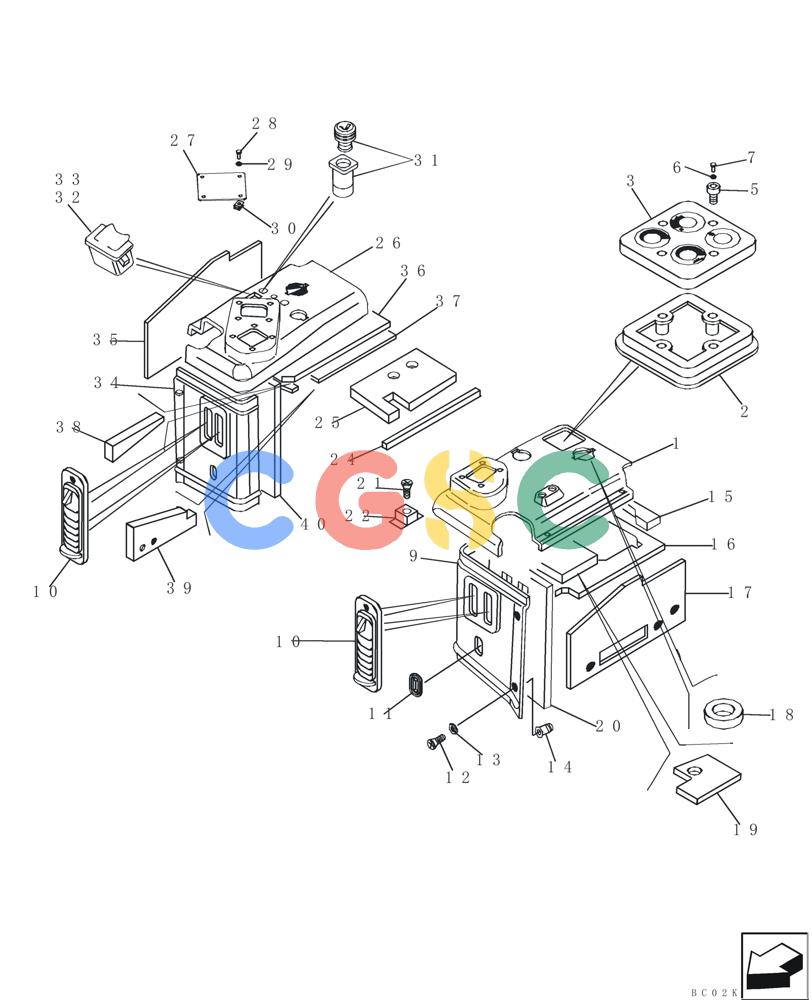

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87400838 | [1] | COVER | BURConsole, Upper Left-Hand Side |
| 2. | 76079000 | [1] | SUPPORT | LEC |
| 3. | 76078245 | [1] | PLATE | LECControl; Heat and Air Conditioning |
| 5. | 76043560 | [4] | THREADED INSERT,M4 | LEC |
| 6. | 14496209 | [4] | WASHER | BUR4 mm |
| 7. | 13772917 | [4] | SCREW,M4 x 35mm | BURM4 x 35 |
| 9. | 87400837 | [1] | SOFT TRIM | BURConsole, Lower Front; Left-Hand Side |
| 10. | 76079036 | [4] | VENT | LECLouver |
| 11. | 76067249 | [2] | SHIELD | LECSeal, Lockout/Parking Brake Levers |
| 12. | 79105220 | [8] | SCREW,Phillips Drive, Oval HD, M6 x 20mm | IMO |
| 13. | 79076208 | [8] | WASHER | LECNylon, Black |
| 14. | 15629711 | [8] | THREADED INSERT | BURM6 x 9.5 |
| 15. | 87400684 | [1] | TRIM PANEL | BURUpper Left |
| 16. | 87400683 | [1] | TRIM PANEL | BURUpper Left |
| 17. | 87400687 | [1] | TRIM PANEL | BURLeft-Hand Side |
| 18. | 76079012 | [1] | FOAM INSULATION | LEC |
| 19. | 76079008 | [1] | FOAM INSULATION | LECUpper Left |
| 20. | 76067326 | [1] | INSULATING PANEL | LECLower Front; Left-Hand Side |
| 21. | 13313217 | [4] | SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd | LEC |
| 22. | 76047274 | [4] | NUT,M6 x 1 | LEC |
| 24. | 76067665 | [3] | SEAL | LEC |
| 25. | 87400682 | [1] | TRIM PANEL | BUR |
| 26. | 87400839 | [1] | COVER | BURConsole, Upper Right-Hand Side |
| 27. | 87400833 | [1] | COVER | BURModels Without Auxiliary Control Lever; 98 x 116 mm Square; Replaces 87435543 115 x 135 mm Square Cover Used On Some Models |
| 28. | 614-6025 | [4] | BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd | CAS Superseded by part number: 86977786 |
| 29. | 892-11006 | [4] | LOCK WASHER,M6 | CAS Superseded by part number: 86517328 |
| 31. | 76088313 | [1] | CIGARETTE LIGHTER | BUR |
| 32. | 76067826 | [1] | COVER | LECAshtray |
| 33. | 76043643 | [1] | ASH TRAY | LEC |
| 34. | 87400849 | [1] | SOFT TRIM | BURConsole, Lower Front; Right-Hand Side |
| 35. | 87400688 | [1] | TRIM PANEL | BURRight-Hand Side |
| 36. | 87400686 | [1] | TRIM PANEL | BURUpper Right |
| 37. | 87400685 | [1] | TRIM PANEL | BURUpper Right |
| 38. | 76079009 | [1] | FOAM INSULATION | LECUpper Right |
| 39. | 76079010 | [1] | FOAM INSULATION | LEC |
| 40. | 76067327 | [1] | INSULATING PANEL | LECLower Front; Right-Hand Side |
