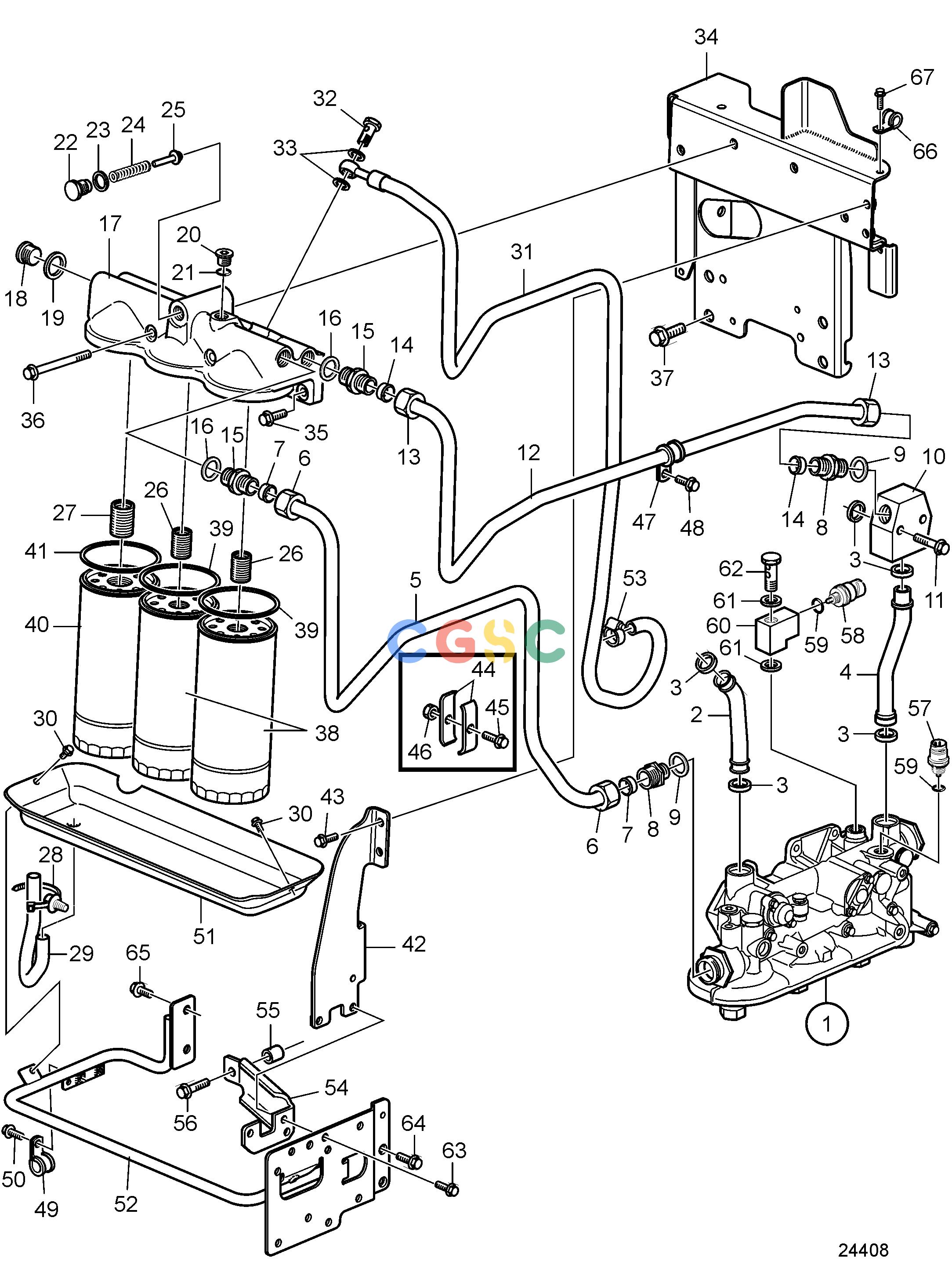

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Lubricating SystemOil Filter and Oil LinesEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
284 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3587347
|
[1] |
Oil filter housing
|
Replaced by oil filter housing 3842787 and gasket 20480827.
|
| 1. |
3842787
|
[1] |
Oil filter housing
|
|
| 2. |
20734497
|
[1] |
Pipe
|
|
| 3. |
471626
|
[5] |
Rubber moulding
|
|
| 4. |
3839295
|
[1] |
Oil pipe
|
|
| 5. |
3836301
|
[1] |
Oil pipe
|
|
| 6. |
956987
|
[2] |
Fitting nut
|
|
| 7. |
956973
|
[2] |
Ferrule
|
|
| 8. |
982254
|
[2] |
Nipple
|
|
| 9. |
948885
|
[2] |
Gasket
|
|
| 10. |
3818529
|
[1] |
Connection block
|
(3587590)
|
| 11. |
984740
|
[2] |
Flange screw
|
|
| 12. |
3836300
|
[1] |
Oil pipe
|
|
| 13. |
956987
|
[2] |
Fitting nut
|
|
| 14. |
956973
|
[2] |
Ferrule
|
|
| 15. |
948170
|
[2] |
Nipple
|
|
| 16. |
977937
|
[2] |
Gasket
|
|
| 17. |
11127988
|
[1] |
Oil filter housing
|
|
| 18. |
1698627
|
[2] |
Plug
|
|
| 19. |
977937
|
[1] |
Gasket
|
|
| 20. |
20459641
|
[1] |
Plug
|
|
| 21. |
|
|
|
|
| 22. |
471598
|
[1] |
Plug
|
|
| 23. |
947627
|
[1] |
Gasket
|
|
| 24. |
466653
|
[1] |
Compression spring
|
|
| 25. |
471085
|
[1] |
Valve cone
|
|
| 26. |
466623
|
[2] |
Nipple
|
|
| 27. |
469904
|
[1] |
Nipple
|
|
| 28. |
980881
|
[1] |
Cable tie
|
|
| 29. |
941507
|
[1] |
Hose
|
L=300mm
|
| 30. |
967949
|
[2] |
Flange screw
|
|
| 31. |
3883438
|
[1] |
Oil hose
|
|
| 32. |
991048
|
[1] |
Hollow screw
|
|
| 33. |
982723
|
[2] |
Gasket
|
|
| 34. |
21131317
|
[1] |
Bracket
|
|
| 35. |
946472
|
[2] |
Flange screw
|
|
| 36. |
984762
|
[2] |
Flange screw
|
|
| 37. |
984851
|
[4] |
Flange screw
|
|
| 38. |
478736
|
[2] |
Oil filter
|
|
| 39. |
|
|
|
|
| 40. |
477556
|
[1] |
Oil filter
|
Bypass filter
|
| 41. |
|
|
|
|
| 42. |
3817750
|
[1] |
Bracket
|
|
| 43. |
984733
|
[2] |
Flange screw
|
|
| 44. |
947219
|
[4] |
Clamp
|
|
| 45. |
965176
|
[2] |
Flange screw
|
|
| 46. |
990939
|
[2] |
Flange nut
|
|
| 47. |
952632
|
[1] |
Clamp
|
|
| 48. |
984732
|
[1] |
Flange screw
|
|
| 49. |
1545432
|
[1] |
Attaching clamp
|
|
| 50. |
984734
|
[1] |
Flange screw
|
|
| 51. |
3586978
|
[1] |
Spill plate
|
|
| 52. |
3887397
|
[1] |
Bracket
|
(3839051), Earlier production
|
| 53. |
943471
|
[1] |
Hose clamp
|
|
| 54. |
3887394
|
[1] |
Bracket
|
|
| 55. |
|
|
|
|
| 56. |
984755
|
[1] |
Flange screw
|
|
| 57. |
1077574
|
[1] |
Sensor, oil pressure/temperature
|
|
| 58. |
21202753
|
[1] |
Pressure switch
|
|
| 59. |
968559
|
[2] |
O-ring
|
|
| 60. |
3812421
|
[1] |
Connection block
|
|
| 61. |
11996
|
[2] |
Gasket
|
|
| 62. |
968126
|
[1] |
Hollow screw
|
|
| 63. |
984753
|
[2] |
Flange screw
|
|
| 64. |
946472
|
[2] |
Flange screw
|
|
| 65. |
984752
|
[2] |
Flange screw
|
|
| 66. |
952627
|
[1] |
Clamp
|
|
| 67. |
984725
|
[1] |
Flange screw
|
|
