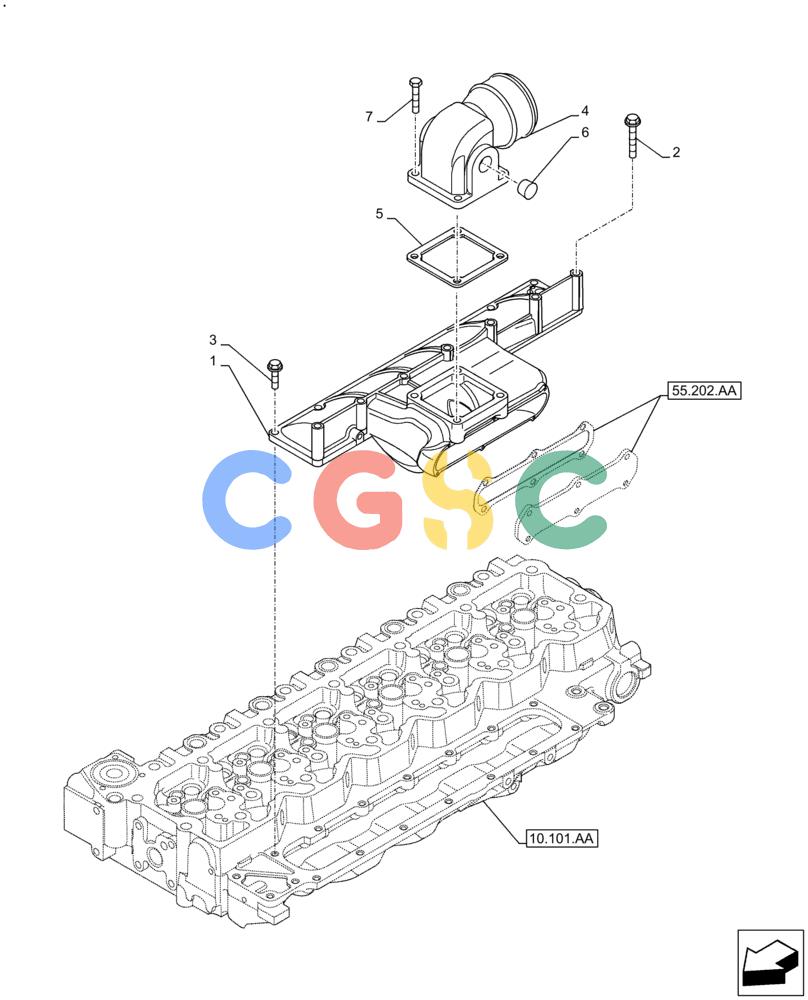

神钢零件查询(F4HFE6133 B003) - ENGINE 5801843802 - 47637346 TIER4 B (1/13-) (10.254.AM) - INTAKE MANIFOLD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
634 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854534 | [1] | INLET MANIFOLD | TOR Superseded by part number: 504114393 |
| 2. | 4895432 | [3] | SCREW,M8 x 1.25 x 70mm | TOR |
| 3. | 4899039 | [7] | BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9 | TOR |
| 4. | 4895424 | [1] | INLET MANIFOLD | TOR |
| 5. | 4899921 | [1] | GASKET,1.2mm Thk | TOR |
| 6. | 4893036 | [2] | PIPE PLUG,3/4"-14 NPTF | TORAlternative Superseded by part number: 2854866 |
| 6. | 2854866 | [2] | HEX SOCKET PLUG,3/4"-14 NPTF | TORAlternative Superseded by part number: 4893036 |
| 7. | 2852212 | [4] | FLANGE BOLT,Hex, M8 x 1.25 x 25mm | TORAlternative |
| 7. | 4895294 | [4] | BOLT,Flng, M8 x 1.25 x 80mm, Cl 10.9 | TORAlternative |
