纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (09-36) - CAB - HEATING SYSTEM (AT ENGINE) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
862 次

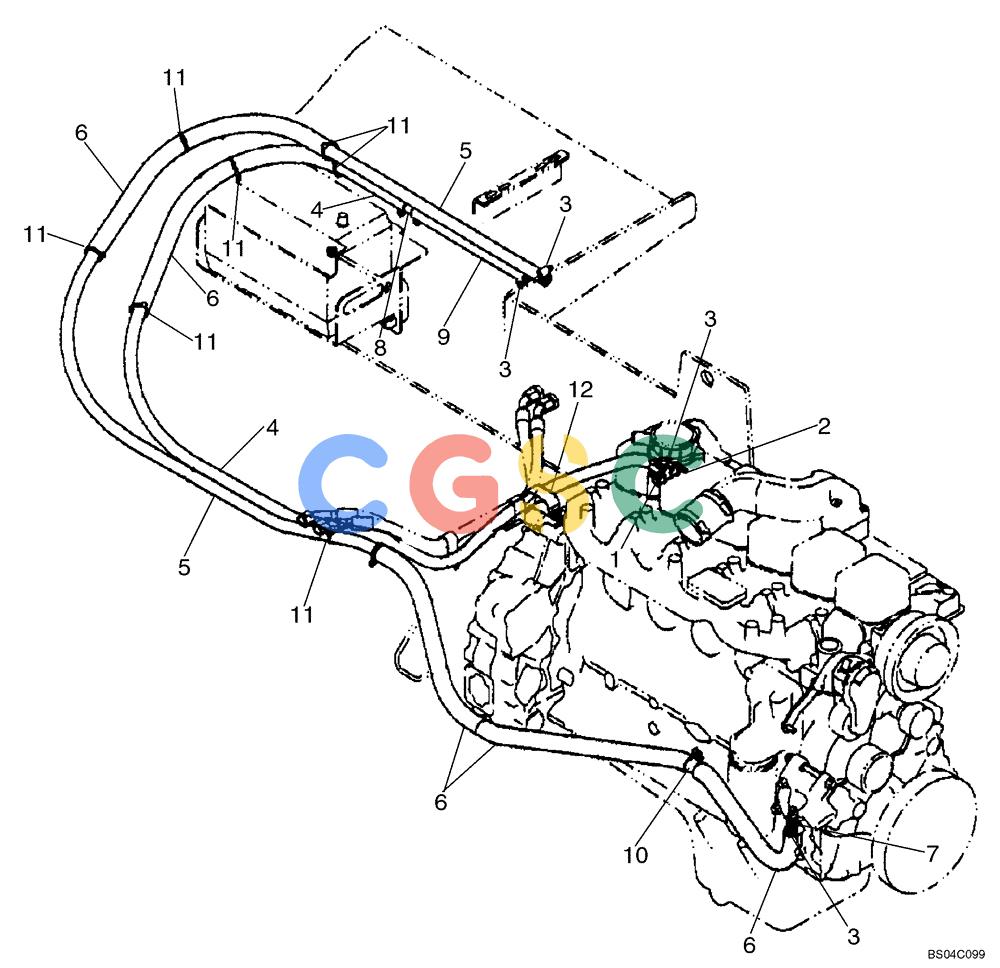

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 221-1089 | [1] | REDUCER,Hex, 1/2" x 3/8" NPT | CAS Superseded by part number: 86625018 |
| 2. | 301803R1 | [1] | SHUT-OFF VALVE | IH |
| 3. | 214-1410 | [6] | HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm | CAS Superseded by part number: 18088392 |
| 4. | 1974655C1 | [1] | HEATER HOSE,15.50 mm ID x 2642.00 mm | IHCut From 86997299 Bulk Hose; Inlet, Heater Supply From Engine |
| 5. | 1974653C1 | [1] | HEATER HOSE,15.50 mm ID x 3404.00 mm | IHOutlet, Heater Return To Engine |
| 6. | 87401054 | [5] | CONDUIT | BUR Superseded by part number: 87450713 |
| 7. | 642560 | [1] | FITTING,5/8" Hose X 3/8" NPTF Beaded | GIUse Loctite 71 |
| 8. | 87409594 | [1] | REDUCER FITTING | BUR3/4 x 5/8 |
| 9. | 87429721 | [1] | HEATER HOSE,19.00 mm ID x 305.00 mm | BUR |
| 10. | 515-25254 | [1] | CLAMP,1", Insul, 1/2" Bolt | CASUses (1) 614-12025 Bolt, (1) 892-11012 Washer Superseded by part number: 86625038 |
| . . | 614-12025 | [1] | BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd | IH Superseded by part number: 300388 |
| . . | 892-11012 | [1] | LOCK WASHER,M12 | CAS Superseded by part number: 412123 |
| 11. | L18337 | [8-9] | CABLE TIE,9.95"-12.1" lg | CAS Superseded by part number: 529070 |
| 12. | 242999A1 | [1] | CLAMP | CASDouble, Use Existing Hardware; If Used |
