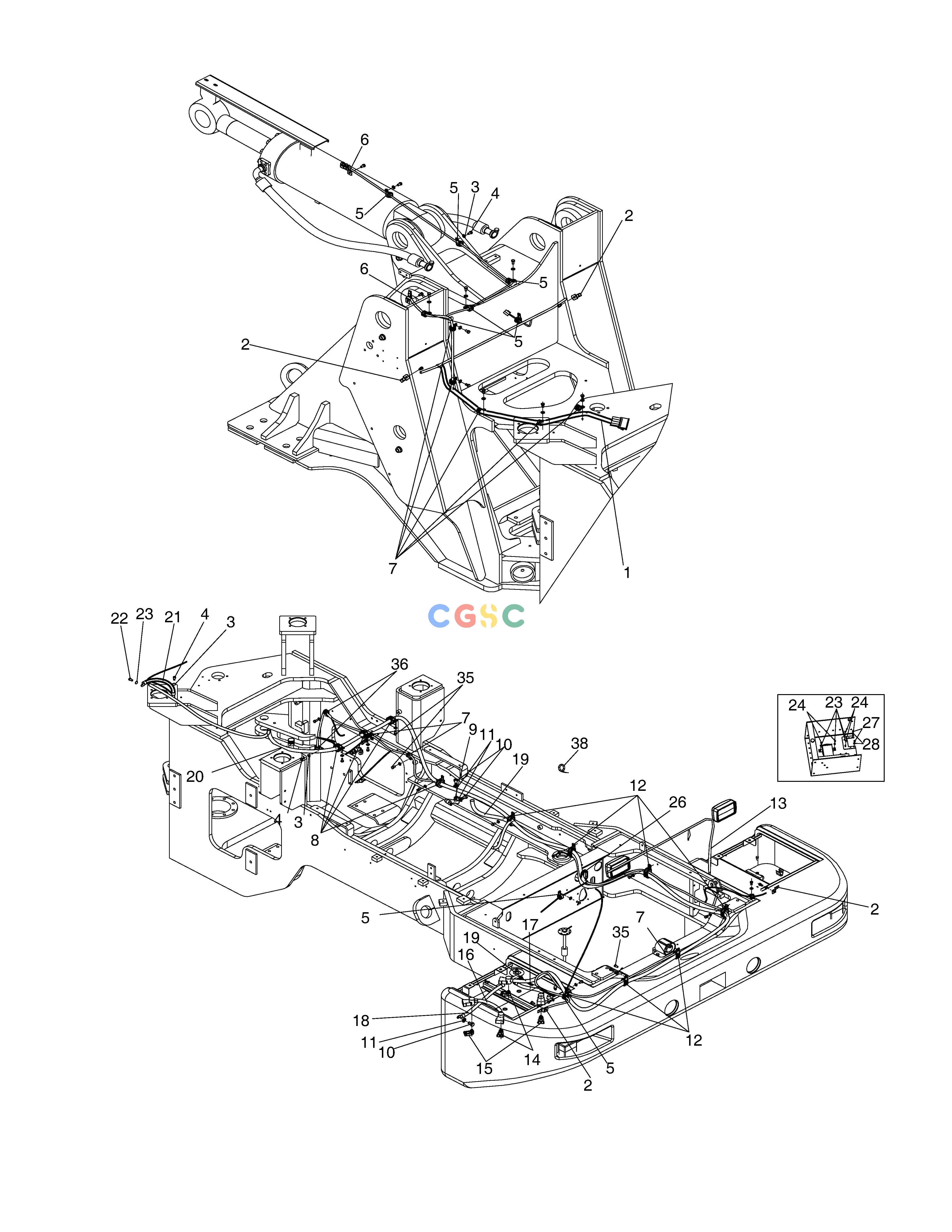

斗山零件查询ELECTRIC PARTS(8)- WIRING-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
854 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
310208-00175
|
[-] |
|
|
| 1. |
310207-01761B
|
[1] |
HARNESS,FRONT FRAME
|
|
| 10. |
S0511853
|
[3] |
BOLT
|
|
| 11. |
S5010613
|
[3] |
WASHER
|
|
| 12. |
124-00209D2
|
[7] |
CLIP
|
|
| 13. |
310207-01770
|
[1] |
|
|
| 14. |
2550-1014D1
|
[2] |
TERMINAL,BATTERY(+)
|
|
| 15. |
2550-1014D2
|
[2] |
TERMINAL,BATTERY(-)
|
|
| 16. |
310209-05028A
|
[1] |
|
|
| 17. |
310203-02598
|
[1] |
|
|
| 18. |
310203-02599
|
[1] |
CABLE,EARTH
|
|
| 19. |
310203-04097
|
[1] |
|
|
| 2. |
110406-01874
|
[4] |
BRACKET,HOUSING
|
|
| 20. |
310207-01762B
|
[1] |
HARNESS,MAIN
|
310207-01762C
|
| 20. |
310207-01762C
|
[1] |
HARNESS,MAIN
|
|
| 21. |
310203-00009A
|
[1] |
CABLE,EARTH
|
|
| 22. |
S0504653
|
[3] |
. BOLT
|
|
| 23. |
S5010313
|
[10] |
WASHER
|
|
| 24. |
S3458953
|
[7] |
SCREW M6X1.0X12
|
|
| 26. |
131009-00028
|
[1] |
|
|
| 27. |
S3460833
|
[2] |
SCREW
|
|
| 28. |
S5000213
|
[2] |
. WASHER
|
|
| 3. |
S5010513
|
[28] |
WASHER
|
|
| 35. |
2120-2187
|
[3] |
BOLT
|
|
| 36. |
124-00208D1
|
[9] |
CLIP
|
|
| 37. |
310207-02630
|
[1] |
HARNESS,FRONT FRAME
|
|
| 38. |
120402-00397
|
[20] |
CLIP,BAND
|
|
| 4. |
S0508653
|
[35] |
BOLT
|
|
| 5. |
124-00208D2
|
[7] |
CLAMP
|
|
| 6. |
110406-01882
|
[2] |
BRACKET,HOUSING
|
|
| 7. |
124-00208D3
|
[6] |
CLIP
|
|
| 8. |
124-00208D4
|
[4] |
CLIP
|
|
| 9. |
310209-05029A
|
[1] |
CABLE
|
|
