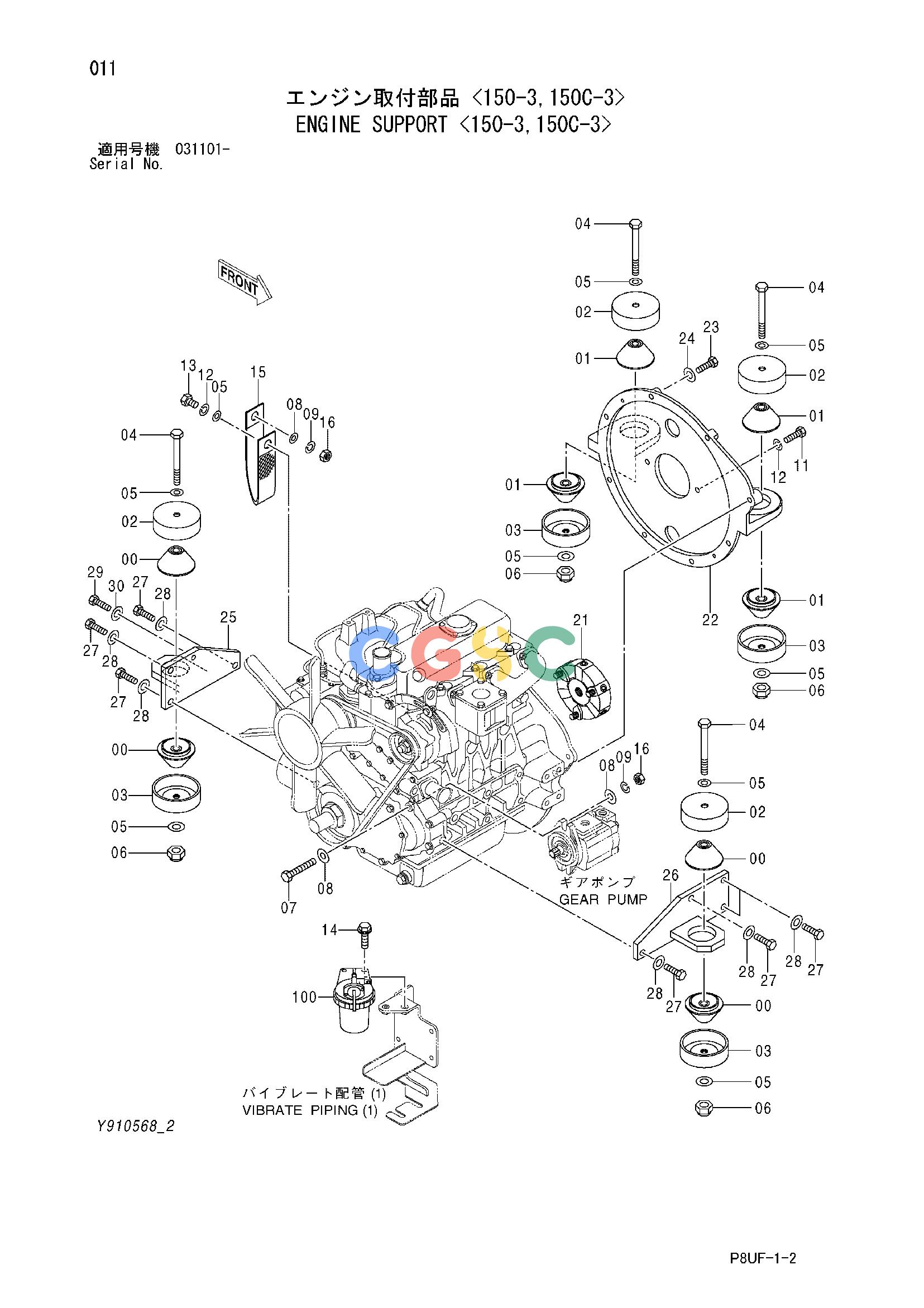

日立零件查询（CC150C-3A）ENGINE SUPPORT <150-3,150C-3> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
952 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4390496 | [4] | RUBBER | |
| 01. | 4355158 | [4] | RUBBER | |
| 02. | Y971741 | [4] | STOPPER | |
| 03. | Y971742 | [4] | STOPPER | |
| 04. | J901204 | [4] | BOLT | |
| 05. | J222012 | [9] | WASHER | |
| 06. | M660012 | [4] | NUT;U | |
| 07. | J901002 | [2] | BOLT | |
| 08. | A590110 | [5] | WASHER;PLANE | |
| 09. | A590910 | [3] | WASHER;SPRING | |
| 11. | J901230 | [2] | BOLT | |
| 12. | A590912 | [3] | WASHER;SPRING | |
| 13. | J241220 | [1] | BOLT;SEMS | |
| 14. | J260830 | [2] | BOLT;SEMS | |
| 14A. | J900830 | [1] | BOLT | |
| 14B. | A590108 | [1] | WASHER;PLANE | |
| 15. | Y415584 | [1] | WIRE;EARTH | |
| 16. | J950010 | [3] | NUT | |
| 21. | Y415402 | [1] | COUPLING | |
| 22. | Y100767 | [1] | COVER;PUMP | |
| 23. | J241035 | [8] | BOLT | |
| 24. | A590910 | [8] | WASHER;SPRING | |
| 25. | Y802522 | [1] | BRACKET | |
| 26. | Y802609 | [1] | BRACKET | |
| 27. | J241230 | [7] | BOLT | |
| 28. | J222012 | [7] | WASHER | |
| 29. | J241030 | [1] | BOLT | |
| 30. | J222010 | [1] | WASHER | |
| 100. | Y416174 | [1] | FILTER;FUEL | |
| 100A. | Y416175 | [1] | ELEMENT;FILTER | |
