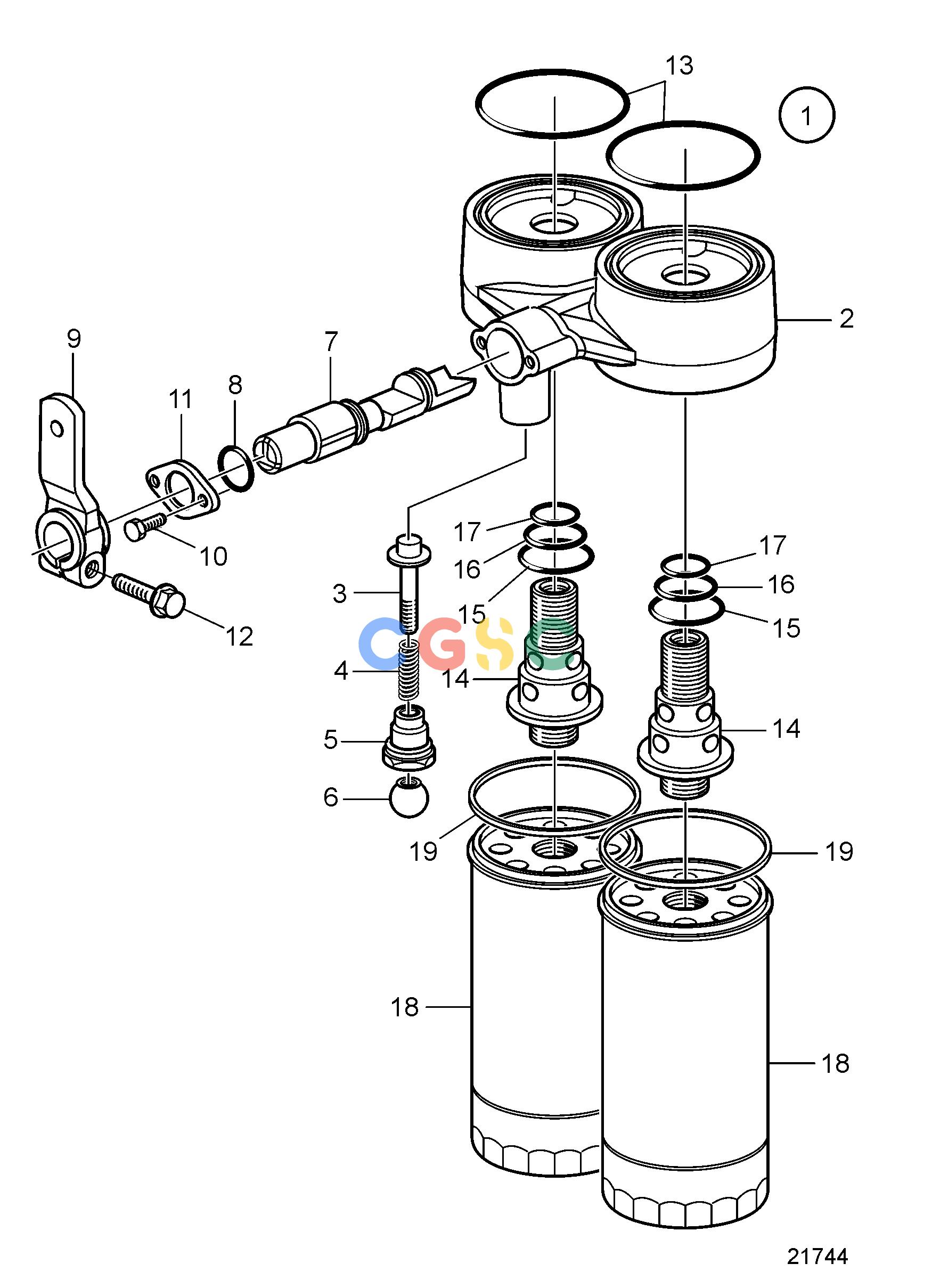

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Lubricating SystemOil Filter Housing with Shift Valve. ClassifiableEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
906 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3829976
|
[1] |
Valve housing
|
Replaced by 3889232
|
| 1. |
3889232
|
[1] |
Valve housing
|
|
| 2. |
|
|
|
|
| 3. |
3830181
|
[1] |
Dowel
|
|
| 4. |
466653
|
[1] |
Compression spring
|
|
| 5. |
3830176
|
[1] |
Sleeve
|
|
| 6. |
940344
|
[1] |
Wing nut
|
|
| 7. |
3826152
|
[1] |
Selector valve
|
|
| 8. |
949657
|
[1] |
O-ring
|
|
| 9. |
964408
|
[1] |
Intermediate lever
|
|
| 10. |
984725
|
[2] |
Flange screw
|
|
| 11. |
842912
|
[1] |
Flange
|
|
| 12. |
984754
|
[1] |
Flange screw
|
|
| 13. |
948981
|
[2] |
O-ring
|
|
| 14. |
3829975
|
[2] |
Nipple
|
|
| 15. |
969415
|
[2] |
O-ring
|
|
| 16. |
948610
|
[2] |
O-ring
|
|
| 17. |
20536487
|
[2] |
O-ring
|
(3165747)
|
| 18. |
478736
|
[2] |
Oil filter
|
|
| 19. |
|
|
|
|
