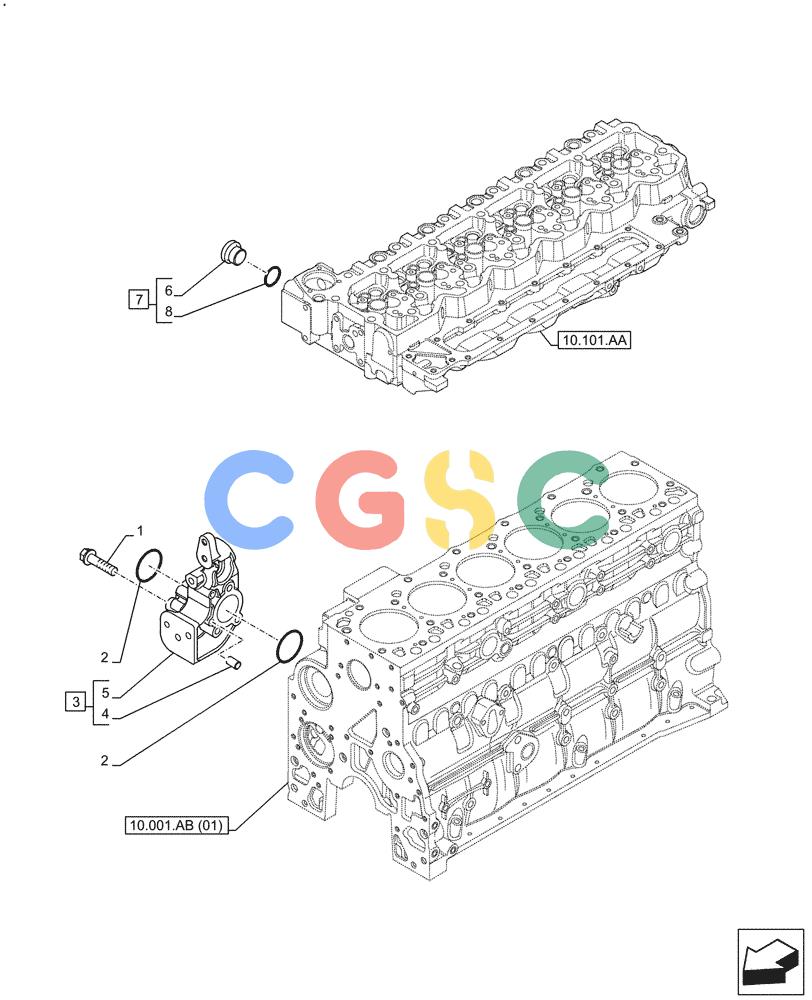

神钢零件查询(F4HFE6133 B003) - ENGINE 5801843802 - 47637346 TIER4 B (1/13-) (10.400.AE) - COOLANT HEATING LINES Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
626 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854424 | [1] | SCREW,Hex, Flg Hd, M10 x 1.5 x 70mm | TOR Superseded by part number: 16676834 |
| 2. | 2854072 | [2] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TOR Superseded by part number: 504062710 |
| 4. | 98405182 | [2] | DOWEL | TOR |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONSupport, Incl in 3 |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 7 |
| 7. | 4895080 | [1] | HEX SOCKET PLUG,M22 x 1.5 | TORASSY, Incl 6, 8 |
| 8. | 2854072 | [1] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TOR Superseded by part number: 504062710 |
