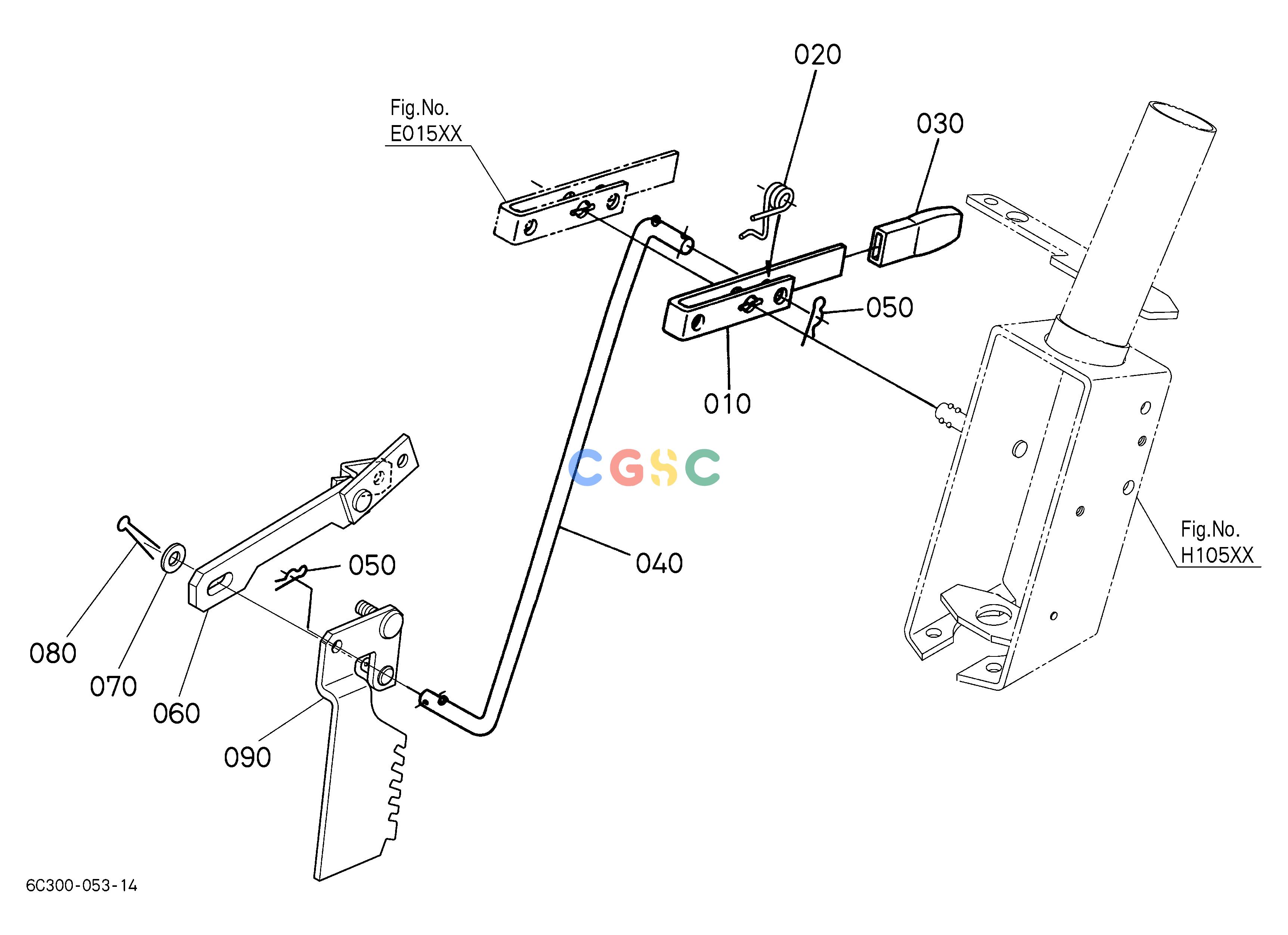

久保田零件查询F03000 SPEED SET LEVER ## NOTE:ORDER BY REF.No.060 and 070 NEW PARTS. SPEED CHANGEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
705 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04041350
|
[1] |
LEVER
|
0.2288(lbs); 0.104
|
| 020. |
6C05041390
|
[1] |
SPRING,RETURN
|
0.0132(lbs); 0.006
|
| 030. |
6C04041360
|
[1] |
GRIP,LEVER
|
0.0264(lbs); 0.012
|
| 040. |
6C07041382
|
[1] |
ROD
|
0.3960(lbs); 0.180
|
| 050. |
0552550800
|
[2] |
SNAP PIN
|
0.0022(lbs); 0.001
|
| 060. |
6C30043342
|
[1] |
ASSY LINK
|
0.0000(lbs); 0.000
|
| 060. |
6C30043343
|
[1] |
ASSY LINK
|
0.3454(lbs); 0.157
|
| 070. |
6C30043360
|
[1] |
SPACER
|
0.0000(lbs); 0.000
|
| 070. |
0401350080
|
[1] |
WASHER,PLAIN
|
0.0066(lbs); 0.003
|
| 080. |
0551150218
|
[1] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 090. |
6C05043335
|
[1] |
ARM
|
0.7260(lbs); 0.330
|
| 090. |
6C05043336
|
[1] |
ARM
|
0.7260(lbs); 0.330
|
