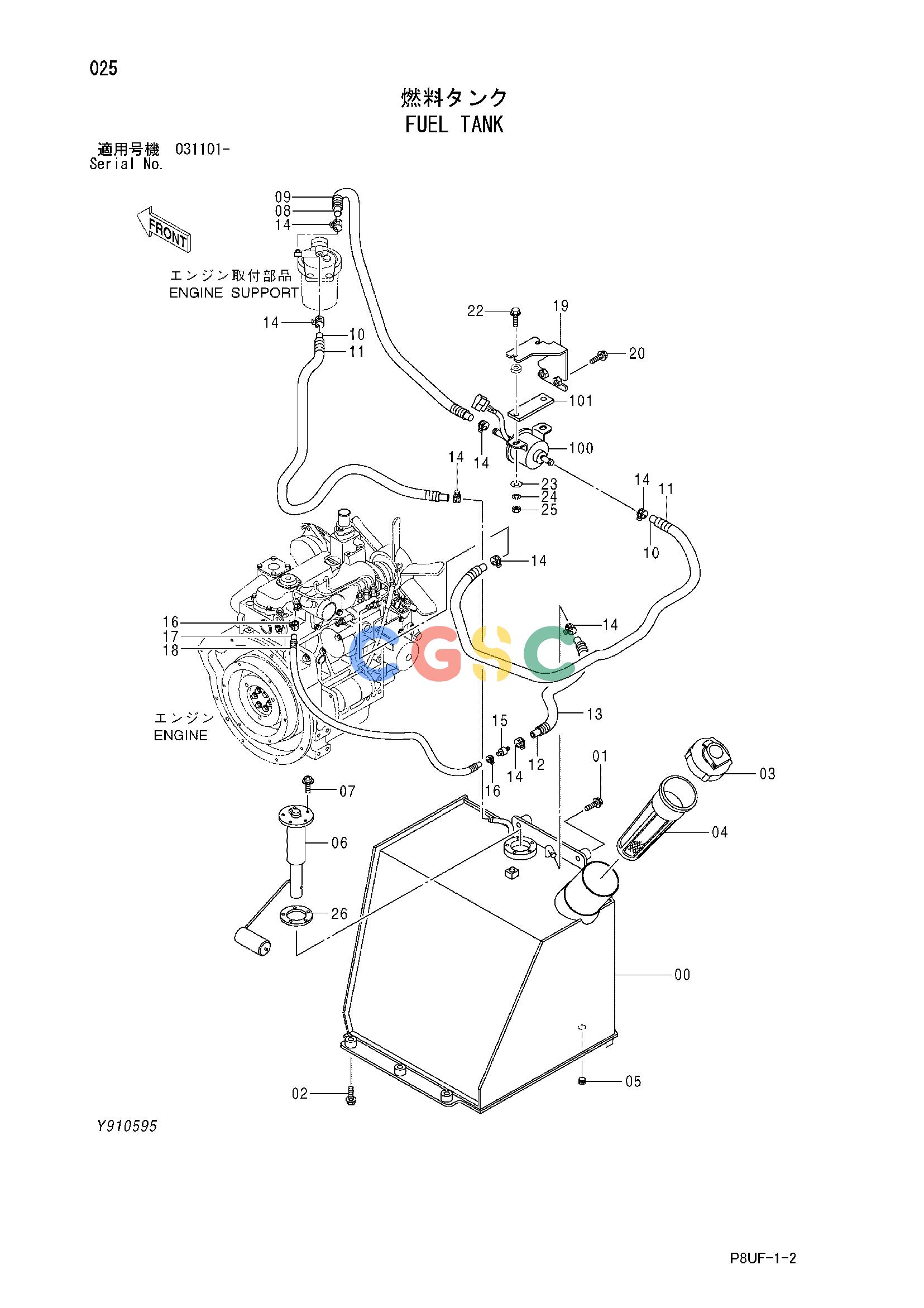

日立零件查询（CC150C-3A）FUEL TANK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
955 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y600609 | [1] | TANK;FUEL | |
| 01. | J281230 | [2] | BOLT;SEMS | |
| 01A. | J901230 | [1] | BOLT | |
| 01B. | 4249324 | [1] | WASHER | |
| 02. | J281235 | [3] | BOLT;SEMS | |
| 02A. | J901235 | [1] | BOLT | |
| 02B. | 4249324 | [1] | WASHER | |
| 03. | 4363380 | [1] | CAP | |
| 04. | 4279093 | [1] | FILTER | |
| 05. | 4315607 | [1] | PLUG | |
| 06. | Y415909 | [1] | FLOAT | |
| 07. | J450510 | [5] | SCREW;SEMS | |
| 08. | Y406005 | [1] | HOSE;FUEL | |
| 09. | Y406010 | [1] | TUBE | |
| 10. | Y434060 | [2] | HOSE;FUEL | |
| 11. | Y406008 | [2] | TUBE | |
| 12. | Y454028 | [1] | HOSE;FUEL | |
| 13. | Y406009 | [1] | TUBE | |
| 14. | 4339258 | [8] | CLAMP;HOSE | |
| 15. | 4361953 | [1] | JOINT | |
| 16. | 4394363 | [2] | CLAMP;HOSE | |
| 17. | Y415351 | [1] | HOSE;FUEL | |
| 18. | Y415352 | [1] | TUBE;COPPUGATED | |
| 19. | Y971673 | [1] | BRACKET | |
| 20. | J260820 | [2] | BOLT;SEMS | |
| 20A. | J900820 | [1] | BOLT | |
| 20B. | A590108 | [1] | WASHER;PLANE | |
| 22. | J260625 | [2] | BOLT;SEMS | |
| 22A. | J900625 | [1] | BOLT | |
| 22B. | A590106 | [1] | WASHER;PLANE | |
| 23. | A590106 | [2] | WASHER;PLANE | |
| 24. | A590906 | [2] | WASHER;SPRING | |
| 25. | M500605 | [2] | NUT | |
| 26. | 4269607 | [1] | PACKING | |
| 100. | 4647138 | [1] | PUMP (FUEL) | |
| 101. | Y415353 | [1] | RUBBER | |
