纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (09-51) - DECALS - CANADIAN FRENCH New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
182 次

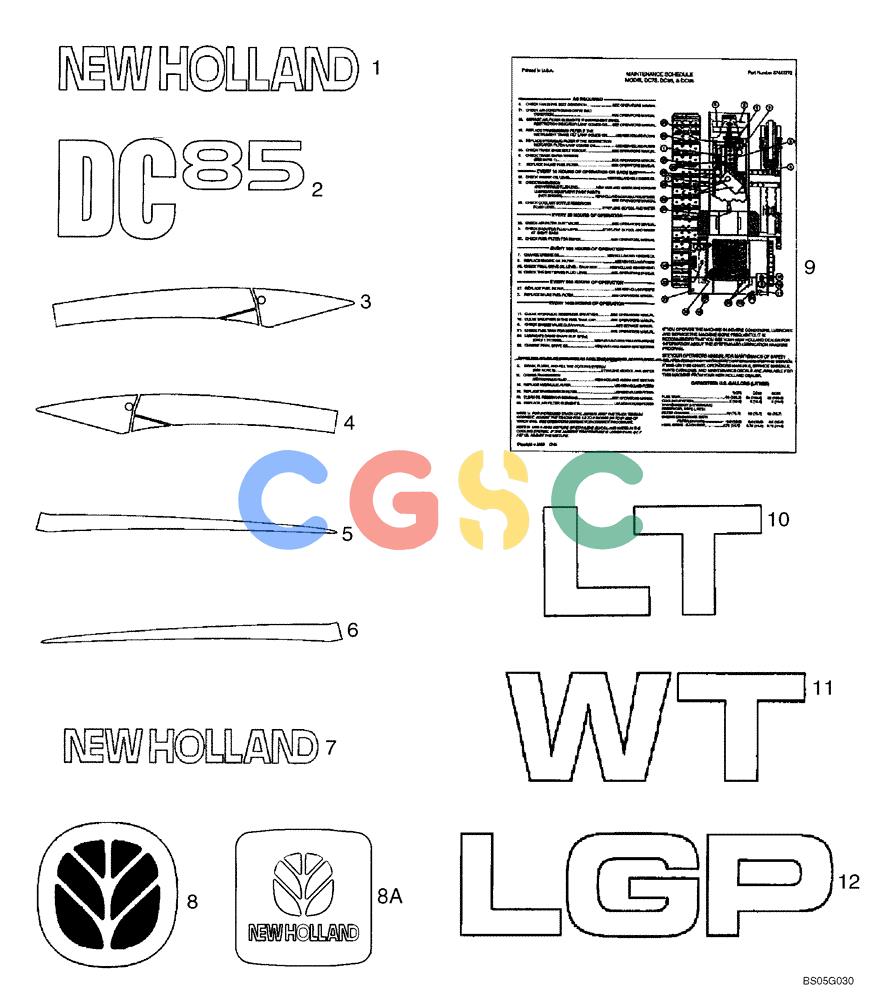

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87444949 | [1] | DECAL | BURNew Holland; Rear |
| 2. | 87444951 | [2] | DECAL | BURModel, DC85 |
| 3. | 87444953 | [1] | DECAL | BURStripe, Front Right Hand |
| 4. | 87444954 | [1] | DECAL | BURStripe, Front Left Hand |
| 5. | 87444957 | [1] | DECAL | BURStripe, Rear Left Hand |
| 6. | 87444958 | [1] | DECAL | BURStripe, Rear Right Hand |
| 7. | 86988147 | [2] | DECAL | BURNew Holland, Sides |
| 8. | 86594513 | [1] | DECAL | NHLeaf Logo |
| 8A. | 87415930 | [3] | DECAL | IMONew Holland; Located In Engine Area |
| 9. | 87453399 | [1] | DECAL | BURMaintenance Schedule |
| 10. | 87444962 | [2] | DECAL | BURLong Track (LT) Models |
| 11. | 87444964 | [2] | DECAL | BURWide Track (WT) Models |
| 12. | 87444961 | [2] | DECAL | BURLow Ground Pressure (LGP) Models |
