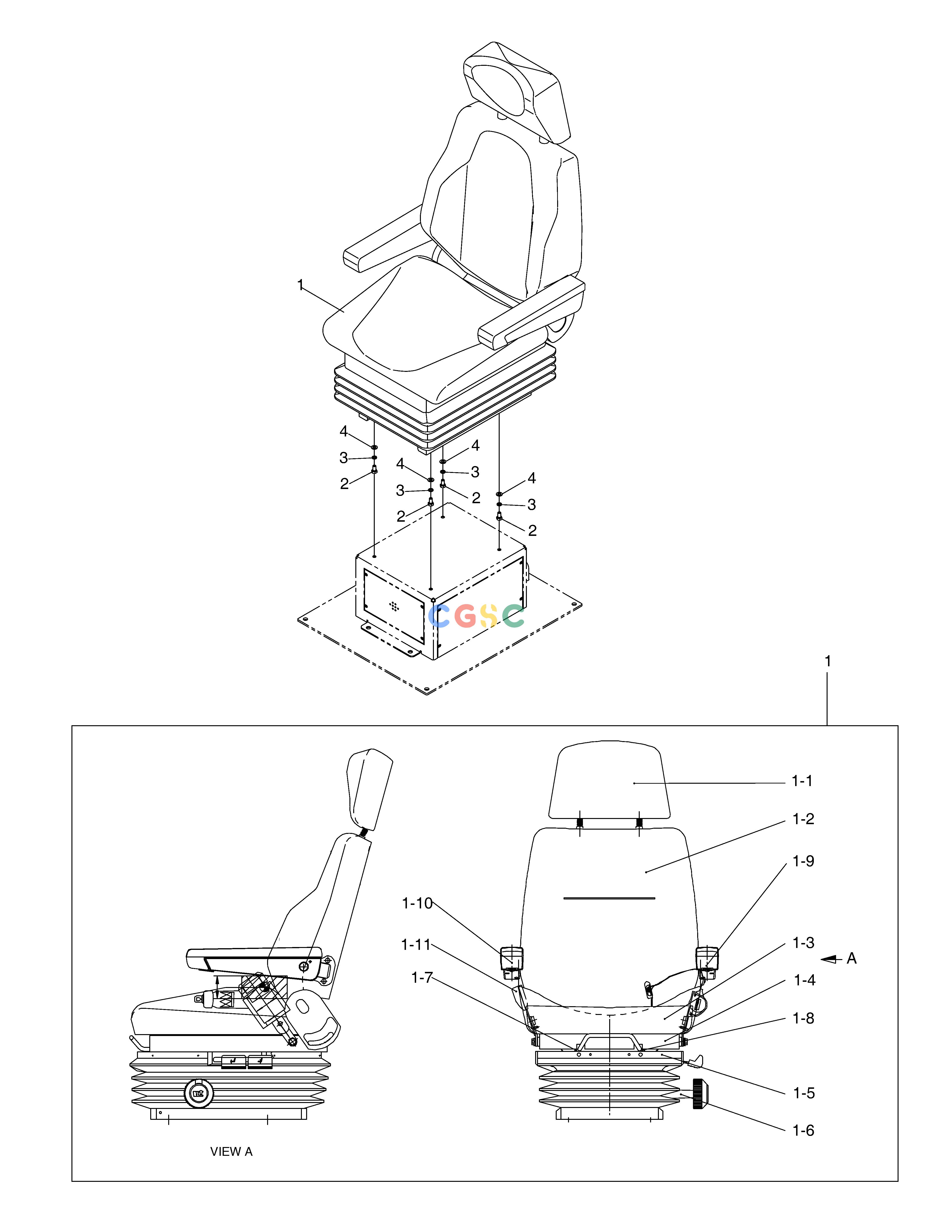

斗山零件查询SEAT SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
310 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110946-00020
|
[-] |
SEAT ASSY;CABIN
|
|
| 1. |
110946-00021
|
[1] |
SEAT;CABIN
|
|
| 1-1. |
220108-00001
|
[1] |
. REST,HEAD
|
|
| 1-10. |
220106-00016
|
[1] |
. REST,ARM;RIGHT
|
|
| 1-11. |
220213-00001
|
[1] |
. BELT,SEAT
|
|
| 1-2. |
230219-00043
|
[1] |
. REST,BACK
|
|
| 1-3. |
180304-00007
|
[1] |
. CUSHION
|
|
| 1-4. |
100101-00010
|
[1] |
. ADJUSTER
|
|
| 1-5. |
900134-00006
|
[1] |
. SHELF
|
|
| 1-6. |
190112-00004
|
[1] |
. SUSPENSION
|
|
| 1-7. |
220212-00005
|
[1] |
. RAIL,SLIDER;RIGHT
|
|
| 1-8. |
220212-00004
|
[1] |
. RAIL,SLIDER;LEFT
|
|
| 1-9. |
220106-00015
|
[1] |
. REST,ARM;LEFT
|
|
| 2. |
S0508863
|
[4] |
BOLT;M8X20
|
|
| 3. |
S5102503
|
[4] |
. WASHER
|
|
| 4. |
S5020513
|
[4] |
WASHER
|
|
