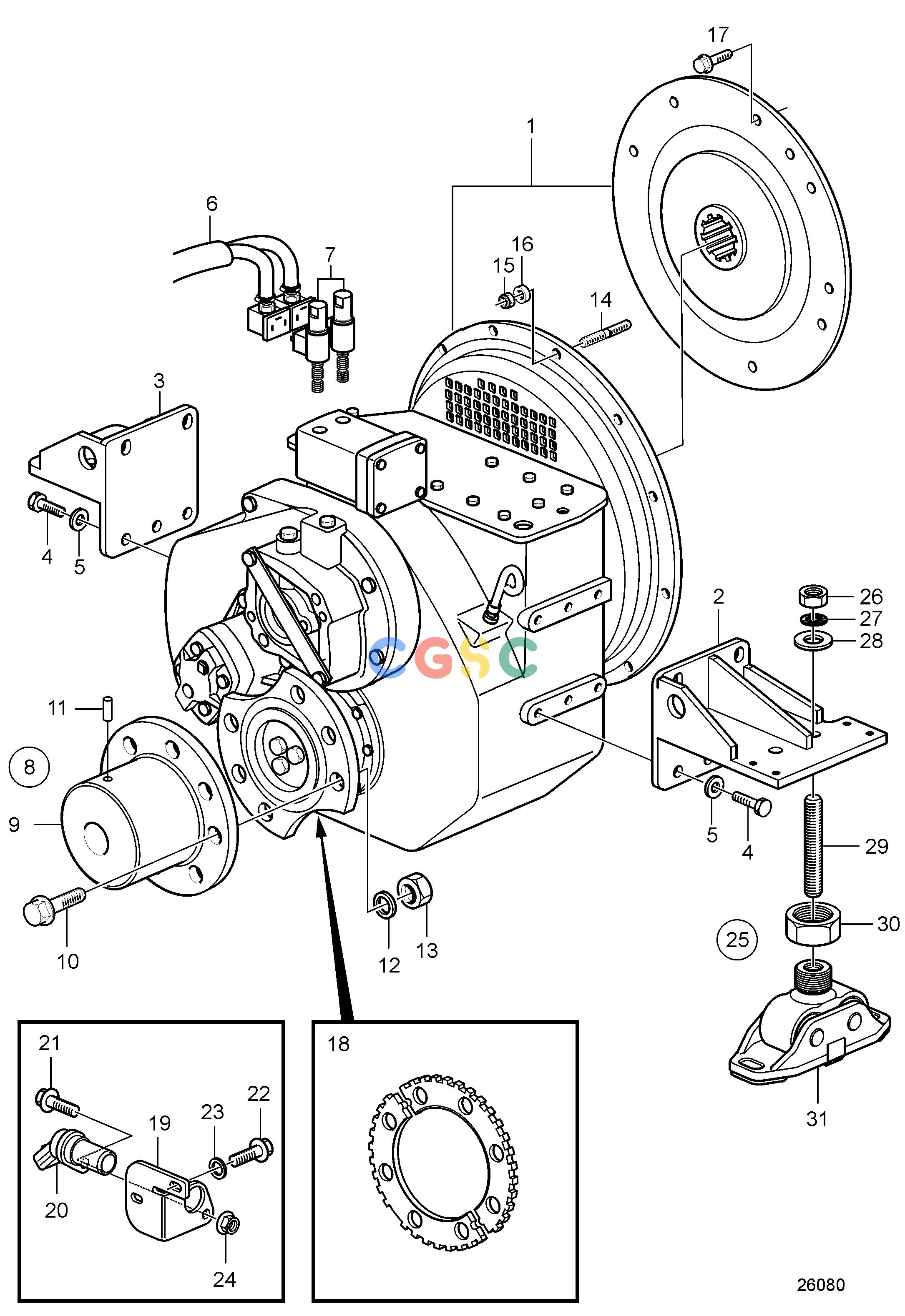

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9TransmissionsConnecting Components Twin Disc MG5114SCEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
145 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
863967
|
[1] |
Bracket, right
|
|
| 3. |
863966
|
[1] |
Bracket, left
|
|
| 4. |
955363
|
[10] |
Hexagon screw
|
|
| 5. |
941912
|
[10] |
Spring washer
|
|
| 6. |
3594240
|
[1] |
Wiring harness
|
|
| 7. |
3587982
|
[2] |
Shift valve
|
12V
|
| 7. |
3587981
|
[2] |
Shift valve
|
24V
|
| 8. |
|
|
|
|
| 9. |
844765
|
[1] |
Clutch flange
|
|
| 10. |
955764
|
[6] |
Hexagon screw
|
|
| 11. |
|
|
|
|
| 12. |
941915
|
[6] |
Spring washer
|
|
| 13. |
950380
|
[6] |
Lock nut
|
|
| 14. |
479972
|
[10] |
Stud
|
|
| 15. |
990980
|
[10] |
Lock nut
|
|
| 16. |
823575
|
[10] |
Spacer sleeve
|
|
| 17. |
984816
|
[8] |
Flange screw
|
|
| 18. |
3819856
|
[2] |
Sprocket wheel
|
|
| 19. |
3840435
|
[1] |
Bracket
|
|
| 20. |
20513343
|
[1] |
Sensor
|
|
| 21. |
984725
|
[1] |
Flange screw
|
|
| 22. |
967949
|
[2] |
Flange screw
|
|
| 23. |
949607
|
[2] |
Spring washer
|
|
| 24. |
990949
|
[1] |
Flange lock nut
|
|
| 25. |
3843493
|
[2] |
Rubber cushion kit
|
|
| 26. |
990973
|
[1] |
Hexagon nut
|
|
| 27. |
990697
|
[1] |
Lock washer
|
|
| 28. |
991994
|
[1] |
Washer
|
|
| 29. |
3817323
|
[1] |
Adjusting screw
|
|
| 30. |
3840980
|
[1] |
Nut
|
|
| 31. |
|
|
|
|
