纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (05-07) - TRACK ROLLER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
984 次

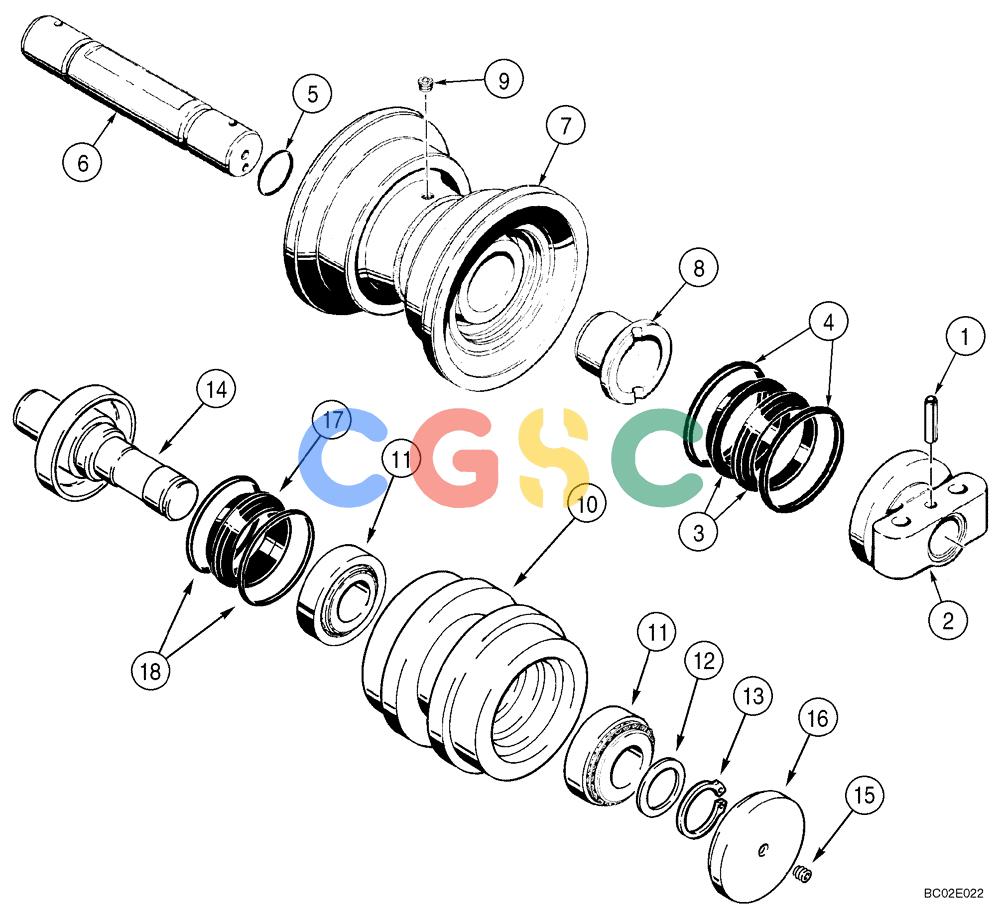

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 86987766 | [12] | ROLLER ASSY. | CASIncl. Ref 1 - 9 Superseded by part number: 87581582 |
| 1. | R33563 | [2] | ROLL PIN | CASRoll |
| 2. | 427026A1 | [2] | BRACKET | BUR |
| . . | S113075 | [2] | SEAL | CASIncl. Ref 3, 4 |
| 3. | NSS | [2] | NOT SERVICED SEPARATELY | CONSeal |
| 4. | N6846 | [2] | O-RING,75.7mm ID x 9.5mm Width | CASFace Seal |
| 5. | 238-5224 | [2] | O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro | CAS Superseded by part number: 510120 |
| 6. | R33561 | [1] | SHAFT | CAS |
| 8. | R33556 | [2] | BUSHING,50.28mm ID x 70.5mm OD x 46mm L | CAS |
| 9. | R33557 | [1] | PLUG | CAS Superseded by part number: J2537437 |
| . . | 86987739 | [2] | ROLLER, TRACK | CASCarrier; Incl. Ref 10 - 18; Service As A Complete Assembly Superseded by part number: 87314691 |
| 11. | 3142394R91 | [2] | TAPERED ROLLER BEARING | IH Superseded by part number: 87668909 |
| 12. | 198945A1 | [1] | SPACER | CAS |
| 13. | 800-5140 | [1] | SNAP RING,M40, Ext, Hvy | CAS Superseded by part number: 370006 |
| 14. | 198946A1 | [1] | SHAFT ASSY. | CAS Superseded by part number: 87314691 |
| . . | R33607 | [1] | SEAL | CASFace; Incl. Ref 17, 18 Superseded by part number: D8846056 |
| 18. | N6847 | [2] | O-RING,75mm ID x 8mm Width | CAS |
