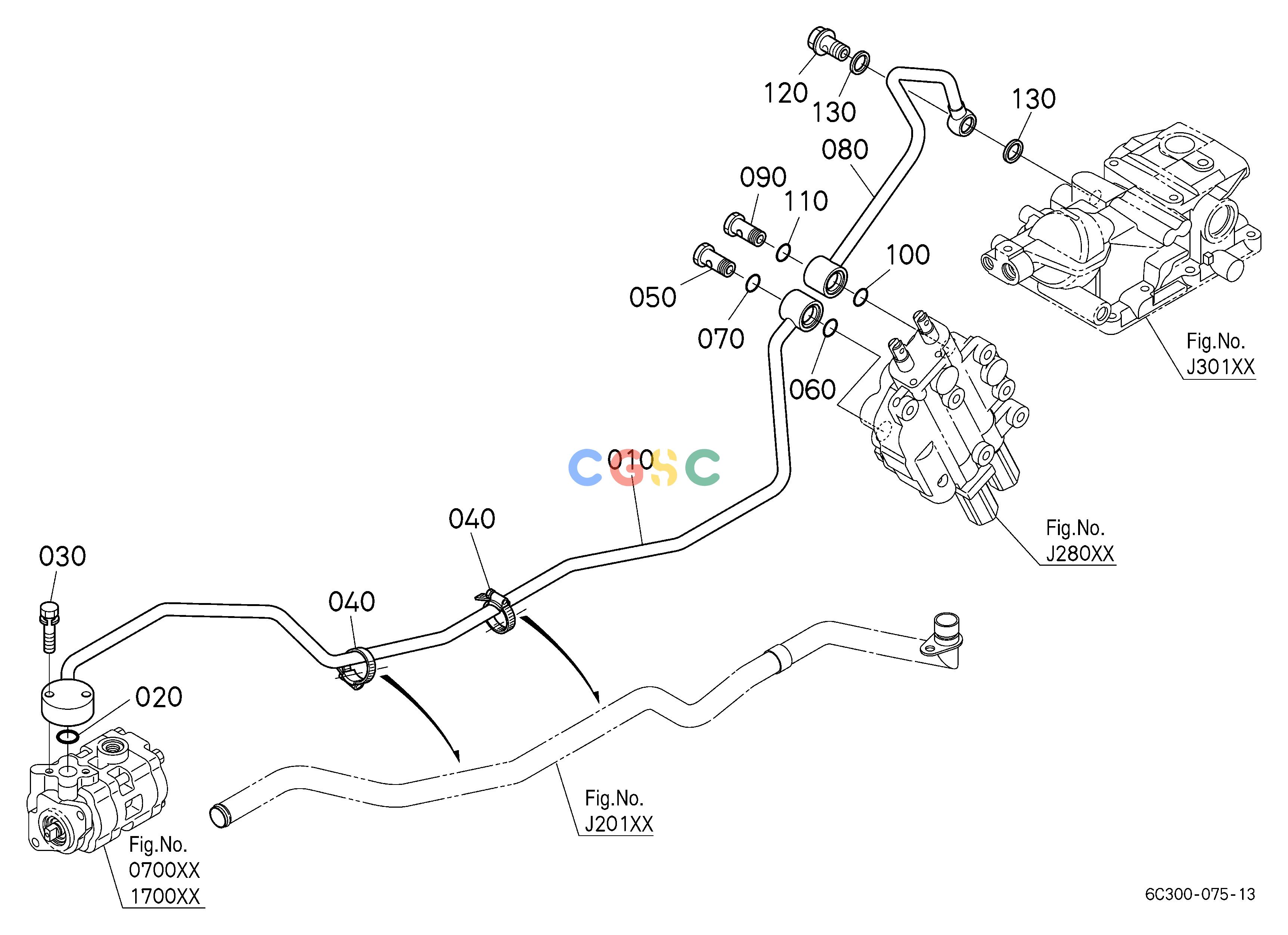

久保田零件查询J21002 HYDRAULIC OIL LINE (DELIVERY) ## S.No.>=53962 S.No.;>=53962 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
146 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C30039213
|
[1] |
PIPE,DELIVERY
|
1.6280(lbs); 0.740
|
| 020. |
0481700200
|
[1] |
O RING
|
0.0242(lbs); 0.011
|
| 030. |
0112350835
|
[2] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 040. |
6795536230
|
[2] |
CLAMP
|
0.0506(lbs); 0.023
|
| 050. |
7553861320
|
[1] |
BOLT,JOINT
|
0.2090(lbs); 0.095
|
| 060. |
0481700210
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
0481600160
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 080. |
6C30039233
|
[1] |
PIPE,DELIVERY
|
0.5060(lbs); 0.230
|
| 090. |
7553861320
|
[1] |
BOLT,JOINT
|
0.2090(lbs); 0.095
|
| 100. |
0481700210
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 110. |
0481600160
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 120. |
6A32039293
|
[1] |
BOLT(JOINT)
|
0.0000(lbs); 0.000
|
| 120. |
6A32039294
|
[1] |
BOLT,JOINT
|
0.1100(lbs); 0.050
|
| 130. |
6711137180
|
[2] |
GASKET
|
0.0066(lbs); 0.003
|
