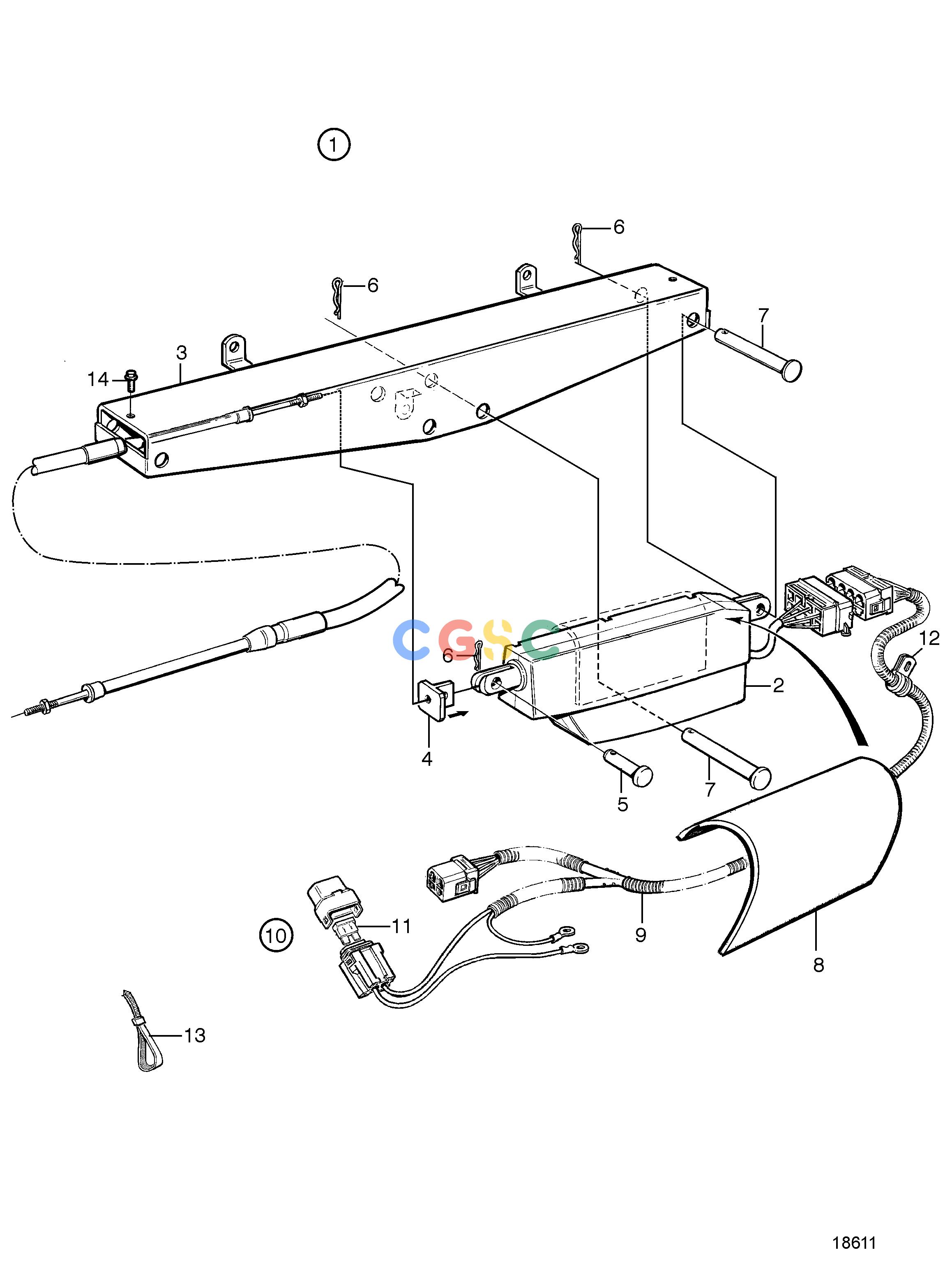

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1EControlsActuatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
175 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
3582818
|
[1] |
Actuator
|
|
| 3. |
3581577
|
[1] |
Anchorage
|
|
| 4. |
3581578
|
[1] |
Anchorage
|
|
| 5. |
964858
|
[1] |
Clevis pin
|
D=10mm
|
| 5. |
|
|
|
D=8mm
|
| 6. |
664822
|
[3] |
Split pin
|
|
| 7. |
964865
|
[2] |
Clevis pin
|
|
| 8. |
3581646
|
[1] |
Spacer
|
|
| 9. |
873851
|
[1] |
Cable kit
|
|
| 10. |
873852
|
[1] |
Fuse holder
|
|
| 11. |
969160
|
[1] |
Fuse
|
5A
|
| 12. |
952628
|
[1] |
Clamp
|
|
| 13. |
949666
|
[10] |
Cable tie
|
|
| 14. |
969407
|
[1] |
Six point socket scr
|
|
