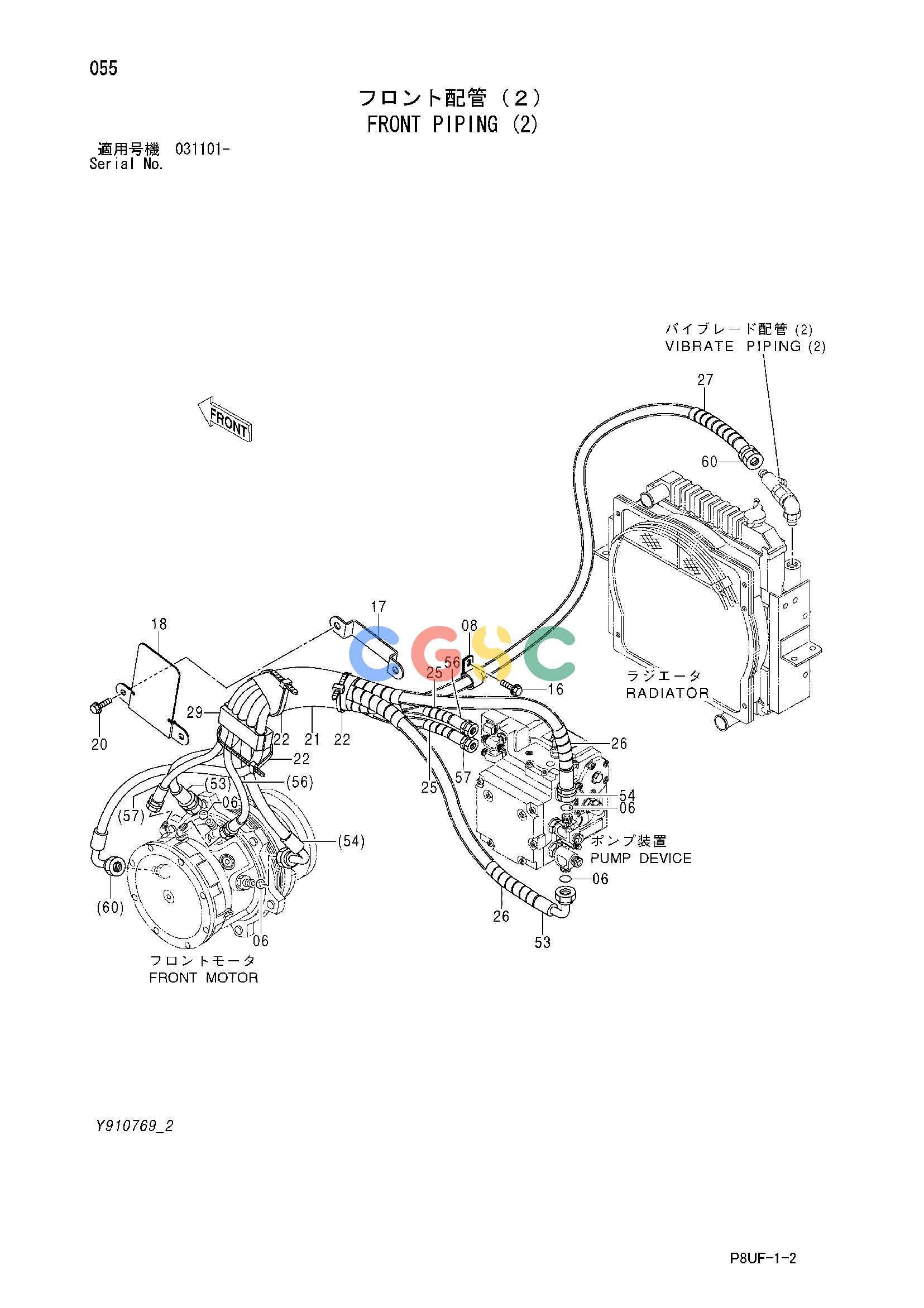

日立零件查询（CC150C-3A）FRONT PIPING (2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
341 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 06. | 4138938 | [4] | O-RING | |
| 08. | 4192035 | [1] | CLIP | |
| 16. | J271025 | [1] | BOLT;SEMS | |
| 16A. | J901025 | [1] | BOLT | |
| 16B. | J222010 | [1] | WASHER | |
| 17. | Y415989 | [1] | PLATE | |
| 18. | Y971733 | [1] | COVER | |
| 20. | J271020 | [2] | BOLT;SEMS | |
| 20A. | J901020 | [1] | BOLT | |
| 20B. | J222010 | [1] | WASHER | |
| 21. | 4370544 | [1] | SEAT;RUBBER | |
| 22. | 4323613 | [5] | CLIP;BAND | |
| 25. | 4327293 | [2] | PROTECTOR | |
| 26. | 4327294 | [4] | PROTECTOR | |
| 27. | 4446406 | [3] | PROTECTOR | |
| 29. | Y416063 | [1] | CLAMP | |
| 53. | Y415831 | [1] | HOSE | |
| 54. | Y405333 | [1] | HOSE | |
| 56. | Y415991 | [1] | HOSE | |
| 57. | Y415992 | [1] | HOSE | |
| 60. | Y415990 | [1] | HOSE | |
