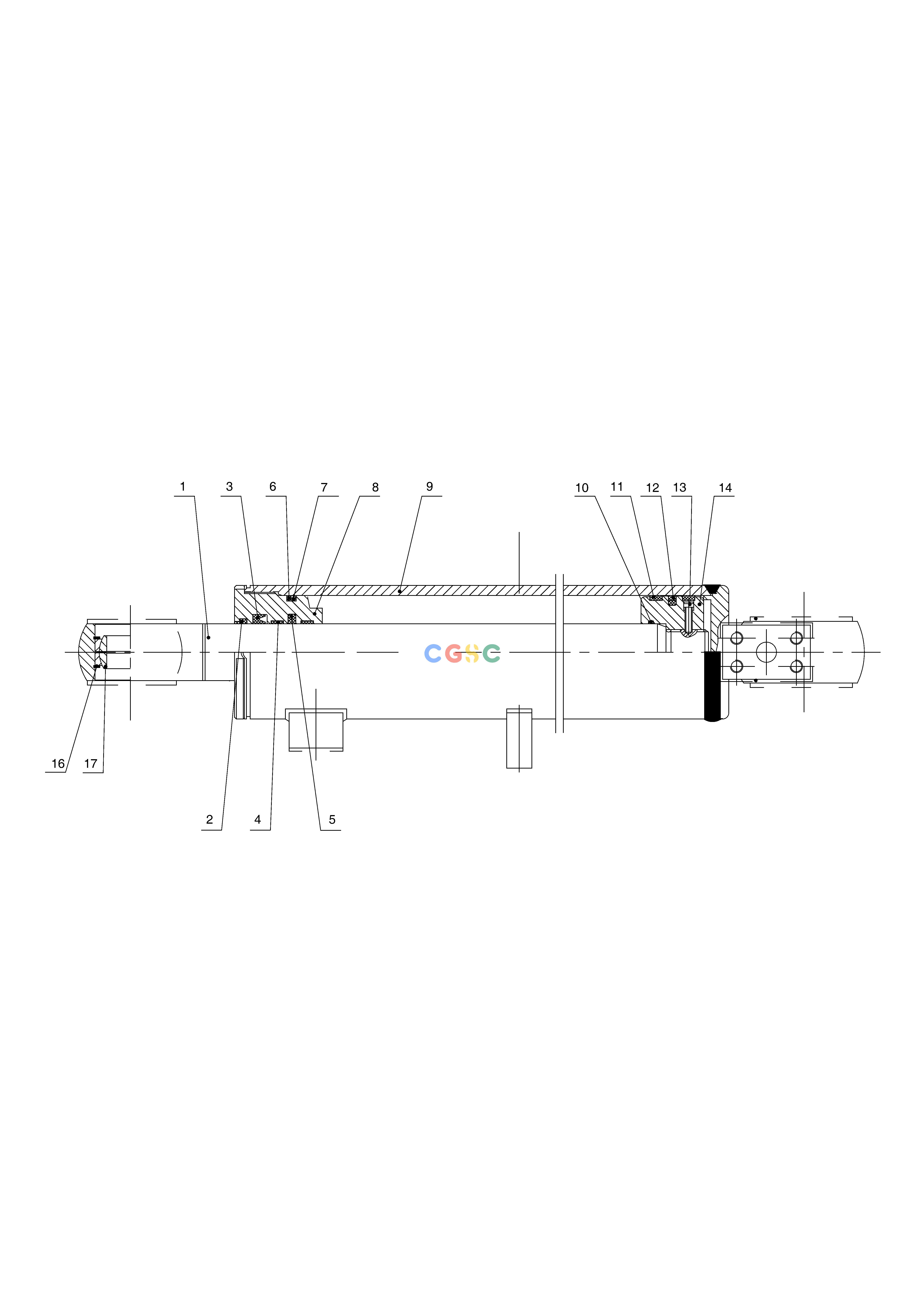

斗山零件查询STEERING CYLINDER(L.H) SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
122 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
101529-00003
|
[1] |
SEAL KIT,STEERING CYLINGDER
|
|
| . |
101529-00896
|
[1] |
SEAL KIT,STEERING CYLINGDER
|
|
| -. |
K1042144
|
[1] |
CYLINDER;STEERING(L.H)
|
|
| 1. |
K9008264
|
[1] |
|
|
| 10. |
401002-00074
|
[1] |
RING,O;55X3.1
|
|
| 11. |
K9008126
|
[2] |
SUPPORTING RING
|
|
| 12. |
401001-00004
|
[1] |
RING,GLYD
|
|
| 13. |
K9008145
|
[1] |
BOLT
|
|
| 14. |
K9008263
|
[1] |
|
|
| 16. |
K9008121
|
[4] |
|
|
| 17. |
K9008154
|
[2] |
|
|
| 2. |
401003-00062
|
[1] |
RING,DUST
|
|
| 2. |
401003-00850
|
[1] |
RING,DUST
|
|
| 3. |
401109-00038
|
[1] |
SEALRING
|
|
| 3. |
401109-00170
|
[1] |
SEALRING
|
|
| 4. |
401003-00123
|
[2] |
RING,SUPPORT
|
|
| 5. |
401003-00115
|
[1] |
RING;SLOWING DOWN
|
|
| 6. |
111104-00044
|
[1] |
RING,SNAP;90X84X1.5
|
|
| 7. |
401002-00073
|
[1] |
RING,O;90X3.5
|
|
| 7. |
401002-01722
|
[1] |
RING,O;95X3.1
|
|
| 8. |
K9008265
|
[1] |
|
|
| 9. |
K9008266
|
[1] |
|
|
