纽荷兰零件查询(DC95) - CRAWLER DOZER (8/04-) (02-10) - CYLINDER BLOCK New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
853 次

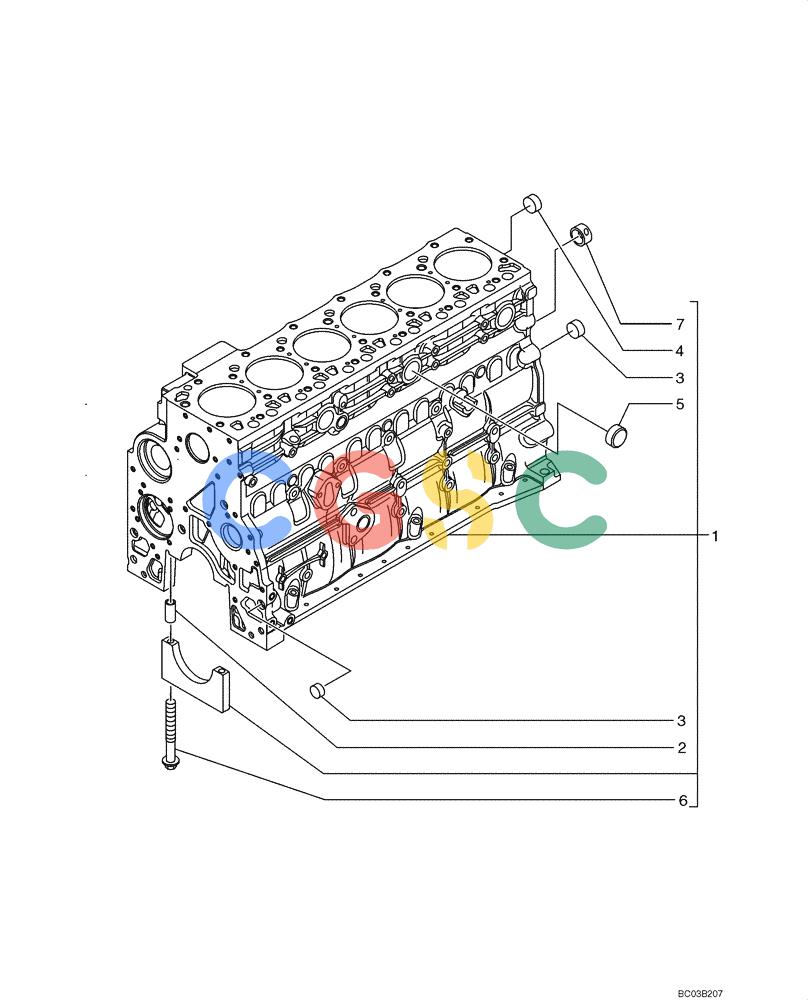

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2830076 | [1] | CYLINDER BLOCK,6 Cylinders | TORIncl. 2 - 7 |
| . . | NSS | [5] | NOT SERVICED SEPARATELY | CONCAP MAIN BEARING |
| 2. | 4899026 | [14] | DOWEL,M18 x 10 | TOR |
| 3. | 4895039 | [3] | EXPANSION PLUG,M17.73 | TOR |
| 4. | 4895038 | [6] | EXPANSION PLUG,M58.06 | TOR |
| 5. | 4895228 | [3] | EXPANSION PLUG,35.23mm x 7.94mm | TOR |
| 6. | 4891353 | [14] | SCREW,Flg Hd, M12 x 1.5 x 120 | TOR |
| 7. | 4895040 | [1] | BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L | TOR |
