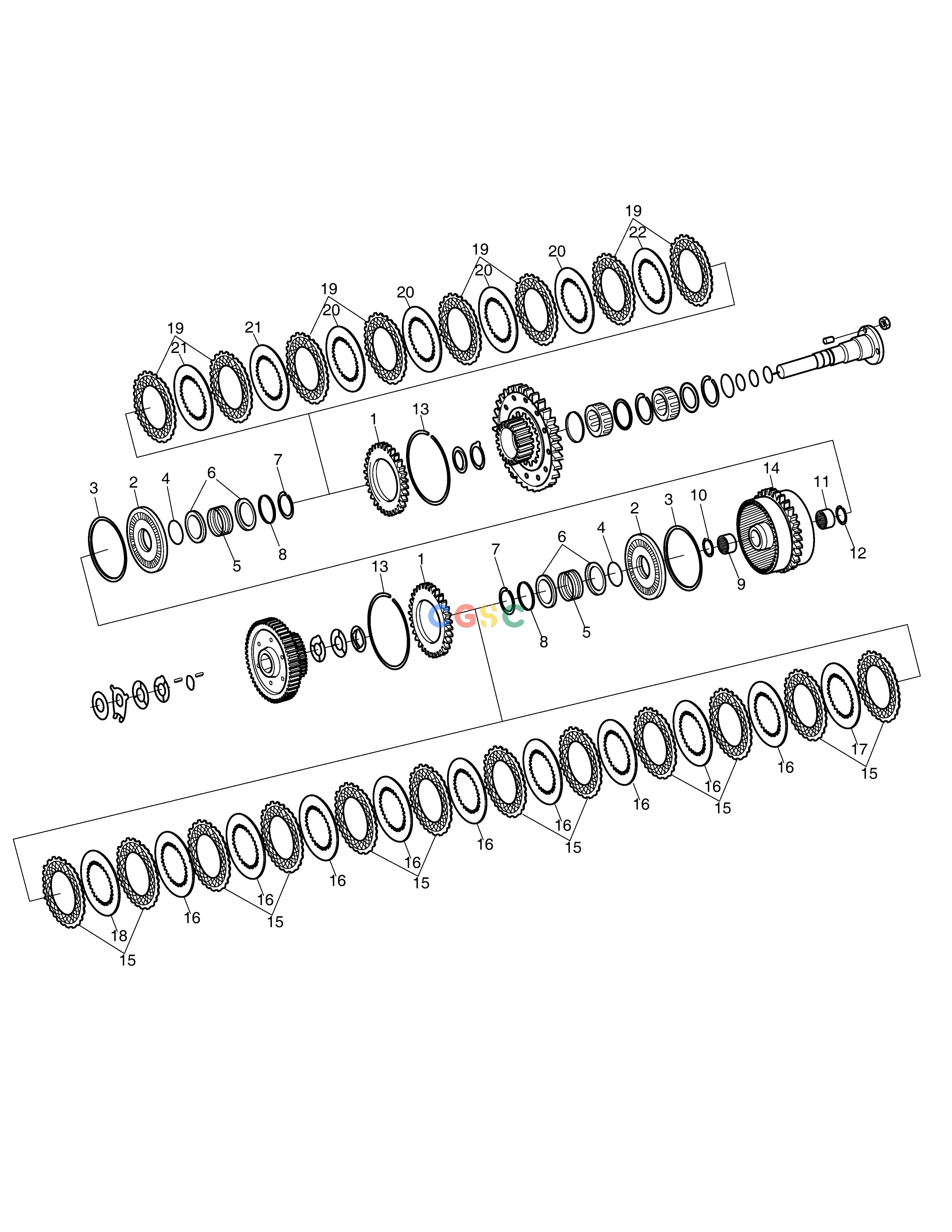

斗山零件查询TRANSMISSION-COUPLING(3)-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
175 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1.114-00162
|
[2] |
|
|
| 10. |
1.115-00083
|
[1] |
|
|
| 11. |
1.109-00061
|
[1] |
|
|
| 12. |
1.115-00084
|
[1] |
|
|
| 13. |
1.115-00312
|
[2] |
RING;SNAP A=2.10
|
|
| 13. |
1.115-00313
|
[2] |
RING;SNAP A=2.20
|
|
| 13. |
1.115-00314
|
[2] |
RING;SNAP A=2.30
|
|
| 13. |
1.115-00315
|
[2] |
RING;SNAP A=2.40
|
|
| 13. |
1.115-00316
|
[2] |
RING;SNAP A=2.50
|
|
| 14. |
100502-00225
|
[1] |
|
|
| 15. |
1.222-00025
|
[12] |
|
|
| 16. |
1.222-00020
|
[9] |
|
|
| 17. |
1.222-00021
|
[1] |
|
|
| 18. |
1.222-00020
|
[1] |
|
|
| 18. |
1.222-00021
|
[1] |
|
|
| 19. |
1.222-00025
|
[8] |
|
|
| 2. |
1.409-00019
|
[2] |
|
|
| 20. |
1.222-00020
|
[4] |
|
|
| 21. |
1.222-00021
|
[2] |
|
|
| 22. |
1.222-00020
|
[1] |
|
|
| 22. |
1.222-00021
|
[1] |
|
|
| 3. |
1.180-00356
|
[2] |
|
|
| 4. |
1.180-00357
|
[2] |
|
|
| 5. |
1.131-00082
|
[2] |
. SPRING;COMPR
|
|
| 6. |
1.115-00227
|
[4] |
. RING;GUIDE
|
|
| 7. |
1.180-00378
|
[2] |
|
|
| 8. |
1.115-00228
|
[2] |
|
|
| 9. |
2.109-00185
|
[1] |
|
|
