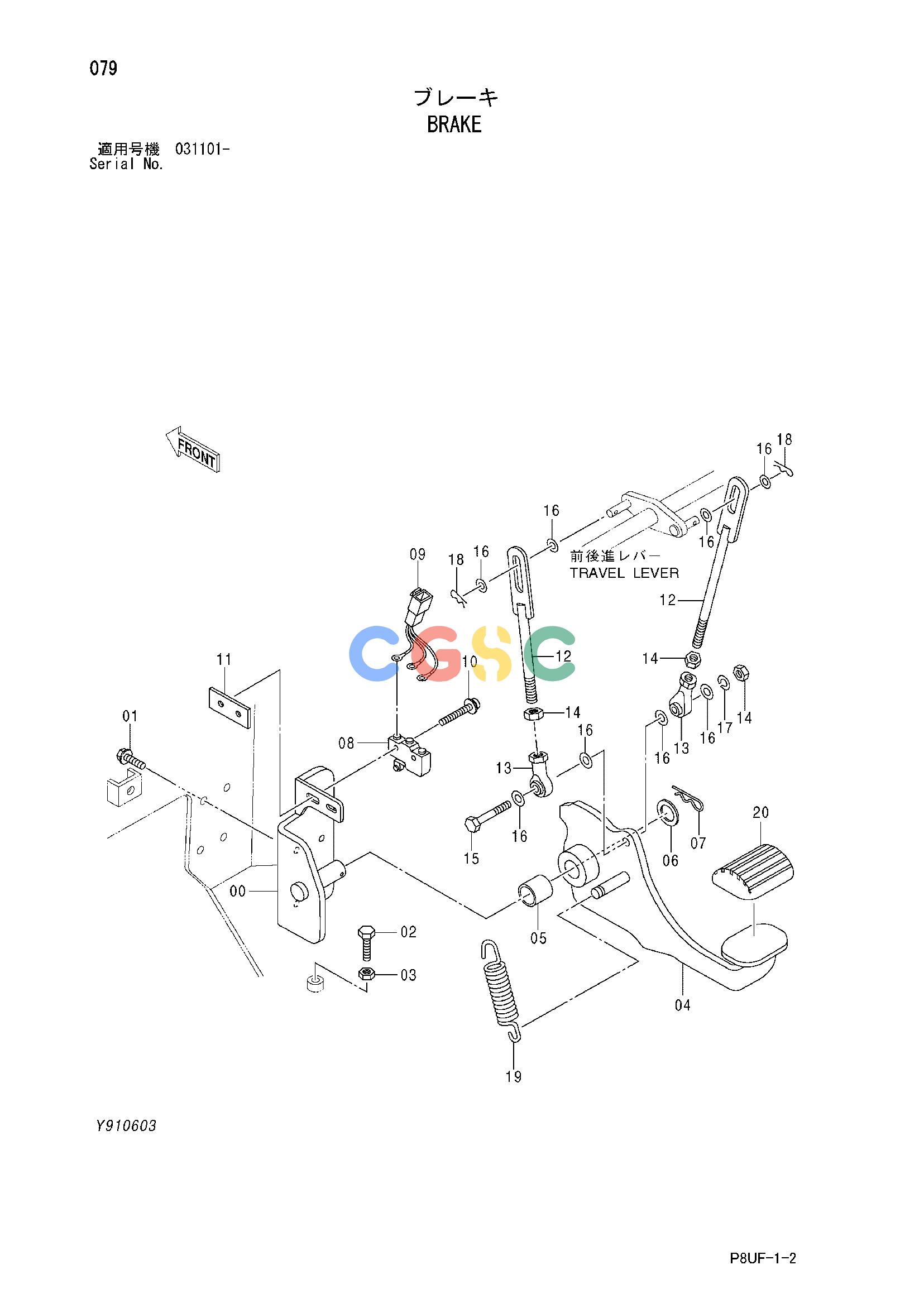

日立零件查询（CC150C-3A）BRAKE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
940 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y802621 | [1] | BRACKET | |
| 01. | J271025 | [4] | BOLT;SEMS | |
| 01A. | J901025 | [1] | BOLT | |
| 01B. | J222010 | [1] | WASHER | |
| 02. | M261040 | [1] | BOLT | |
| 03. | J950010 | [1] | NUT | |
| 04. | Y802622 | [1] | PEDAL | |
| 05. | Y405231 | [1] | BUSHING | |
| 06. | A590120 | [1] | WASHER;PLANE | |
| 07. | 4077248 | [1] | PIN;LOCK | |
| 08. | 4261681 | [1] | SWITCH;LIMIT | |
| 09. | Y414924 | [1] | HARNESS;WIRE | |
| 10. | J460430 | [2] | SCREW;SEMS | |
| 11. | Y415916 | [1] | SEAT;SCREW | |
| 12. | Y971709 | [2] | ROD | |
| 13. | 4120969 | [2] | END;ROD | |
| 14. | J950008 | [3] | NUT | |
| 15. | J900855 | [1] | BOLT | |
| 16. | A590108 | [8] | WASHER;PLANE | |
| 17. | A590908 | [1] | WASHER;SPRING | |
| 18. | 4022697 | [2] | PIN;LOCK | |
| 19. | 3063332 | [1] | SPRING;TENSION | |
| 20. | 4338278 | [1] | COVER | |
