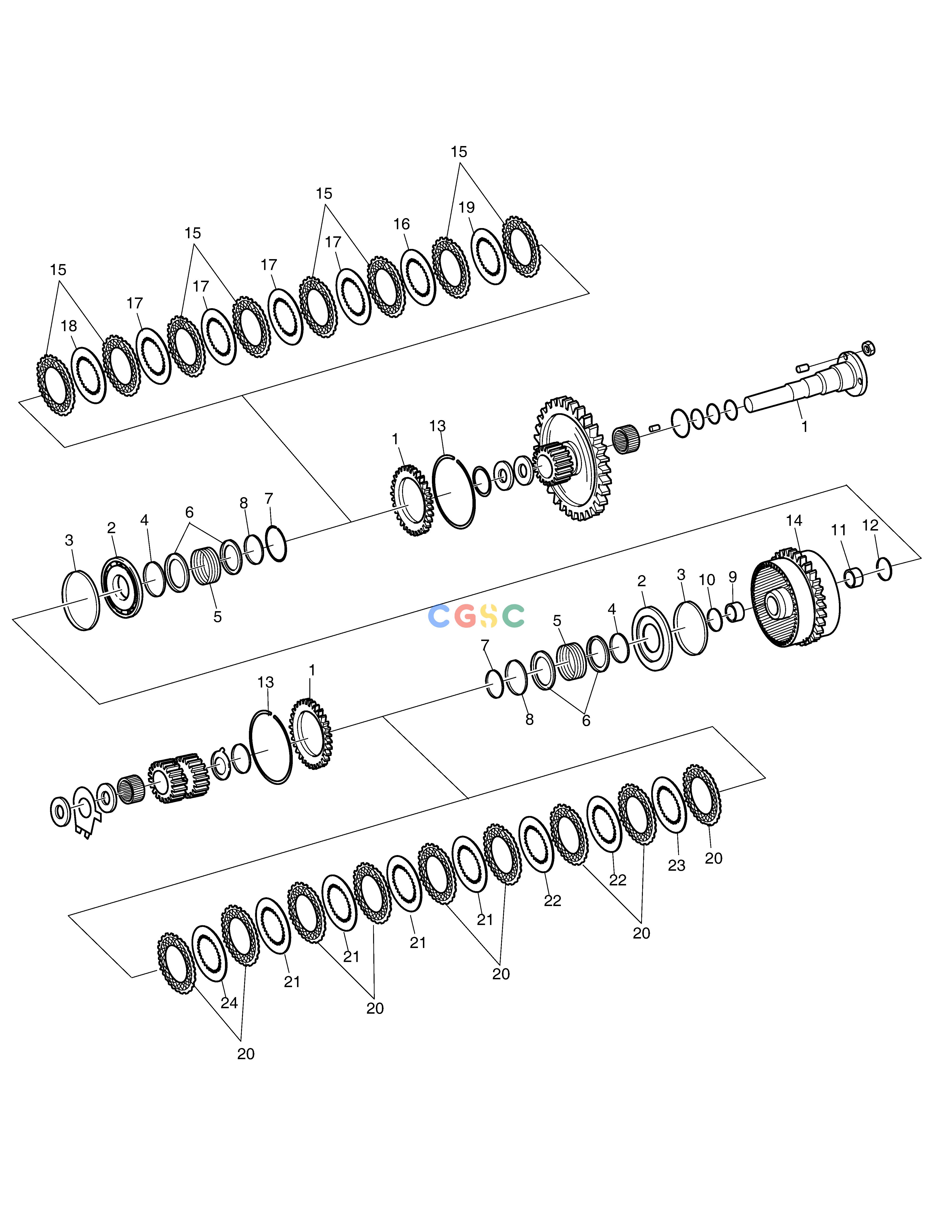

斗山零件查询TRANSMISSION-COUPLING(5)-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
553 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
2.114-00617
|
[2] |
|
|
| 10. |
1.115-00083
|
[1] |
|
|
| 11. |
1.109-00047
|
[1] |
|
|
| 12. |
1.115-00084
|
[1] |
|
|
| 13. |
1.115-00348
|
[2] |
. RING;SNAP S=2.1
|
|
| 13. |
1.115-00349
|
[2] |
|
|
| 13. |
1.115-00350
|
[2] |
|
|
| 13. |
1.115-00351
|
[2] |
. RING;SNAP S=2.25
|
|
| 13. |
1.115-00352
|
[2] |
|
|
| 13. |
1.115-00353
|
[2] |
|
|
| 13. |
1.115-00354
|
[2] |
. RING;SNAP S=2.4
|
|
| 13. |
1.115-00355
|
[2] |
|
|
| 13. |
1.115-00356
|
[2] |
|
|
| 14. |
1.230-00026
|
[1] |
|
|
| 15. |
1.222-00026
|
[10] |
|
|
| 16. |
1.222-00022
|
[1] |
|
|
| 17. |
1.222-00023
|
[6] |
|
|
| 18. |
1.222-00024
|
[1] |
|
|
| 19. |
1.222-00022
|
[1] |
|
|
| 19. |
1.222-00023
|
[1] |
|
|
| 19. |
1.222-00024
|
[1] |
|
|
| 2. |
130602-00102
|
[2] |
|
|
| 20. |
1.222-00026
|
[9] |
|
|
| 21. |
1.222-00022
|
[4] |
|
|
| 22. |
1.222-00023
|
[2] |
|
|
| 23. |
1.222-00024
|
[1] |
|
|
| 24. |
1.222-00022
|
[1] |
|
|
| 24. |
1.222-00023
|
[1] |
|
|
| 24. |
1.222-00024
|
[1] |
|
|
| 3. |
1.180-00350
|
[2] |
|
|
| 4. |
1.180-00357
|
[2] |
|
|
| 5. |
1.131-00082
|
[2] |
. SPRING;COMPR
|
|
| 6. |
1.115-00227
|
[4] |
. RING;GUIDE
|
|
| 7. |
1.180-00378
|
[2] |
|
|
| 8. |
1.115-00228
|
[2] |
|
|
| 9. |
1.425-00008
|
[1] |
|
|
