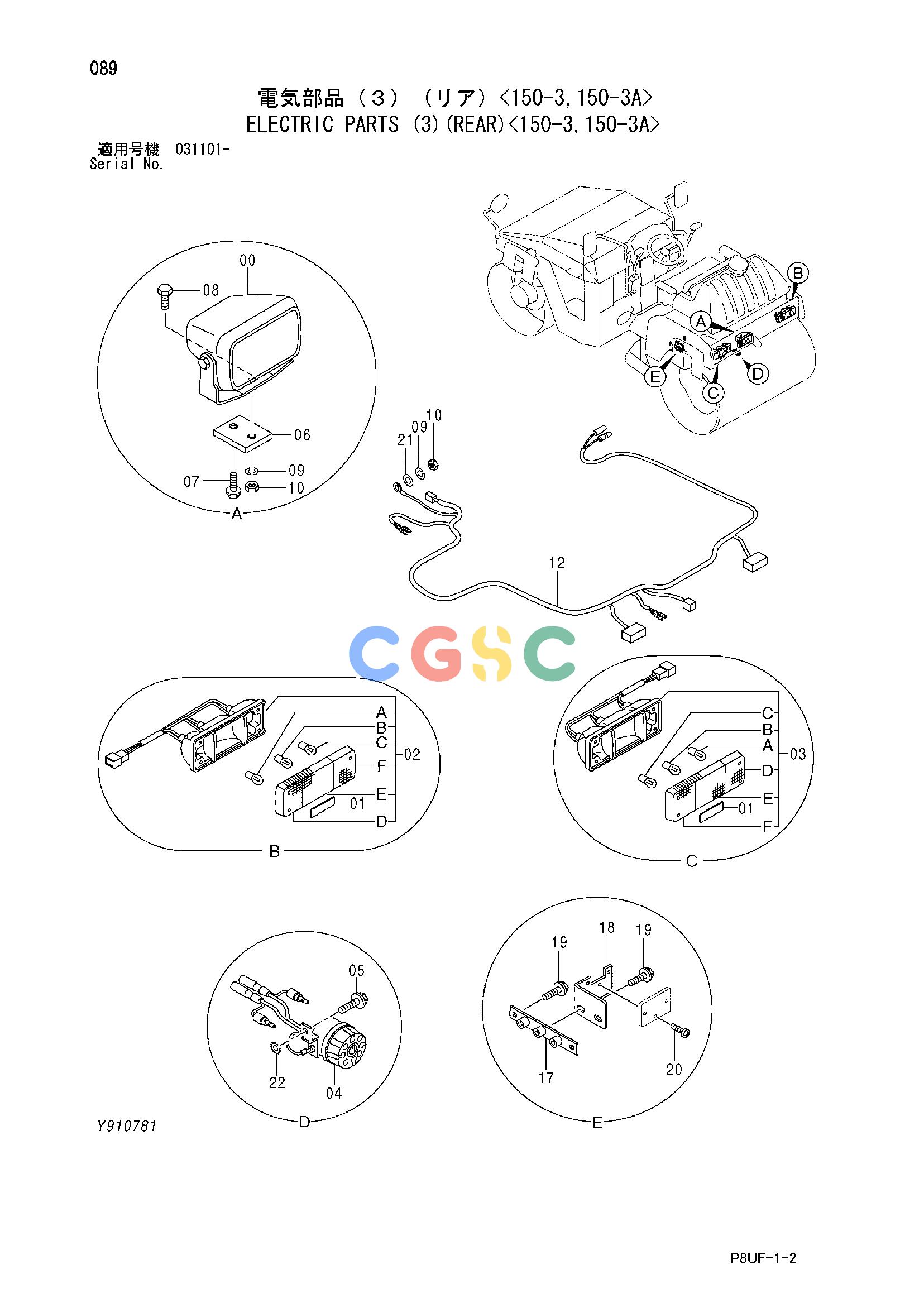

日立零件查询（CC150C-3A）ELECTRIC PARTS (3)(REAR)<150-3,150-3A> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
1020 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y405692 | [1] | LAMP;WORKING | |
| 00A. | Y410793 | [1] | BULB | |
| 00B. | Y410794 | [1] | LENS | |
| 01. | 4489223 | [2] | REFLECTOR | |
| 02. | Y415207 | [1] | LAMP;REAR | |
| 02A. | Y415666 | [1] | BULE | |
| 02B. | Y415667 | [1] | BULE | |
| 02C. | Y415666 | [1] | BULE | |
| 02D. | 4661243 | [1] | LENS | |
| 02E. | 4661242 | [1] | LENS | |
| 02F. | 4661241 | [1] | LENS | |
| 03. | Y415208 | [1] | LAMP;REAR | |
| 03A. | Y415666 | [1] | BULE | |
| 03B. | Y415667 | [1] | BULE | |
| 03C. | Y415666 | [1] | BULE | |
| 03D. | 4661240 | [1] | LENS | |
| 03E. | 4661239 | [1] | LENS | |
| 03F. | 4661238 | [1] | LENS | |
| 04. | 4363322 | [1] | ALARM | |
| 05. | J260814 | [1] | BOLT;SEMS | |
| 05A. | J900814 | [1] | BOLT | |
| 05B. | A590108 | [1] | WASHER;PLANE | |
| 06. | Y405691 | [1] | PLATE | |
| 07. | J271030 | [1] | BOLT;SEMS | |
| 07A. | J901030 | [1] | BOLT | |
| 07B. | J222010 | [1] | WASHER | |
| 08. | J901025 | [1] | BOLT | |
| 09. | A590910 | [2] | WASHER;SPRING | |
| 10. | J950010 | [2] | NUT | |
| 12. | Y415937 | [1] | HARNESS;WIRE | |
| 17. | Y971707 | [1] | BRACKET | |
| 18. | Y415669 | [1] | BRACKET | |
| 19. | J271020 | [4] | BOLT;SEMS | |
| 19A. | J901020 | [1] | BOLT | |
| 19B. | J222010 | [1] | WASHER | |
| 20. | J460420 | [3] | SCREW;SEMS | |
| 21. | A590110 | [1] | WASHER;PLANE | |
| 22. | Y403796 | [1] | WASHER;TOOTH | |
