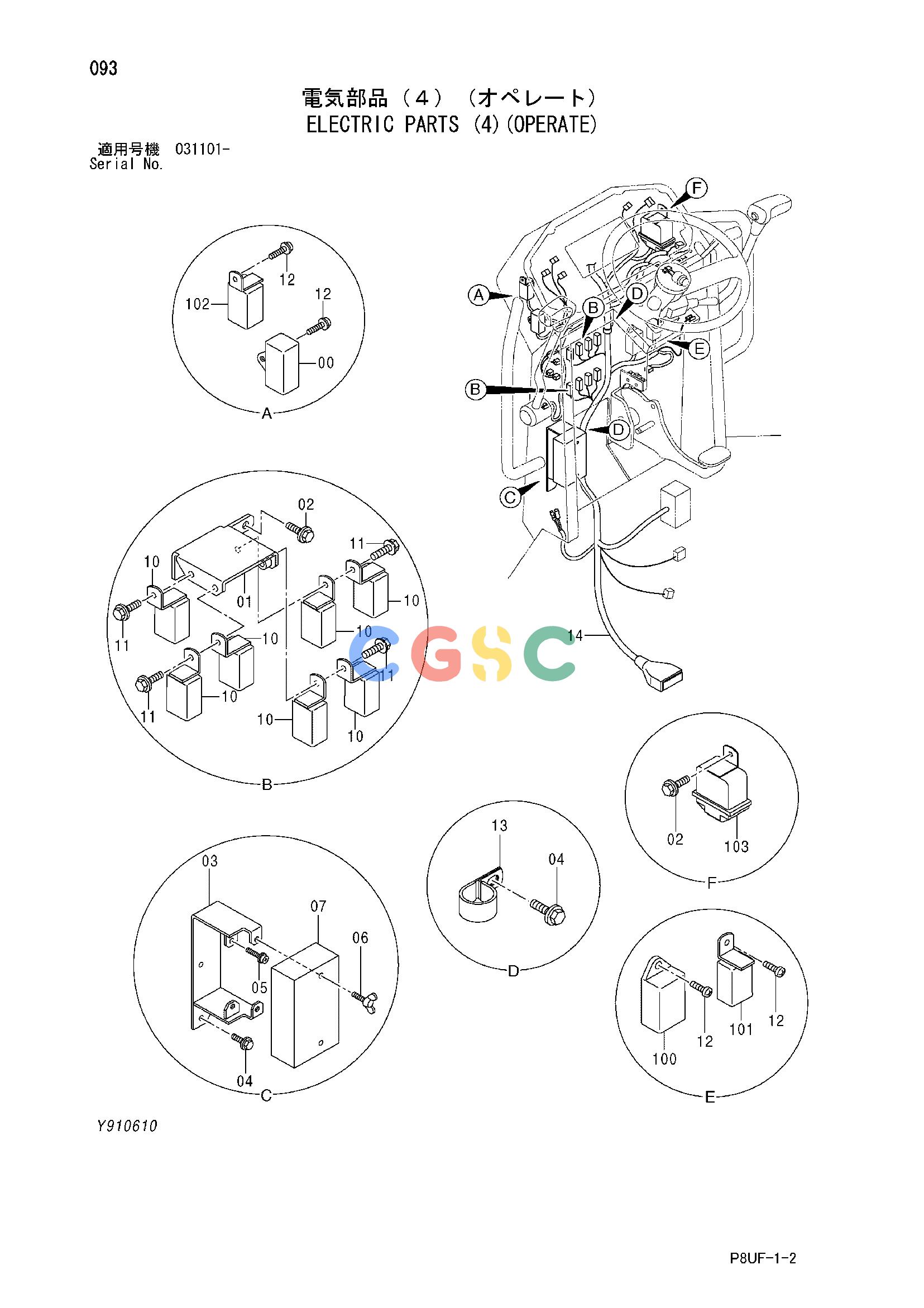

日立零件查询（CC150C-3A）ELECTRIC PARTS (4)(OPERATE) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
166 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y434094 | [1] | RELAY | |
| 01. | Y802518 | [2] | BRACKET | |
| 02. | J260814 | [5] | BOLT;SEMS | |
| 02A. | J900814 | [1] | BOLT | |
| 02B. | A590108 | [1] | WASHER;PLANE | |
| 03. | Y802617 | [1] | BRACKET | |
| 04. | J271016 | [4] | BOLT;SEMS | |
| 04A. | J901016 | [1] | BOLT | |
| 04B. | J222010 | [1] | WASHER | |
| 05. | J450512 | [2] | SCREW;SEMS | |
| 06. | M360610 | [2] | BOLT;WING | |
| 07. | Y406459 | [1] | COVER | |
| 10. | 4607115 | [14] | RELAY | |
| 11. | J260612 | [8] | BOLT;SEMS | |
| 11A. | J900612 | [1] | BOLT | |
| 11B. | A590106 | [1] | WASHER;PLANE | |
| 12. | J460612 | [4] | SCREW;SEMS | |
| 13. | 4190264 | [2] | CLIP | |
| 14. | Y415957 | [1] | HARNESS;WIRE | |
| 100. | 4355574 | [1] | CONTROLLER (QGS) | |
| 101. | Y416178 | [1] | RELAY | |
| 102. | 4419860 | [1] | RELAY | |
| 103. | Y416180 | [1] | RELAY | |
