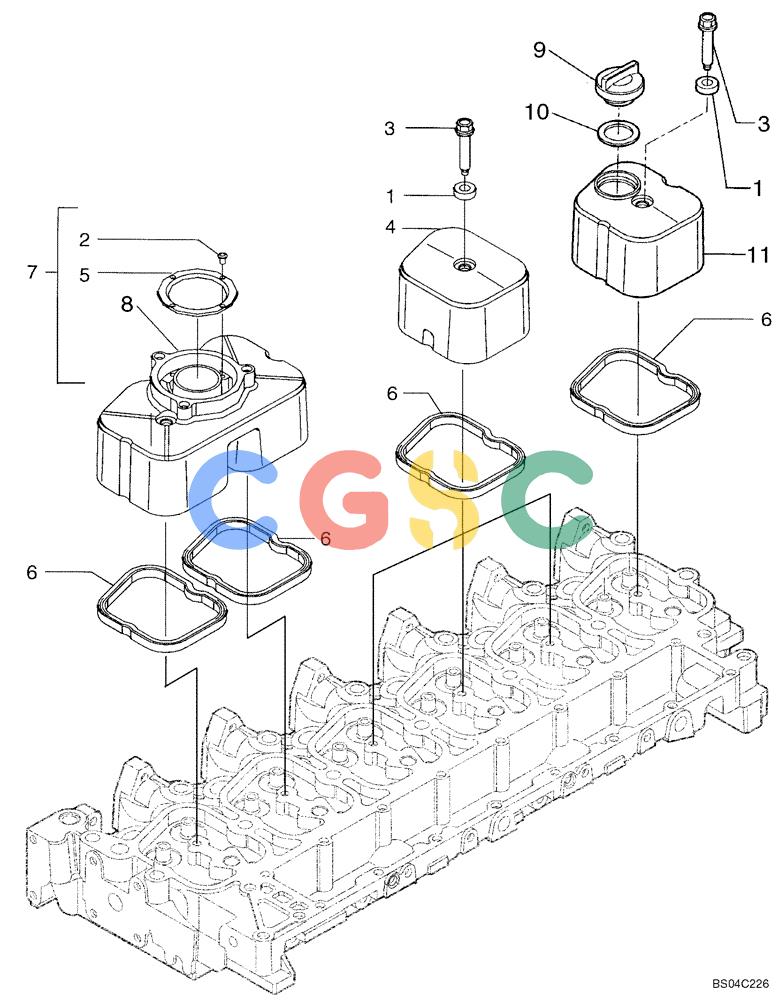

纽荷兰零件查询(DC95) - CRAWLER DOZER (8/04-) (02-19) - CYLINDER HEAD - COVERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
564 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | J935449 | [6] | ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L | CAS |
| 2. | 2830281 | [4] | SELF-TAP SCREW,M2.9 x 6.5 | TOR Superseded by part number: 16784504 |
| 3. | 4895214 | [6] | SCREW,Flng, M8 x 1.25 x 34.549mm, Cl 8.8 | TOR |
| 4. | 2852032 | [3] | VALVE COVER | TOR Superseded by part number: 504065040 |
| 5. | 2830775 | [1] | BAFFLE | TOR |
| 6. | 2852033 | [6] | GASKET,7mm Thk | TOR Superseded by part number: 504053522 |
| 7. | 2830784 | [1] | VALVE COVER | TORIncl. Ref 2, 5, 8 |
| 8. | NSS | [1] | NOT SERVICED SEPARATELY | CONCover |
| 9. | 4895202 | [1] | FILLER CAP | TOR |
| 10. | 4895296 | [1] | SEALING RING,30mm ID x 48mm OD x 3mm Thk | TOR |
| 11. | 2852894 | [1] | VALVE COVER | TOR Superseded by part number: 504065039 |
