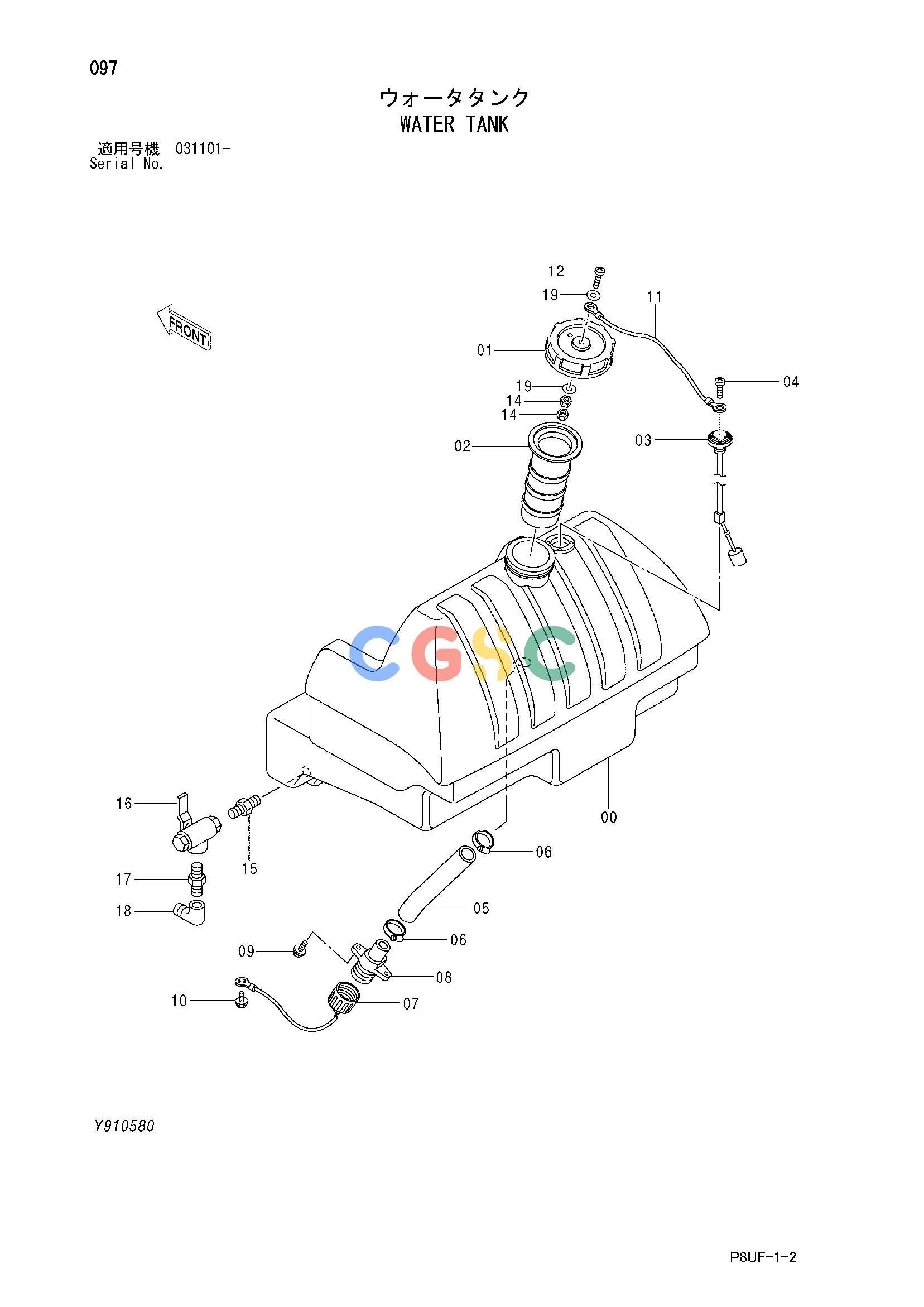

日立零件查询（CC150C-3A）WATER TANK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
814 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y415088 | [1] | TANK;WATER | |
| 01. | Y415050 | [1] | CAP | |
| 02. | Y415450 | [1] | STRAINER | |
| 03. | Y415049 | [1] | GAUGE;LEVEL | |
| 04. | J680616 | [4] | SCREW;SEMS | |
| 05. | Y414994 | [1] | HOSE;WATER | |
| 06. | 4505385 | [2] | CLAMP;HOSE | |
| 07. | Y415089 | [1] | CAP | |
| 08. | Y415090 | [1] | SOCKET | |
| 09. | J260625 | [2] | BOLT;SEMS | |
| 09A. | J900625 | [1] | BOLT | |
| 09B. | A590106 | [1] | WASHER;PLANE | |
| 10. | J271020 | [1] | BOLT;SEMS | |
| 10A. | J901020 | [1] | BOLT | |
| 10B. | J222010 | [1] | WASHER | |
| 11. | Y415977 | [1] | WIRE | |
| 12. | M430625 | [1] | SCREW | |
| 14. | M500605 | [2] | NUT | |
| 15. | J70784 | [1] | ADAPTER | |
| 16. | Y401954 | [1] | VALVE;BALL | |
| 17. | J728483 | [1] | REDUCER | |
| 18. | Y409154 | [1] | FITTING;HOSE | |
| 19. | A590106 | [2] | WASHER;PLANE | |
