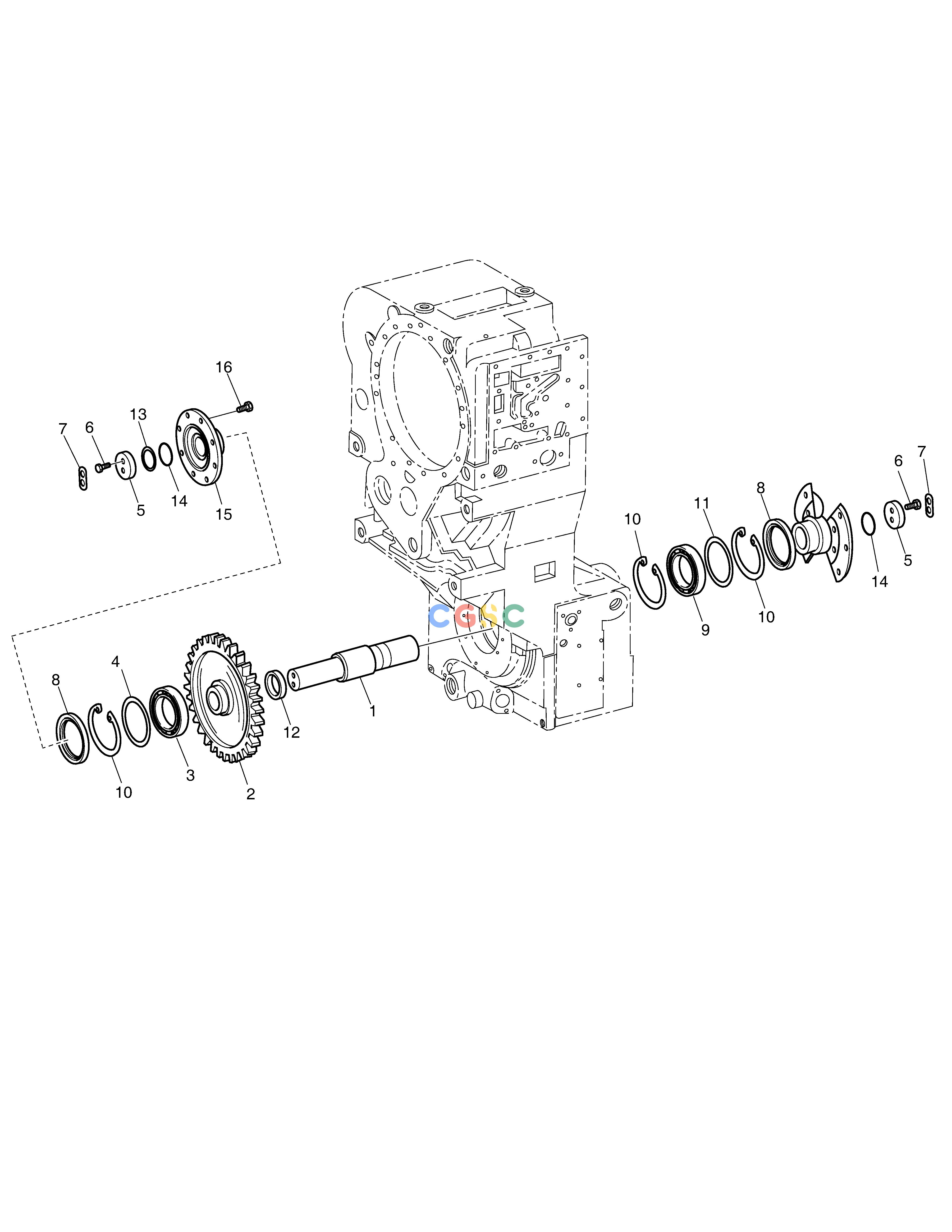

斗山零件查询TRANSMISSION-OUTPUT-ZF T/M SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
253 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
2.405-00160
|
[1] |
|
|
| 10. |
2.115-00287
|
[3] |
RING;RETAINING
|
|
| 11. |
1.114-00010
|
[1] |
|
|
| 11. |
1.114-00149
|
[1] |
|
|
| 11. |
1.114-00150
|
[1] |
|
|
| 11. |
1.114-00151
|
[1] |
SHIM A=1.0
|
|
| 11. |
1.114-00152
|
[1] |
SHIM A=1.1
|
|
| 11. |
1.114-00153
|
[1] |
SHIM A=1.2
|
|
| 11. |
1.114-00154
|
[1] |
SHIM A=1.3
|
|
| 11. |
1.114-00155
|
[1] |
SHIM A=1.4
|
|
| 11. |
1.114-00156
|
[1] |
SHIM A=1.5
|
|
| 11. |
1.114-00157
|
[1] |
SHIM A=1.8
|
|
| 11. |
110947-00357
|
[1] |
|
|
| 11. |
110947-00358
|
[1] |
|
|
| 11. |
110947-00359
|
[1] |
|
|
| 11. |
110947-00360
|
[1] |
|
|
| 11. |
110947-00361
|
[1] |
|
|
| 11. |
110947-00362
|
[1] |
|
|
| 11. |
2.114-00586
|
[1] |
SHIM A=1.6
|
|
| 11. |
2.114-00587
|
[1] |
SHIM A=1.7
|
|
| 12. |
2.140-00001
|
[1] |
|
|
| 13. |
1.114-00382
|
[1] |
|
|
| 13. |
1.114-00383
|
[1] |
|
|
| 14. |
1.180-00079
|
[2] |
O-RING
|
|
| 15. |
430215-00719
|
[1] |
|
|
| 16. |
120705-00892
|
[8] |
|
|
| 2. |
2.403-00165
|
[1] |
|
|
| 3. |
1.109-00071
|
[1] |
|
|
| 4. |
1.114-00010
|
[1] |
|
|
| 5. |
1.114-00269
|
[2] |
WASHER
|
|
| 6. |
2.120-00580
|
[4] |
SCREW
|
|
| 7. |
1.114-00488
|
[2] |
WASHER
|
|
| 8. |
1.180-00533
|
[2] |
SEAL;SHAFT
|
|
| 9. |
1.109-00015
|
[1] |
|
|
