纽荷兰零件查询(DC95) - CRAWLER DOZER (8/04-) (02-27) - PULLEY - CRANKSHAFT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
574 次

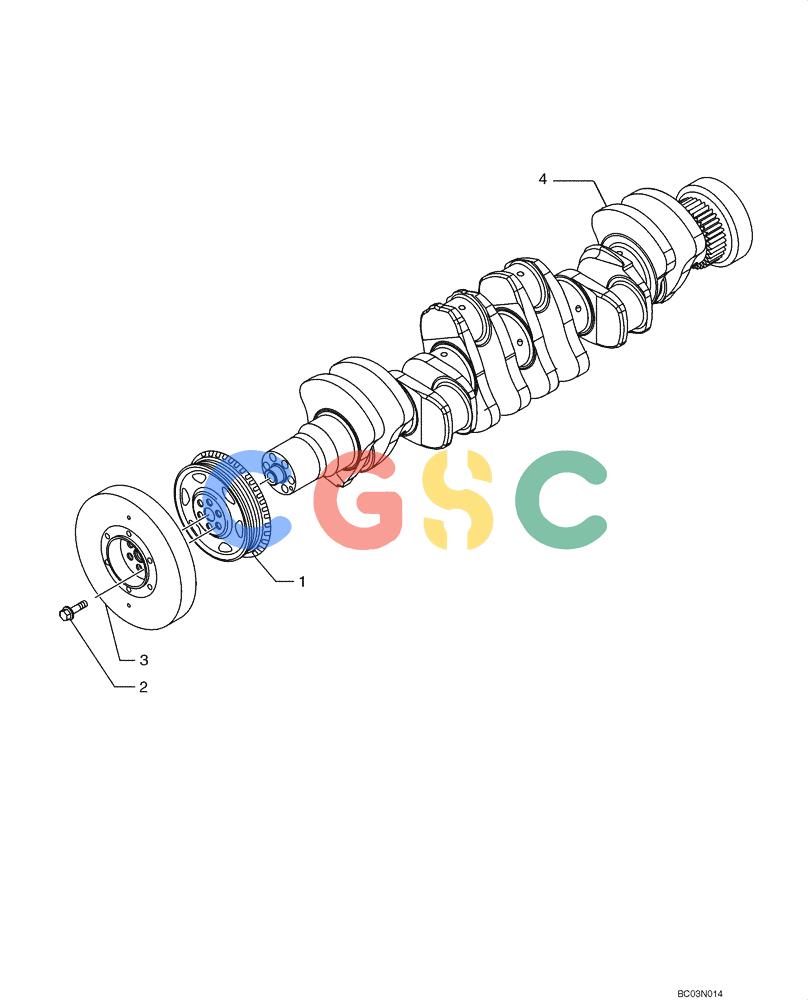

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2853176 | [1] | PULLEY,212mm OD | TOR Superseded by part number: 504035186 |
| 2. | 4892867 | [6] | CAPTIVE WASHER SCREW,Phillips Drive, Oval HD, M12 x 1.25 x 78.5mm, Cl 10.9 | TOR |
| 3. | 4892893 | [1] | DAMPER,250mm OD | TOR |
| 4. | 2852305 | [1] | CRANKSHAFT | TORSee Figure 02-23 Superseded by part number: 504057571, 4899046 |
| . . | 2852305C | [1] | CORE-CRANKSHAFT | MKTReturn Number, CRANKSHAFT - for N.A. Only |
