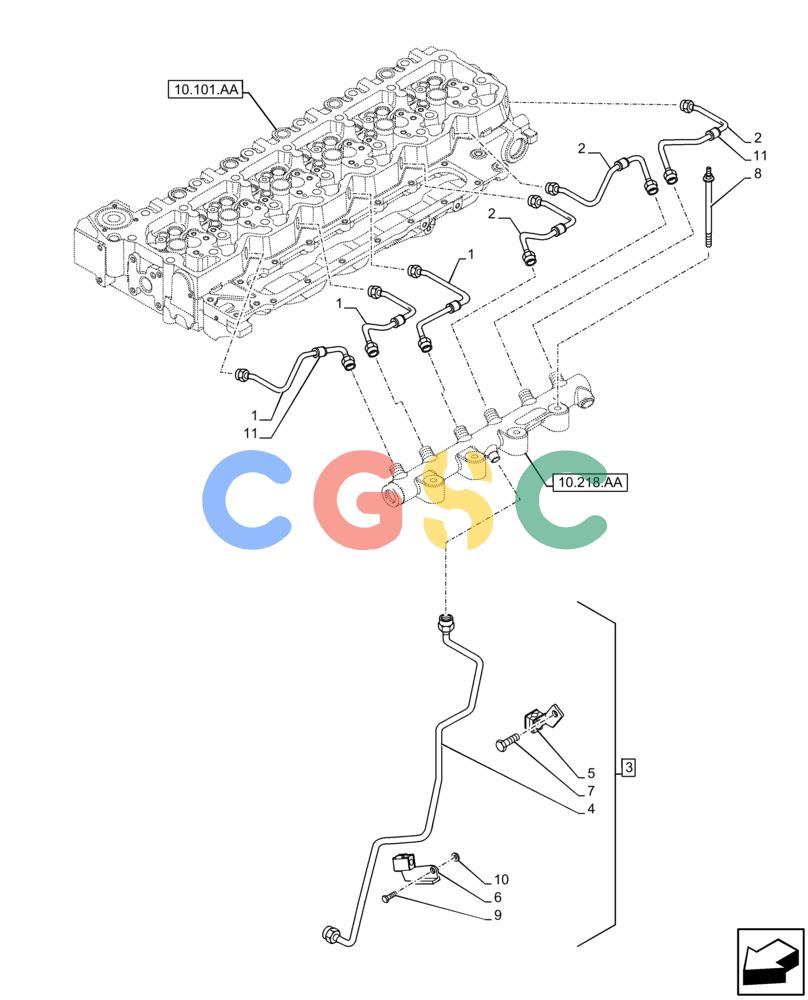

神钢零件查询(F4HFE6136 B003) - ENGINE 5801939277 47603479 SPRAYER PATRIOT 2250 T4B (7/15-) (10.218.AI[01]) - INJECTION PIPE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
225 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2857017 | [3] | PIPE | TOR Superseded by part number: |
| 2. | 2857046 | [3] | PIPE | TOR Superseded by part number: |
| 3. | 2857048 | [1] | PIPE | TORASSY, Incl 4 - 7, 10 Superseded by part number: |
| 5. | 2854556 | [2] | CLAMP BRACKET | TOR |
| 5. | 2854558 | [2] | RUBBER SEAL | TOR |
| 6. | 2854557 | [2] | CLAMP BRACKET | TOR |
| 6. | 2854555 | [1] | CLAMP BRACKET | TOR |
| 6. | 2855127 | [1] | CLAMP BRACKET | TOR |
| 7. | 2854559 | [2] | SCREW | TOR Superseded by part number: |
| 8. | 2853537 | [4] | BOLT,Hex Flange Head Cap M8 x 1.25 x 125mm | TOR Superseded by part number: 504053874 |
| 9. | 4896884 | [1] | BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9 | TOR |
| 9. | 4899020 | [1] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TOR Superseded by part number: 16673635 |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONIncl in 3 |
| 11. | 2854548 | [1] | SILENTBLOC | TORIsolator vibration |
