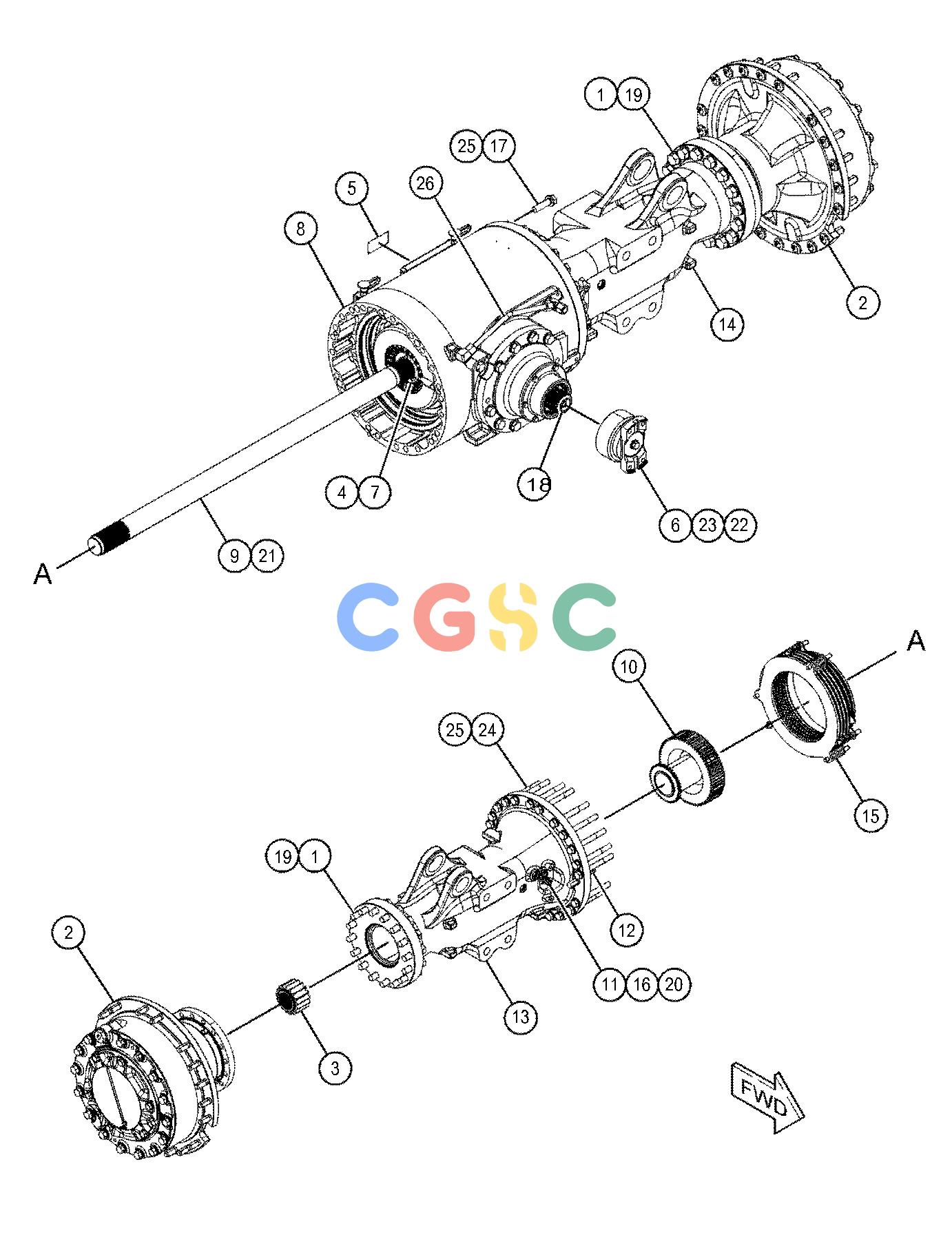

卡特零件查询（725C2） 415-6365: AXLE GP-FRONT
广数供应链运营团队, 15 02月, 2025，浏览：
464 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1D-4608 | [32] | BOLT(3/4-10X2.75-IN) | |
| 2. | 415-6360Y | [2] | WHEEL & FINAL DRIVE GP | |
| 3. | 8K-6282 | [2] | GEAR-SUN(17-TEETH) | |
| 4. | 127-1960M | [6] | SCREW-FLAT HEAD(M6X1X16-MM) | |
| 5. | 109-8895 | [1] | PLATE-IDENTIFICATION(LOGGING SKID) | |
| 6. | 308-6004 | [1] | YOKE AS | |
| | 7V-3791 | [1] | GUARD | |
| 7. | 390-3138 | [2] | WASHER-THRUST | |
| 8. | 493-2481Y | [1] | DIFFERENTIAL & BEVEL GEAR GP | |
| 9. | 415-6368 | [2] | SHAFT-AXLE | |
| 10. | 416-0630 | [2] | HUB AS | |
| | | | (EACH INCLUDES) |
| | 333-4636 | [1] | GEAR-SENSOR(40-TEETH) | |
| | 420-5705 | [1] | SHAFT-GEAR | |
| | 484-0135 | [1] | HUB | |
| 11. | 419-4942 | [2] | SENSOR GP-SPEED | |
| 12. | 420-2911 | [2] | INDICATOR(FRONT AXLE) | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6H-9691 | [1] | SEAL-O-RING | |
| | 6V-8399 | [1] | SEAL-O-RING | |
| 13. | 420-3680 | [1] | HOUSING-AXLE | |
| 14. | 420-3681 | [1] | HOUSING-AXLE | |
| 15. | 491-3153Y | [2] | BRAKE GP-SERVICE | |
| 16. | 203-3940 | [2] | SEAL-O-RING | |
| 17. | 202-6473M | [23] | BOLT(M16X2X60-MM) | |
| 18. | 4F-7391 | [1] | SEAL-O-RING | |
| 19. | 5P-8248 | [32] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 20. | 6V-8210M | [2] | BOLT(M8X1.25X16-MM) | |
| 21. | 8K-6464 | [2] | RING-RETAINING | |
| 22. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 23. | 8T-6868M | [1] | BOLT(M12X1.75X80-MM) | |
| 24. | 9X-6491M | [23] | BOLT(M16X2X150-MM) | |
| 25. | 9X-8268 | [46] | WASHER(17.5X30X3.5-MM THK) | |
| 26. | 481-1107Y | [1] | LINES GP-SERVICE BRAKE | |
| | | | |
| | 1U-8846BF | | SEALANT-GASKET | |
| | B | | USE AS REQUIRED |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
