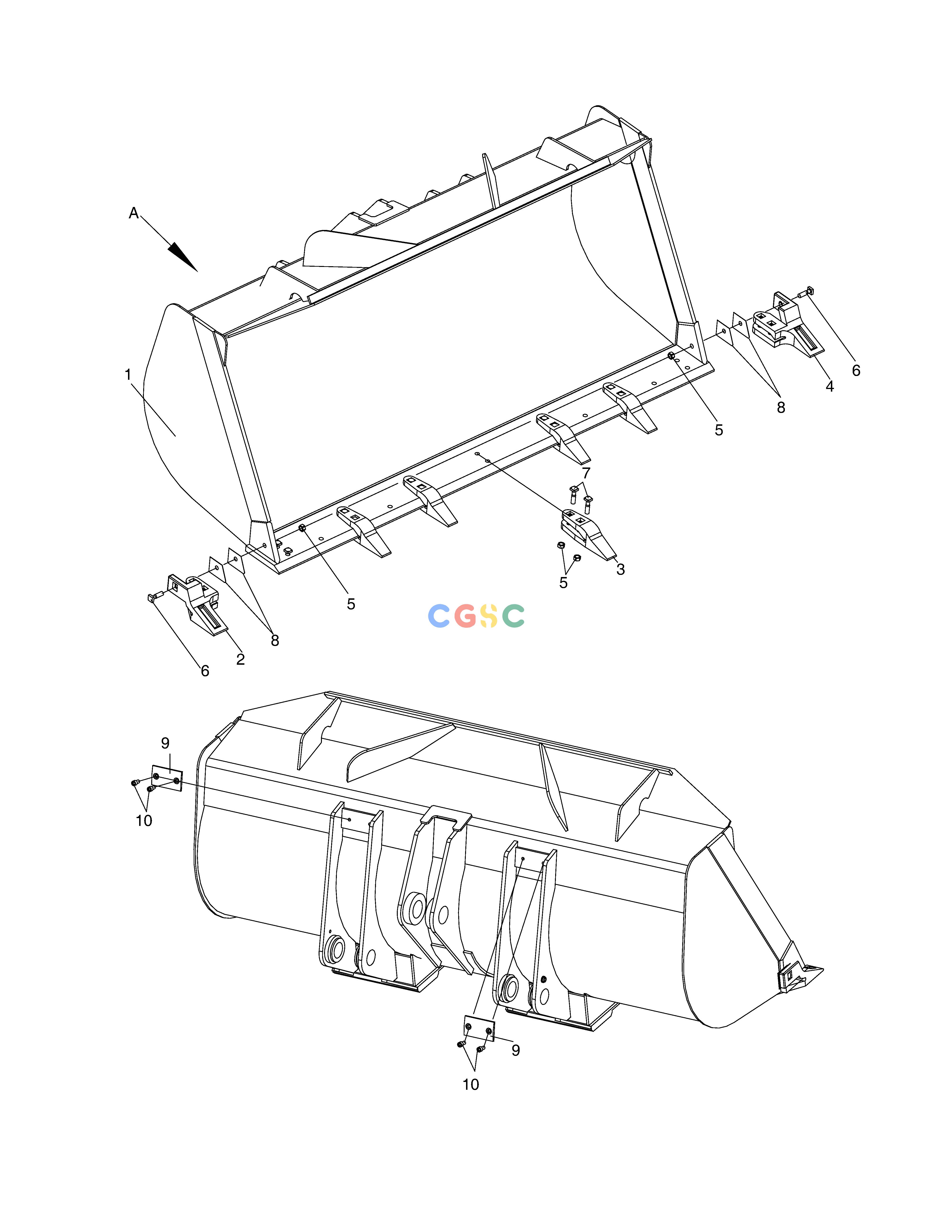

斗山零件查询BUCKET ASS'Y - 3.0m3 SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
270 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230104-00416B
|
[1] |
BUCKET ASSY
|
230104-00416C
|
| -. |
230104-00416C
|
[1] |
BUCKET ASS´Y - 3.0m³
|
|
| 1. |
230104-00417B
|
[1] |
BUCKET
|
|
| 1. |
230104-00417C
|
[1] |
BUCKET
|
|
| 10. |
S2221063
|
[4] |
BOLT,SOCKET
|
|
| 2. |
K1040465A
|
[1] |
TOOTH;SIDE(R.H)
|
|
| 3. |
K1040464A
|
[5] |
TOOTH
|
|
| 4. |
K1040466A
|
[1] |
TOOTH;SIDE(L.H)
|
|
| 5. |
S4013133
|
[16] |
NUT
|
|
| 6. |
K1041947
|
[2] |
BOLT
|
|
| 7. |
K1047626
|
[14] |
BOLT
|
|
| 8. |
K1047636
|
[4] |
SHIM
|
|
| 9. |
250201-00809
|
[2] |
PLATE
|
|
