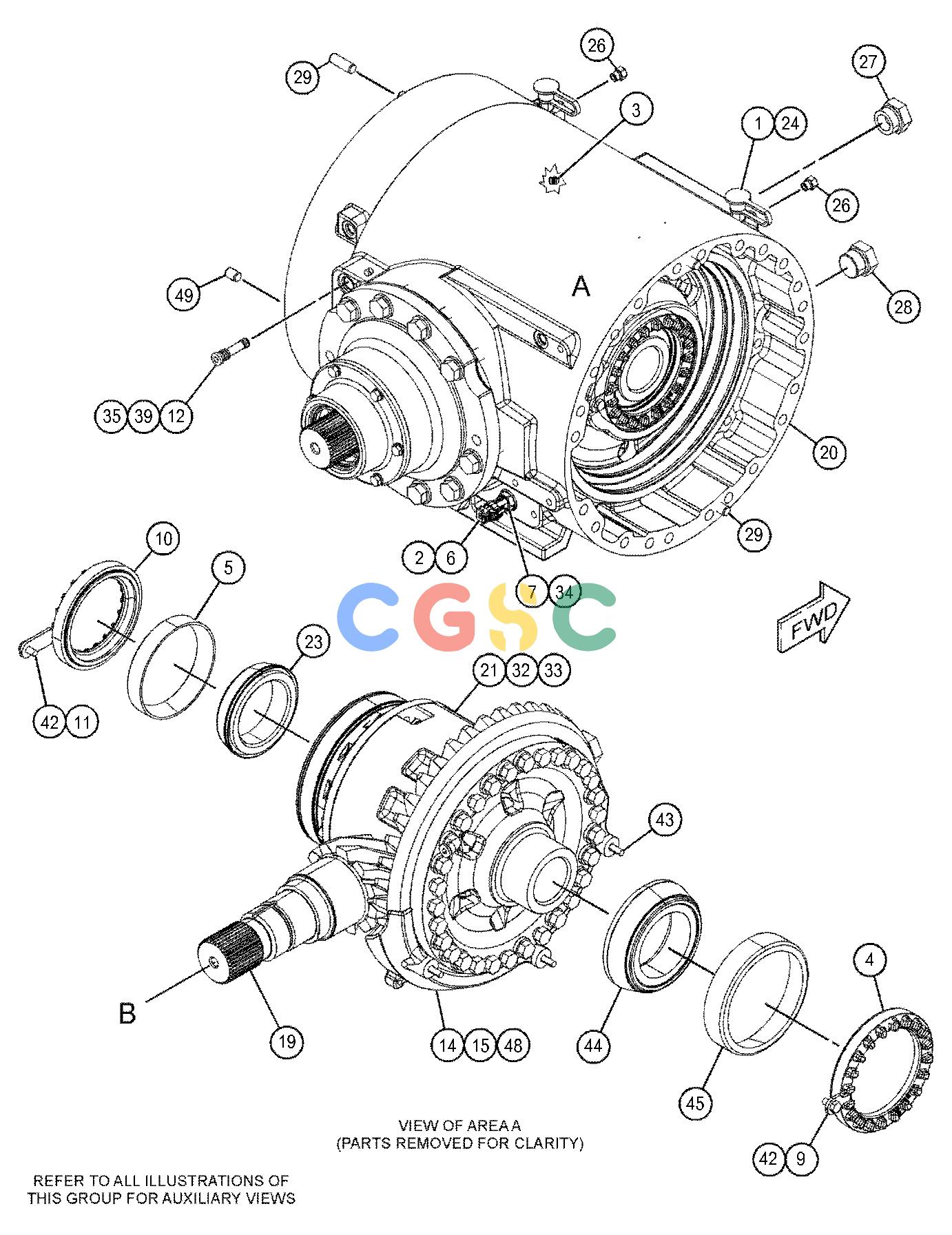

卡特零件查询（725C2） 493-2481: DIFFERENTIAL & BEVEL GEAR GP
广数供应链运营团队, 15 02月, 2025，浏览：
532 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [2] | CAP-DUST | |
| 2. | 8T-8737 | [2] | PLUG-SEAL | |
| 3. | 9G-9506 | [2] | PLUG | |
| 4. | 9U-3045 | [1] | NUT-BEARING | |
| 5. | 030-0060 | [1] | CUP-BEARING | |
| 6. | 230-4011 | [1] | PLUG AS-CONNECTOR(2-PIN) | |
| | 455-0704 | [1] | SEAL-CONNECTOR | |
| 7. | 256-6453 | [1] | SENSOR-TEMPERATURE(2-PIN)(DIFFERENTIAL OIL) | |
| 8. | 486-5000 | [1] | NUT | |
| 9. | 297-3211 | [1] | LOCK-BEARING | |
| 10. | 304-3750 | [1] | NUT-ADJUSTING | |
| 11. | 314-3412 | [1] | LOCK-BEARING | |
| 12. | 351-2548 | [1] | TUBE | |
| 13. | 385-1770 | [1] | HOUSING | |
| 14. | 417-0609 | [1] | SHROUD | |
| 15. | 417-0613 | [1] | SHROUD | |
| 16. | 388-4917 | [1] | SHIM PACK(INCLUDES 11-SHIMS) | |
| 19. | 486-4949 | [1] | GEAR SET-BEVEL | |
| 20. | 488-3748 | [1] | HOUSING AS | |
| | 095-0673M | [4] | BOLT-SOCKET HEAD(M12X1.75X60-MM) | |
| 21. | 392-1740Y | [1] | DIFFERENTIAL GP | |
| 22. | 502-5467 | [1] | RETAINER-SEAL | |
| 23. | 030-0061 | [1] | CONE-BEARING | |
| 24. | 110-6349 | [2] | FITTING AS(QUICK DISCONNECT) | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| 25. | 123-4003 | [1] | SEAL-LIP TYPE | |
| 26. | 155-3624 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 9S-4182 | [1] | PLUG(7/16-20-THD) | |
| 27. | 164-4180 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 9S-4181 | [1] | PLUG(1-5/16-12-THD) | |
| 28. | 165-4929 | [1] | PLUG AS-MAGNETIC(DIFFERENTIAL) | |
| | 5P-4484 | [1] | PLUG-MAGNETIC(DIFFERENTIAL) | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 29. | 117-1801 | [4] | DOWEL | |
| 30. | 1J-2860 | [1] | CUP-BEARING | |
| 31. | 1J-4757 | [1] | CONE-BEARING | |
| 32. | 287-8326 | [30] | BOLT(1/2-20X1.625-IN) | |
| 33. | 2M-0849 | [30] | WASHER-HARD(13.5X25.5X5-MM THK) | |
| 34. | 3K-0360 | [1] | SEAL-O-RING | |
| 35. | 4J-2506 | [1] | SEAL-O-RING | |
| 36. | 4K-6804 | [1] | SEAL-O-RING | |
| 37. | 5L-2031 | [1] | CUP-BEARING | |
| 38. | 5P-8247 | [10] | WASHER-HARD(17X32X3.5-MM THK) | |
| 39. | 6F-5559 | [1] | SEAL-O-RING | |
| 40. | 6V-3950 | [1] | CONE-BEARING | |
| 41. | 6V-5686M | [10] | BOLT(M16X2X50-MM) | |
| 42. | 6V-8210M | [2] | BOLT(M8X1.25X16-MM) | |
| 43. | 6V-8337M | [3] | BOLT-SOCKET HEAD(M8X1.25X35-MM) | |
| 44. | 6Y-2539 | [1] | CONE-BEARING | |
| 45. | 6Y-2540 | [1] | CUP-BEARING | |
| 46. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 47. | 8T-4908M | [6] | BOLT(M8X1.25X25-MM) | |
| 48. | 8T-5091M | [3] | BOLT(M8X1.25X20-MM) | |
| 49. | 9C-6041 | [1] | DOWEL | |
| 50. | 5L-4753 | [1] | RING-RETAINING | |
| 51. | 485-9742 | [1] | WASHER | |
| 52. | 485-9743 | [1] | WASHER-LOCK | |
| | | | |
| | 1U-8846BF | | SEALANT-GASKET | |
| | B | | USE AS REQUIRED |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
