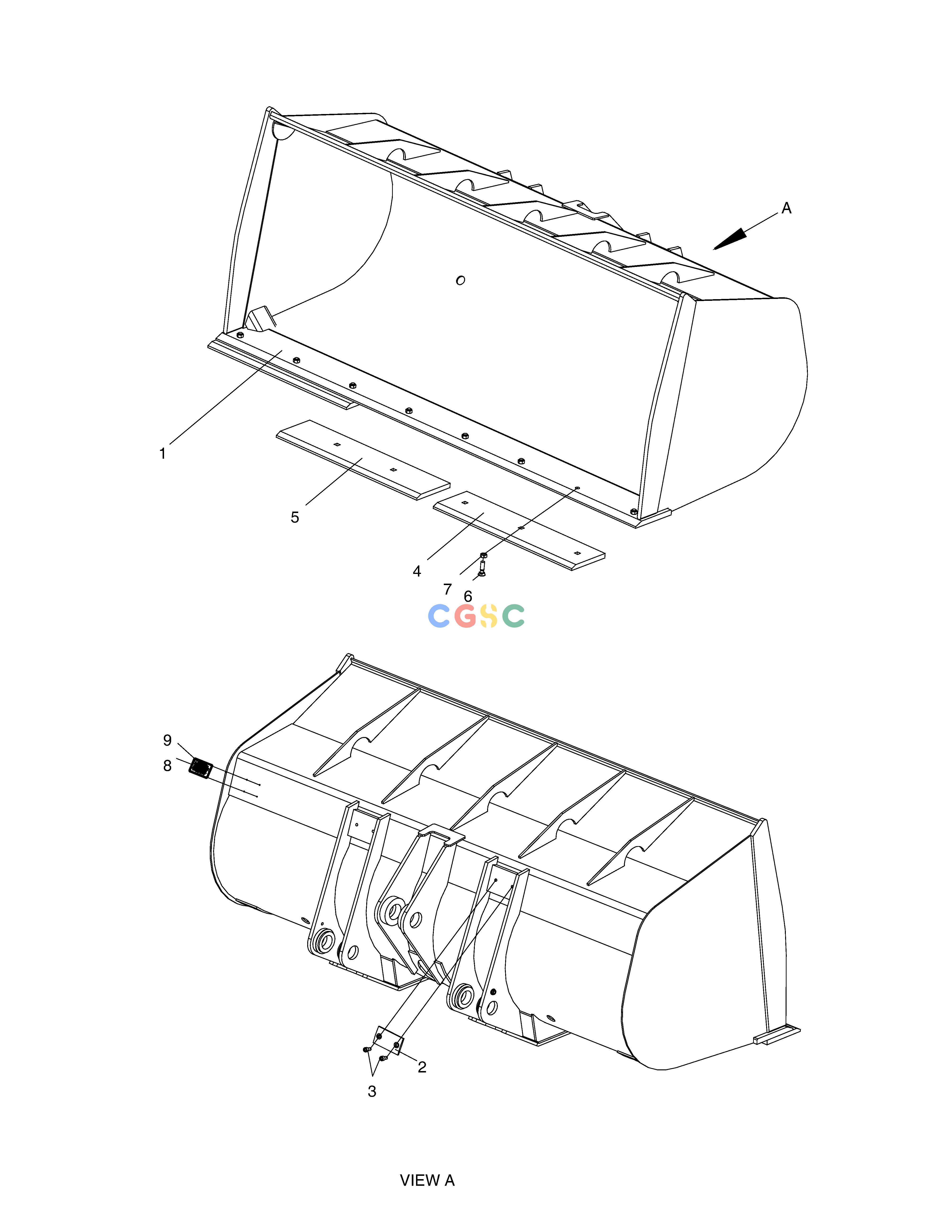

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 230104-01924 | [1] | BUCKET ASSY;4.2 M3 | 230104-01924A |
| -. | 230104-01924A | [1] | BUCKET ASSY;42C | |
| 1. | 230104-01925 | [1] | BUCKET;4.2 M3 | |
| 1. | 230104-01925A | [1] | BUCKET;4.2 M3 | |
| 2. | 250201-00809 | [2] | PLATE | |
| 3. | S2221063 | [4] | BOLT,SOCKET | |
| 4. | 250201-03233 | [2] | ||
| 5. | 250201-03234 | [1] | ||
| 6. | K1041947 | [8] | BOLT | |
| 7. | S4013133 | [16] | NUT | |
| 8. | 2122-1002D2 | [4] | RIVET | |
| 9. | 950209-00422A | [1] | PLATE,NAME |
