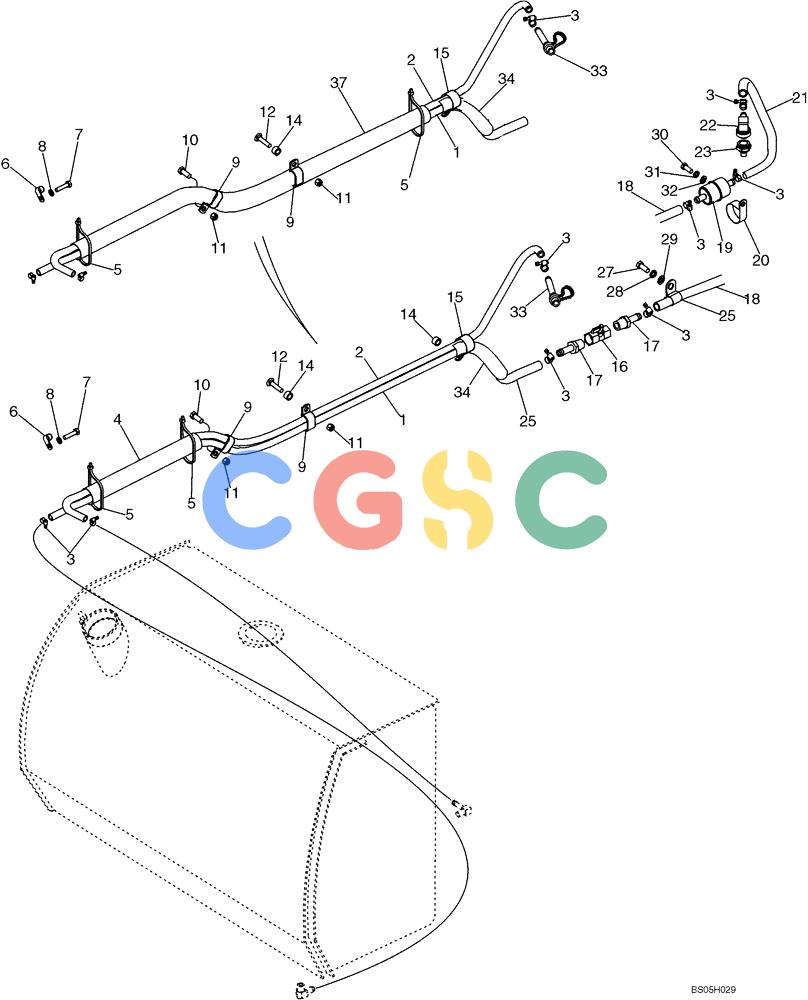

| 1. | 87443909 | [1] | FUEL HOSE,12.70 mm ID x 1950.00 mm, SAE 30R2 or SAE 30R7 | BUR1950 mm (76-3/4 in); Supply; Cut From S118466X |
| 2. | 87443911 | [1] | FUEL HOSE,9.53 mm ID x 2270.00 mm, SAE 30R2 or SAE 30R7 | BURReturn; Cut From S118400X |
| 3. | 214-1708 | [8] | HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm | CAS1/2 - 29/32 Superseded by part number: 86625040 |
| 4. | 86983902 | [1] | SLEEVE | BUR450 mm (17-23/32 in), No Longer Used, Replaced With 87340827, Ref 37 |
| 5. | L18331 | [1] | CABLE TIE,375.9mm L | CAS15" Superseded by part number: 529070 |
| 6. | 515-23159 | [1] | CLAMP,5/8", Insul, 3/8" Bolt | CAS Superseded by part number: 86594406 |
| 7. | 614-10040 | [1] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd | CAS Superseded by part number: 120112 |
| 8. | 140028 | [1] | WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk | NH |
| 9. | H434289 | [2] | MOUNTING CLIP | CAS |
| 10. | 814-12045 | [1] | BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8 | CAS Superseded by part number: 9628065 |
| 11. | 832-10410 | [2] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 12. | 711-10050 | [1] | CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8 | CASSpecial, M10 x 50 Superseded by part number: 86512426 |
| 14. | M42296 | [1-2] | SPACER,1/2" X-Strng Pipe x 1/2" | IH1/2 |
| 15. | 515-24349 | [1] | CLAMP,1 3/8", Insul, 7/16" Bolt | CASIf Used Superseded by part number: 86639002 |
| 16. | 86984713 | [1] | SHUT-OFF VALVE | BURBrass |
| 17. | 217-168 | [2] | FITTING,1/2" Hose X 1/4" NPTF Beaded | BRR1/2 stem x 1/2 PT |
| 18. | 87443906 | [1] | FUEL HOSE,12.70 mm ID x 305.00 mm, SAE 30R2 or SAE 30R7 | BURSupply; Cut From S118466X |
| 19. | 87400496 | [1] | FILTER | RACFuel, In-Line Superseded by part number: 84278141 |
| 20. | 515-25444 | [1] | CLAMP,1 3/4", Insul, 7/16" Bolt | CAS Superseded by part number: 86639007 |
| 21. | 87443907 | [1] | FUEL HOSE,12.70 mm ID x 450.00 mm, SAE 30R2 or SAE 30R7 | BURSupply; Cut From S118466X |
| 22. | 87442270 | [1] | FITTING | BURIncludes 87445405 O-Ring |
| 23. | 8602557 | [1] | FITTING | BURFITTING, Replaces 87408919 |
| 25. | 515-25190 | [1-2] | CLAMP,3/4", Insul, 1/2" Bolt | CAS Superseded by part number: 70927104 |
| 27. | 614-12025 | [1] | BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd | IH Superseded by part number: 300388 |
| 28. | 892-11012 | [1] | LOCK WASHER,M12 | CAS Superseded by part number: 412123 |
| 29. | 895-15012 | [1] | WASHER,M12 x 28 x 2.5 | IH13.5 x 28 x 2.5 mm Superseded by part number: 86625254 |
| 30. | 614-8020 | [1] | BOLT,Hex, M8 x 1.25 x 20mm | CAS Superseded by part number: 120104 |
| 31. | 87016617 | [1] | LOCK WASHER,M8 | RAC Superseded by part number: 83990583 |
| 32. | 895-15008 | [1] | WASHER,M8 x 20 x 1.6 | CAS Superseded by part number: 86625263 |
| 33. | 87408919 | [1] | FITTING | FAR |
| 34. | 87310535 | [1] | SLEEVE | BURSLEEVE; 200 mm |
| 35. | 87331721 | [1] | SLEEVE | BUR635 mm, No Longer Used, Not Illustrated; Replaced With 87340827 Sleeve, REF 37 |
| 36. | 87331727 | [1] | SLEEVE | BUR305 mm, No Longer Used, Not Illustrated; Replaced With 87340827 Sleeve, REF 37 |
| 37. | 87340827 | [1] | SLEEVE | BUR1350 mm |
