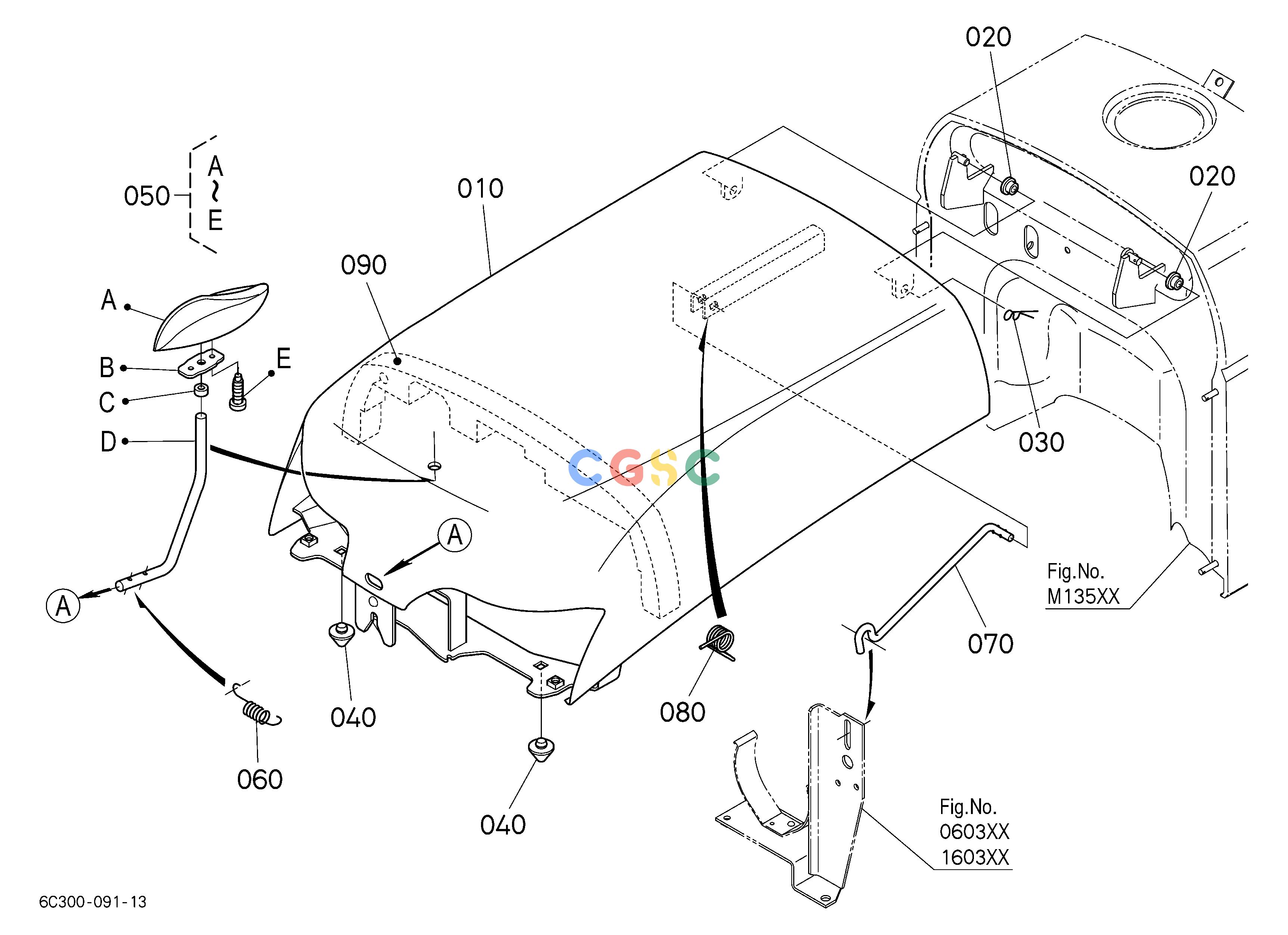

久保田零件查询M10502 HOOD (BONNET) UPPER ## S.No.>=52878 S.No.;>=52878 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
719 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C30054103
|
[1] |
COMP.BONNET
|
11.4400(lbs); 5.200
|
| 010. |
6C30054105
|
[1] |
COMP.BONNET
|
11.4400(lbs); 5.200
|
| 020. |
6A10054192
|
[2] |
BUSH
|
0.0022(lbs); 0.001
|
| 030. |
0552550800
|
[1] |
SNAP PIN
|
0.0022(lbs); 0.001
|
| 040. |
6C09054162
|
[2] |
CUSHION
|
0.0286(lbs); 0.013
|
| 050. |
6A83054120
|
[1] |
COMP.HANDLE,MASCOT
|
0.2640(lbs); 0.120
|
| 060. |
6C04054150
|
[1] |
SPRING
|
0.0132(lbs); 0.006
|
| 070. |
6C30054253
|
[1] |
ROD,BONNET
|
0.2420(lbs); 0.110
|
| 080. |
6C30054510
|
[1] |
SPRING
|
0.0176(lbs); 0.008
|
| 090. |
6C30054462
|
[1] |
TAPE,BONNET
|
0.1100(lbs); 0.050
|
